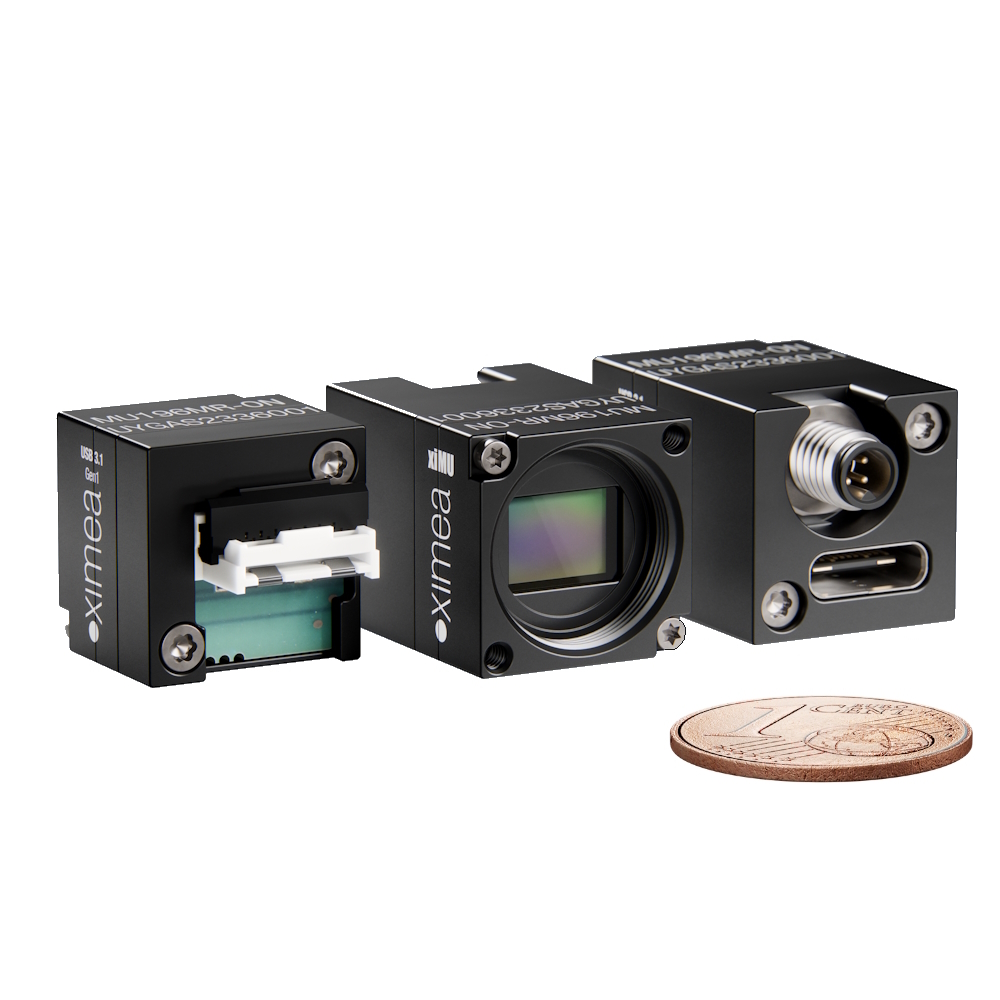

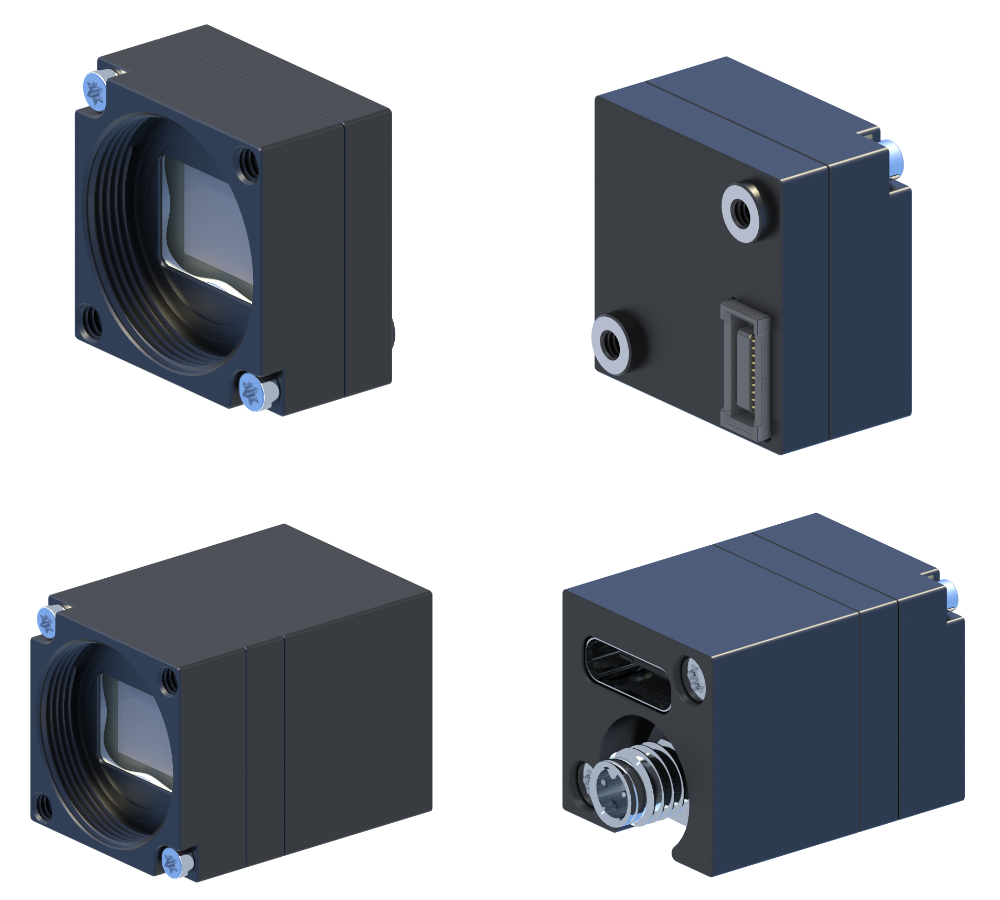

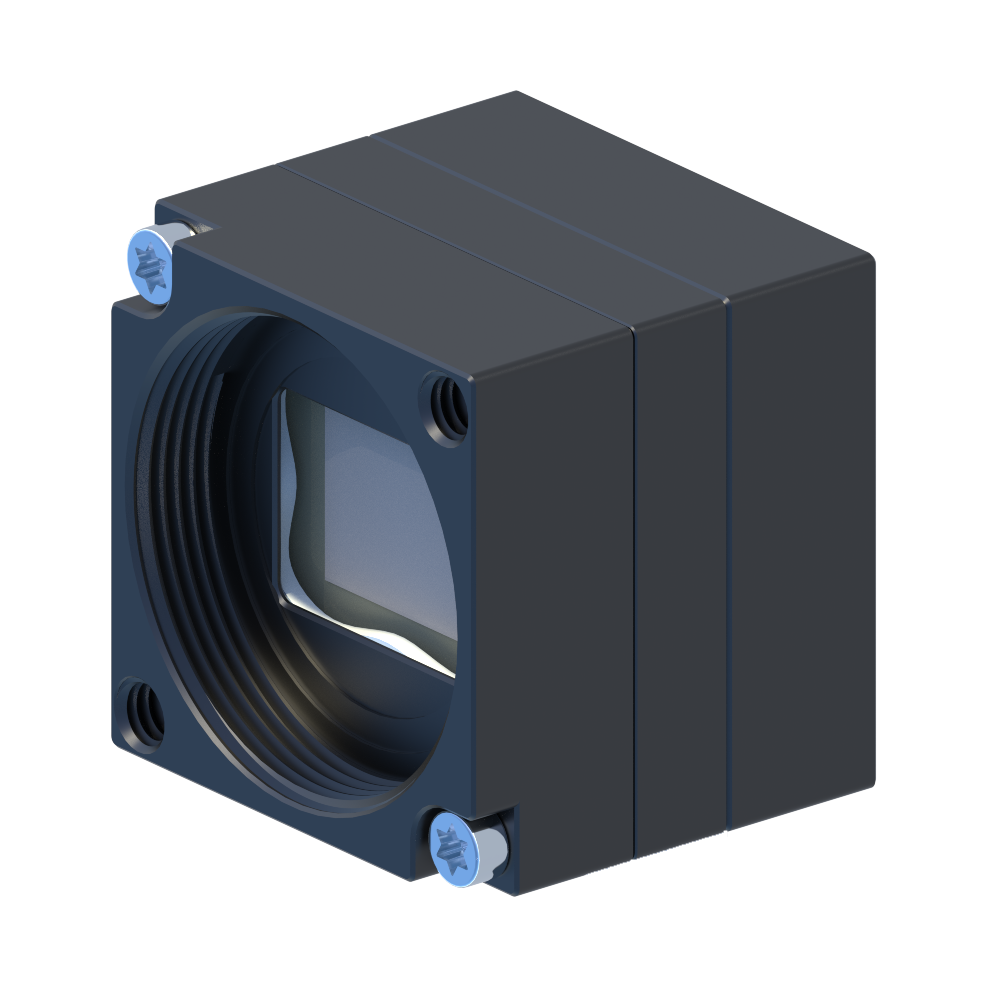

XIMEA XIMU CAMERA FAMILY
| Sensor | SONY IMX675 |
| Mono/Color | Color |
| Resolution | 5.0 MP |
| Size (H×V) | 2592 px × 1960 px |
| Interface | USB3 Type-C |
| Sensor Format | 1/2.8" |
| Pixel Size | 2.0 µm × 2.0 µm |
| Frame Rate | 30 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MU050CR-SY |
| Product Family | XIMU CAMERA FAMILY |
| Product Line | XIMU |
| Camera Category | Area Scan |
| Sensor Vendor | SONY |
| Sensor | IMX675 |
| Shutter | Rolling shutter |
| Sensor Format | 1/2.8" |
| Sensor Diagonal | 6.5mm |
| Sensor Type | CMOS |
| Sensor Size | 5.2 x 3.9 mm |
| Resolution (H×V) | 2592 px × 1960 px |
| Resolution | 5.0 MP |
| Pixel Size (H×V) | 2.0 µm × 2.0 µm |
| Frame rate | 30 fps |
| Exposure Time | 15 µs to 19 s |
| Mono/Color | Color |
| Spectrum | Visible |
| Quantum Efficiency | 0 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 9940.9 ke¯ |
| Dynamic Range | 67.4 dB |
| Signal-to-Noise Ratio | 40.2 dB |
| Interface | USB3 Type-C |
| Image Data Interface | USB3 Type-C |
| Pixel Bit Depth | 10, 12 bits |
| Synchronization | |
| Exposure Control | Hardware trigger input software trigger exposure active frame active trigger ready exposure active pulse busy |
| Digital Input | 4 |
| Digital Output | 4 |
| Power Supply | 0.75 Watt |
| Power Requirements | 0.75 W |
| Housing Type | Standard housing |
| Housing Size | 15.0 mm × 15.0 mm × 9.0 mm |
| Weight | 3.3 g |
| Lens Mount | S-mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS WEEE GenICam/GenTL Universal Serial Bus Specification |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MU050CR-SY |
