Show technical details of the camera.

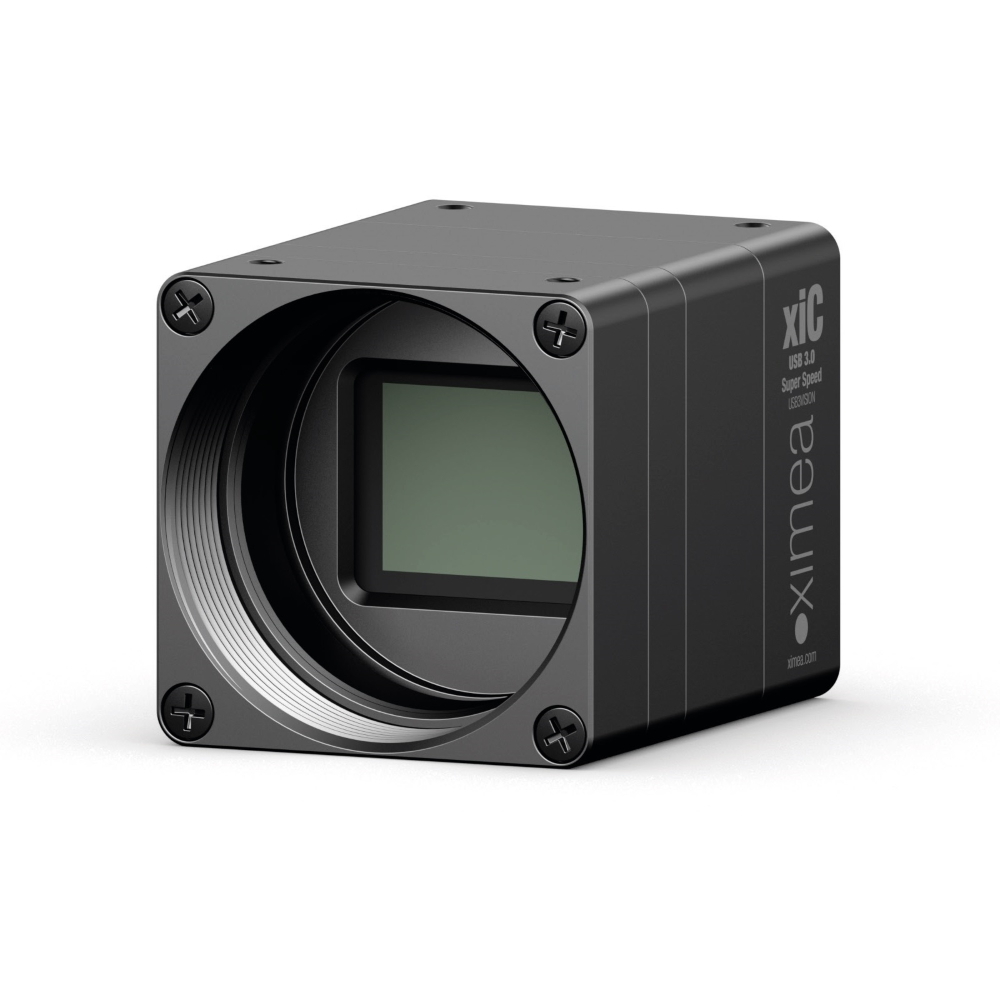

XIMEA XIC CAMERA FAMILY
| Sensor | SONY IMX537 |
| Mono/Color | Mono |
| Resolution | 5.1 MP |
| Size (H×V) | 2472 px × 2064 px |
| Interface | USB3 Micro-B |
| Sensor Format | 1/1.8" |
| Pixel Size | 2.74 µm × 2.74 µm |
| Frame Rate | 69 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MC051MG-SY-PG4-HDR |
| Product Family | XIC CAMERA FAMILY |
| Product Line | XIC |
| Camera Category | Area Scan |
| Sensor Vendor | SONY |
| Sensor | IMX537 |
| Shutter | Global shutter |
| Sensor Format | 1/1.8" |
| Sensor Diagonal | 8.8mm |
| Sensor Type | CMOS |
| Sensor Size | 6.8 x 5.7 mm |
| Resolution (H×V) | 2472 px × 2064 px |
| Resolution | 5.1 MP |
| Pixel Size (H×V) | 2.74 µm × 2.74 µm |
| Frame rate | 69 fps |
| Exposure Time | 9 µs to 30 s |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 0 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 0 ke¯ |
| Dynamic Range | 0.0 dB |
| Signal-to-Noise Ratio | 0 dB |
| Interface | USB3 Micro-B |
| Image Data Interface | USB3 Micro-B |
| Pixel Bit Depth | 8, 10, 12 bits |
| Synchronization | |
| Exposure Control | Hardware trigger input software trigger exposure strobe output busy output |
| Digital Input | 3 |
| Digital Output | 3 |
| Power Supply | 2.7 Watt |
| Power Requirements | 2.7 W |
| Housing Type | Standard housing |
| Housing Size | 26.4 mm × 26.4 mm × 42.14 mm |
| Weight | 35.9 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL USB 3.0 SuperSpeed USB3 Vision Compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MC051MG-SY-PG4-HDR |
| Others |
