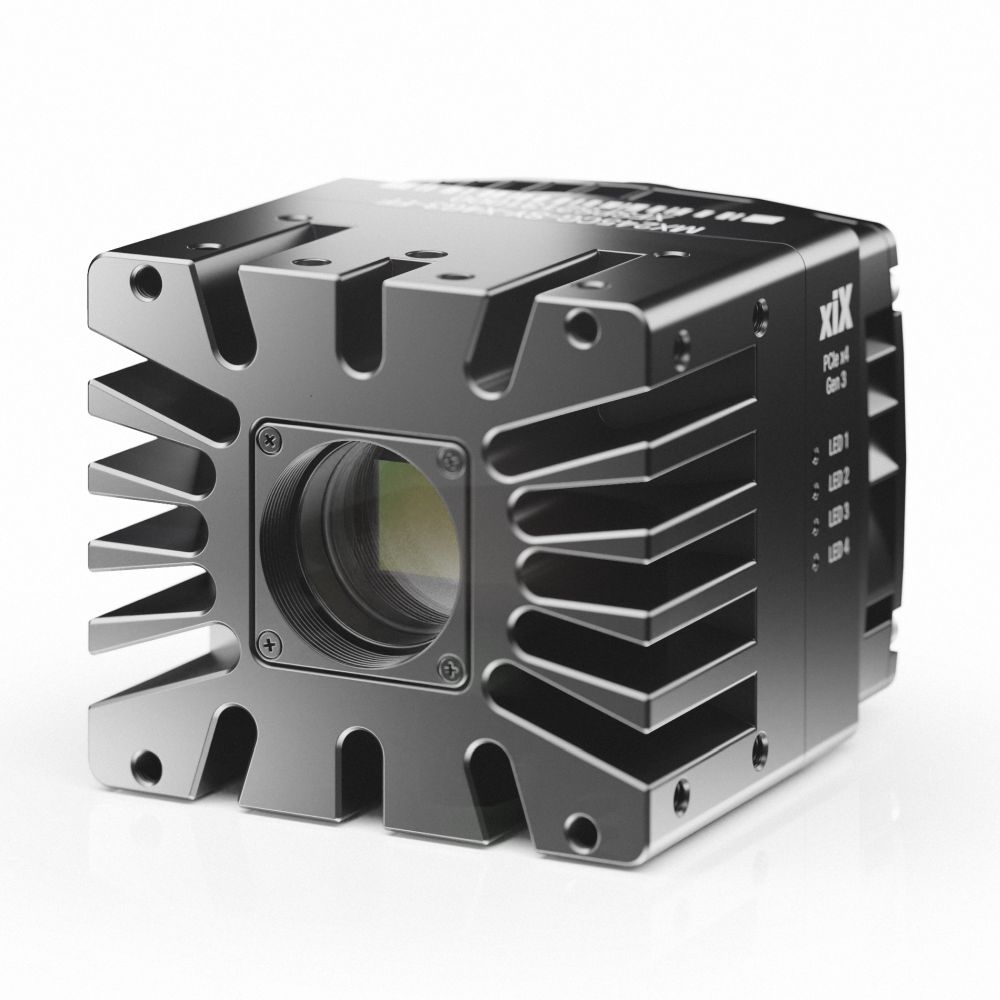

XIMEA XIX-XTREME CAMERA FAMILY
| Sensor | SONY IMX531 |
| Mono/Color | Color |
| Resolution | 20.3 MP |
| Size (H×V) | 4512 px × 4512 px |
| Interface | PCIe-FireFly-X4G3 |
| Sensor Format | 1.1" |
| Pixel Size | 2.74 µm × 2.74 µm |
| Frame Rate | 110 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MX203CG-SY-X4G3-FF |
| Product Family | XIX-XTREME CAMERA FAMILY |
| Product Line | XIX-XTREME |
| Camera Category | Area Scan |
| Sensor Vendor | SONY |
| Sensor | IMX531 |
| Shutter | Global shutter |
| Sensor Format | 1.1" |
| Sensor Diagonal | 17.5mm |
| Sensor Type | CMOS |
| Sensor Size | 12 x 12 mm |
| Resolution (H×V) | 4512 px × 4512 px |
| Resolution | 20.3 MP |
| Pixel Size (H×V) | 2.74 µm × 2.74 µm |
| Frame rate | 110 fps |
| Exposure Time | 5 µs to 30 s |
| Mono/Color | Color |
| Spectrum | Visible |
| Quantum Efficiency | 63 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 9320 ke¯ |
| Dynamic Range | 72.7 dB |
| Signal-to-Noise Ratio | 39.96 dB |
| Interface | PCIe-FireFly-X4G3 |
| Image Data Interface | PCIe-FireFly-X4G3 |
| Pixel Bit Depth | 8, 10, 12 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 6 |
| Digital Output | 6 |
| Power Supply | 14.3 Watt |
| Power Requirements | 14.3 W |
| Housing Type | Standard housing |
| Housing Size | 70 mm × 60 mm × 55 mm |
| Weight | 395 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL PCI Express External Cabling Specifications compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MX203CG-SY-X4G3-FF |
| Others |
