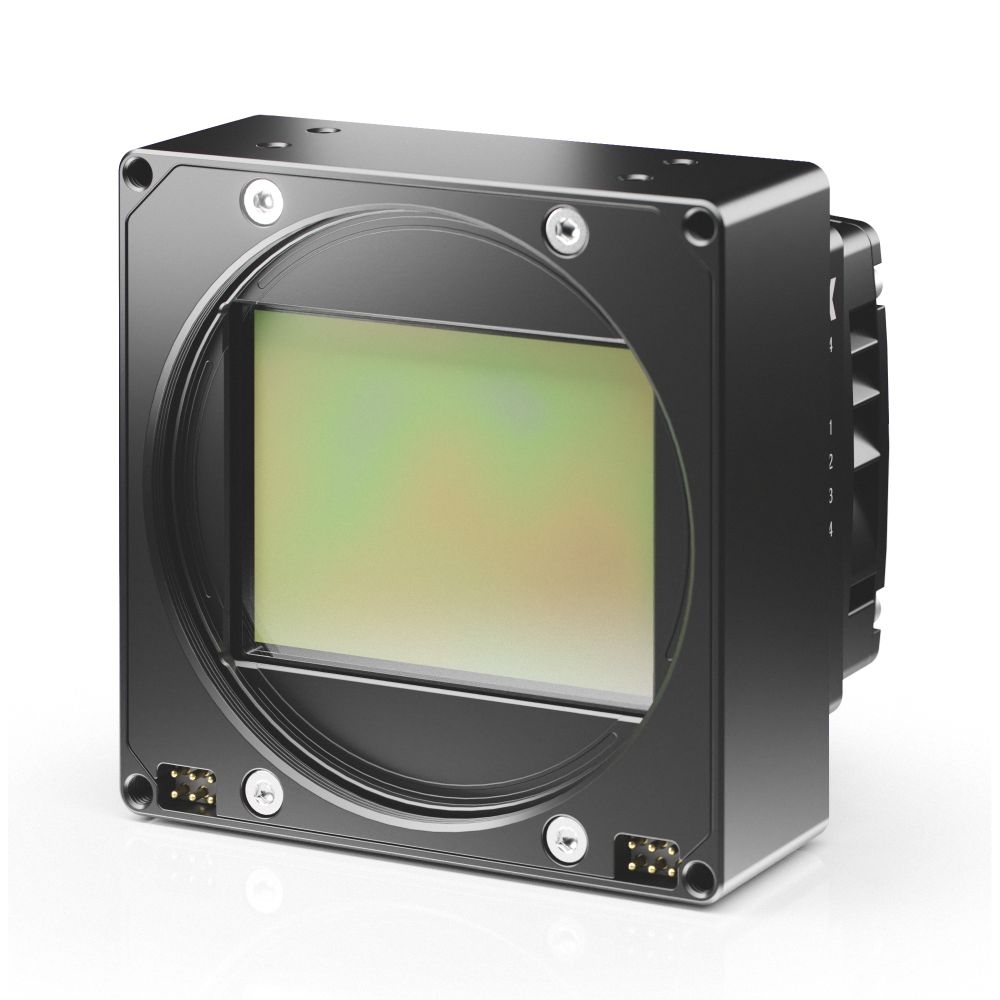

XIMEA XIX-XL CAMERA FAMILY
| Sensor | SONY IMX461 |
| Mono/Color | Color |
| Resolution | 101.8 MP |
| Size (H×V) | 11648 px × 8742 px |
| Interface | PCIe-FireFly-X4G3 |
| Sensor Format | Medium format |
| Pixel Size | 3.76 µm × 3.76 µm |
| Frame Rate | 8.7 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MX1018CR-SY-X4G3-FF |
| Product Family | XIX-XL CAMERA FAMILY |
| Product Line | XIX-XL |
| Camera Category | Area Scan |
| Sensor Vendor | SONY |
| Sensor | IMX461 |
| Shutter | Rolling shutter, Global reset release |
| Sensor Format | Medium format |
| Sensor Diagonal | 54.8mm |
| Sensor Type | CMOS |
| Sensor Size | 43 x 32 mm |
| Resolution (H×V) | 11648 px × 8742 px |
| Resolution | 101.8 MP |
| Pixel Size (H×V) | 3.76 µm × 3.76 µm |
| Frame rate | 8.7 fps |
| Exposure Time | 26 µs to 12 s |
| Mono/Color | Color |
| Spectrum | Visible |
| Quantum Efficiency | 74 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 46400 ke¯ |
| Dynamic Range | 82.3 dB |
| Signal-to-Noise Ratio | 46.7 dB |
| Interface | PCIe-FireFly-X4G3 |
| Image Data Interface | PCIe-FireFly-X4G3 |
| Pixel Bit Depth | 12, 14, 16 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 6 |
| Digital Output | 6 |
| Power Supply | 13.9 Watt |
| Power Requirements | 13.9 W |
| Housing Type | Standard housing |
| Housing Size | 80 mm × 80 mm × 45.1 mm |
| Weight | 490 g |
| Lens Mount | M72 mount, Hasselblad mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL PCI Express External Cabling Specifications compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MX1018CR-SY-X4G3-FF |
