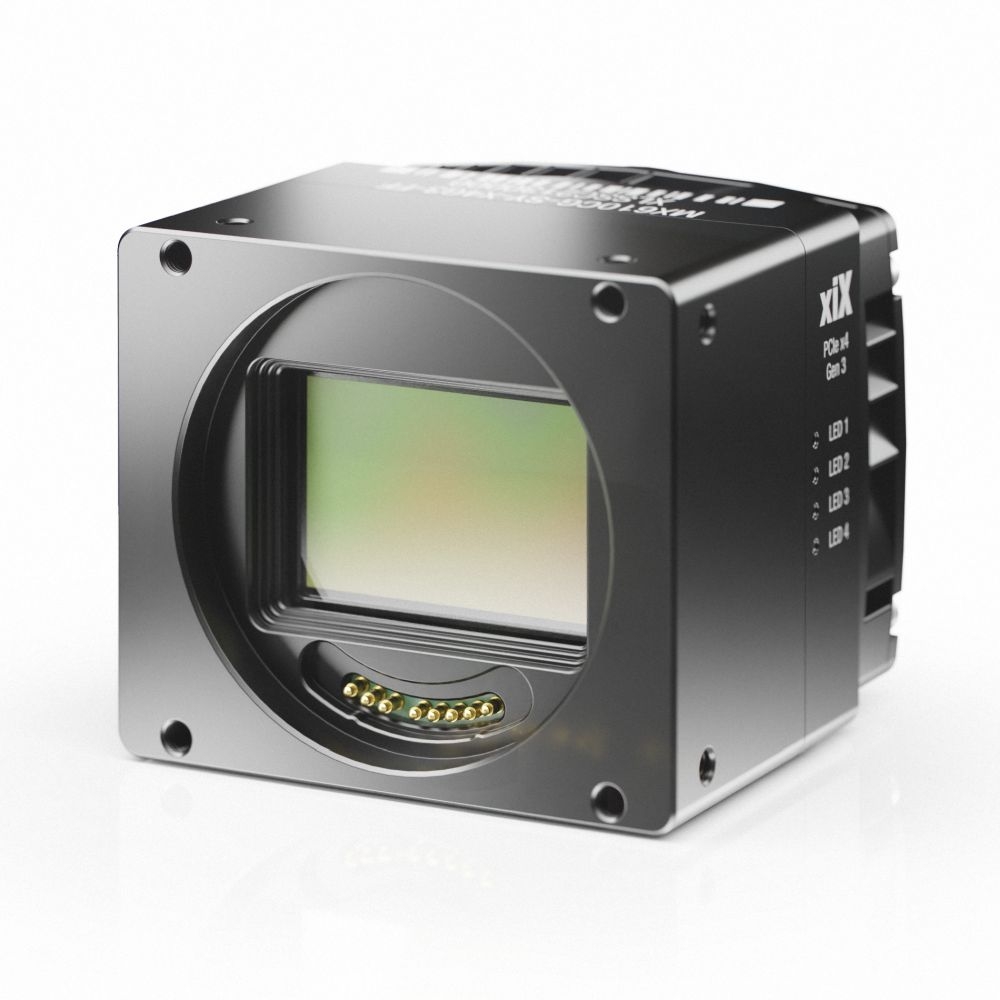

XIMEA XIX-XL CAMERA FAMILY
| Sensor | SONY IMX455 |
| Mono/Color | Mono |
| Resolution | 61.0 MP |
| Size (H×V) | 9568 px × 6380 px |
| Interface | PCIe-FireFly-X4G3 |
| Sensor Format | 35mm Full Frame |
| Pixel Size | 3.76 µm × 3.76 µm |
| Frame Rate | 17 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MX610MR-SY-X4G3-FF |
| Product Family | XIX-XL CAMERA FAMILY |
| Product Line | XIX-XL |
| Camera Category | Area Scan |
| Sensor Vendor | SONY |
| Sensor | IMX455 |
| Shutter | Rolling shutter, Global reset release |
| Sensor Format | 35mm Full Frame |
| Sensor Diagonal | 43.2mm |
| Sensor Type | CMOS |
| Sensor Size | 35 x 23 mm |
| Resolution (H×V) | 9568 px × 6380 px |
| Resolution | 61.0 MP |
| Pixel Size (H×V) | 3.76 µm × 3.76 µm |
| Frame rate | 17 fps |
| Exposure Time | 18 µs to 12 s |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 91 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 47070 ke¯ |
| Dynamic Range | 82.0 dB |
| Signal-to-Noise Ratio | 46.76 dB |
| Interface | PCIe-FireFly-X4G3 |
| Image Data Interface | PCIe-FireFly-X4G3 |
| Pixel Bit Depth | 12, 14, 16 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 6 |
| Digital Output | 6 |
| Power Supply | 13.5 Watt |
| Power Requirements | 13.5 W |
| Housing Type | Standard housing |
| Housing Size | 70 mm × 60 mm × 48.6 mm |
| Weight | 345 g |
| Lens Mount | EF-mount option |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL PCI Express External Cabling Specifications compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MX610MR-SY-X4G3-FF |
