XIMEA XIX CAMERA FAMILY
| Sensor | SONY IMX425 |
| Mono/Color | Mono |
| Resolution | 1.7 MP |
| Size (H×V) | 1608 px × 1104 px |
| Interface | PCIe-Flex-X2G2 |
| Sensor Format | 1.1" |
| Pixel Size | 9 µm × 9 µm |
| Frame Rate | 257 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MX017MG-SY-X2G2 |
| Product Family | XIX CAMERA FAMILY |
| Product Line | XIX |
| Camera Category | Area Scan |
| Sensor Vendor | SONY |
| Sensor | IMX425 |
| Shutter | Global shutter |
| Sensor Format | 1.1" |
| Sensor Diagonal | 17.6mm |
| Sensor Type | CMOS |
| Sensor Size | 14 x 9.9 mm |
| Resolution (H×V) | 1608 px × 1104 px |
| Resolution | 1.7 MP |
| Pixel Size (H×V) | 9 µm × 9 µm |
| Frame rate | 257 fps |
| Exposure Time | 9 µs to 30 s |
| Mono/Color | Mono |
| Spectrum | Visible |

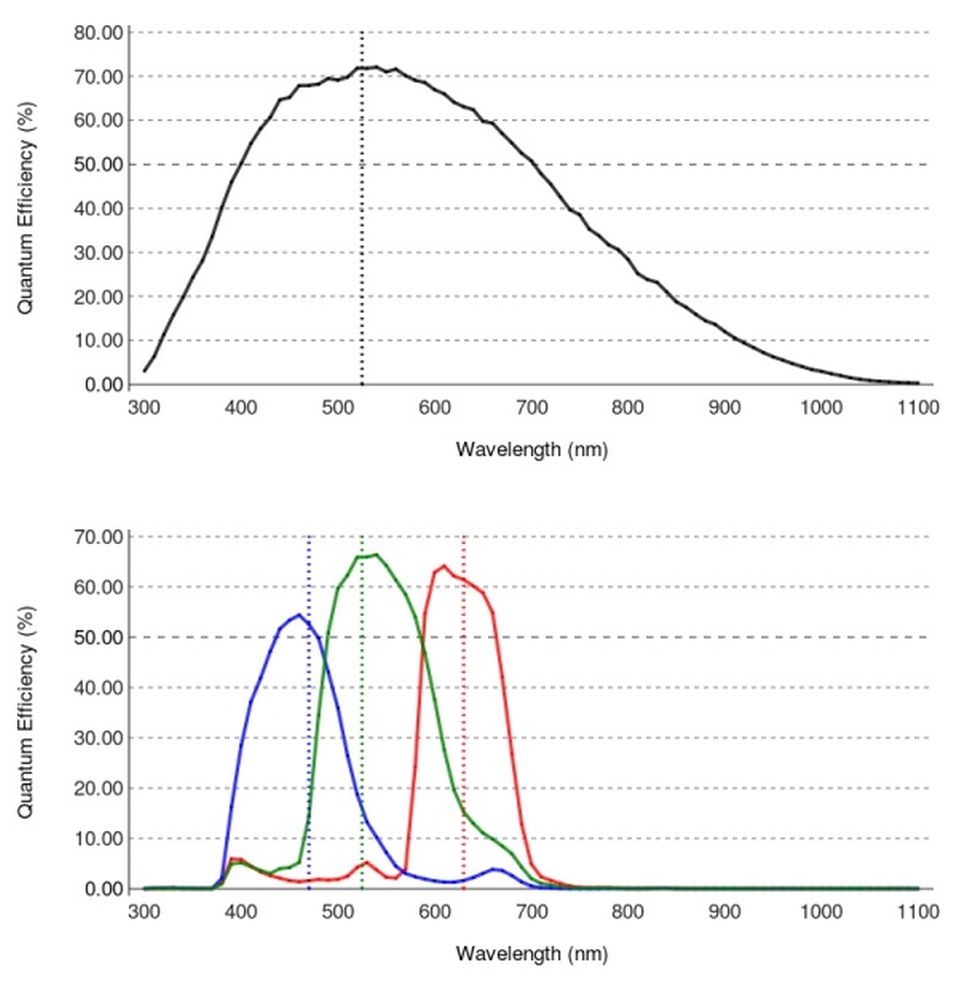

| Quantum Efficiency | 0 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 0 ke¯ |
| Dynamic Range | 71.0 dB |
| Signal-to-Noise Ratio | 0 dB |
| Interface | PCIe-Flex-X2G2 |
| Image Data Interface | PCIe-Flex-X2G2 |
| Pixel Bit Depth | 8, 10, 12 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 3 |
| Digital Output | 3 |
| Power Supply | 3.7 Watt |
| Power Requirements | 3.7 W |
| Housing Type | Standard housing |
| Housing Size | 26.4 mm × 26.4 mm × 30.9 mm |
| Weight | 30 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL PCI Express External Cabling Specifications compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MX017MG-SY-X2G2 |
| Others |
