Show technical details of the camera.
XIMEA XIC CAMERA FAMILY

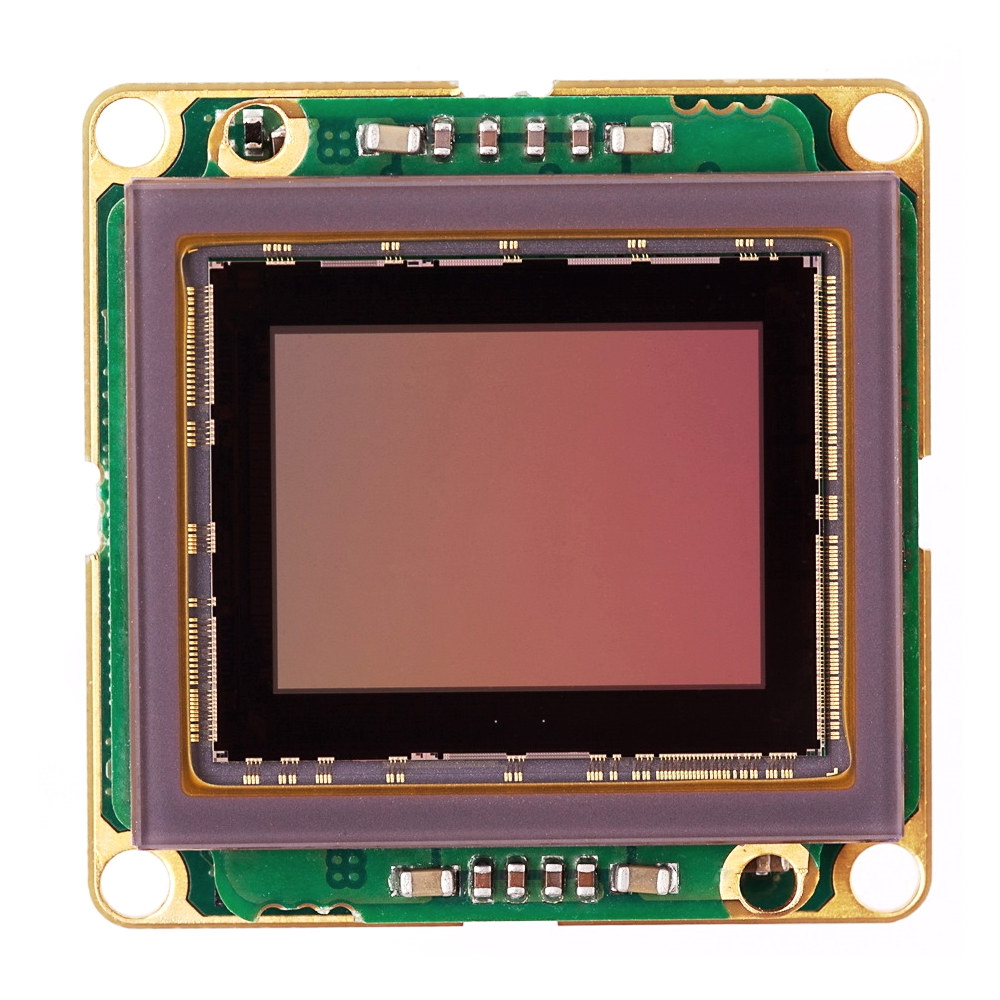

| Sensor | SONY IMX253 |
| Mono/Color | Mono |
| Resolution | 12.3 MP |
| Size (H×V) | 4112 px × 3008 px |
| Interface | USB3 Micro-B |
| Sensor Format | 1.1" |
| Pixel Size | 3.45 µm × 3.45 µm |
| Frame Rate | 30 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MC124MG-SY-BRD |
| Product Family | XIC CAMERA FAMILY |
| Product Line | XIC |
| Camera Category | Area Scan |
| Sensor Vendor | SONY |
| Sensor | IMX253 |
| Shutter | Global shutter |
| Sensor Format | 1.1" |
| Sensor Diagonal | 17.6mm |
| Sensor Type | CMOS |
| Sensor Size | 14 x 10 mm |
| Resolution (H×V) | 4112 px × 3008 px |
| Resolution | 12.3 MP |
| Pixel Size (H×V) | 3.45 µm × 3.45 µm |
| Frame rate | 30 fps |
| Exposure Time | 1 µs to 30 s |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 66 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 10457.6 ke¯ |
| Dynamic Range | 71.0 dB |
| Signal-to-Noise Ratio | 40.7 dB |

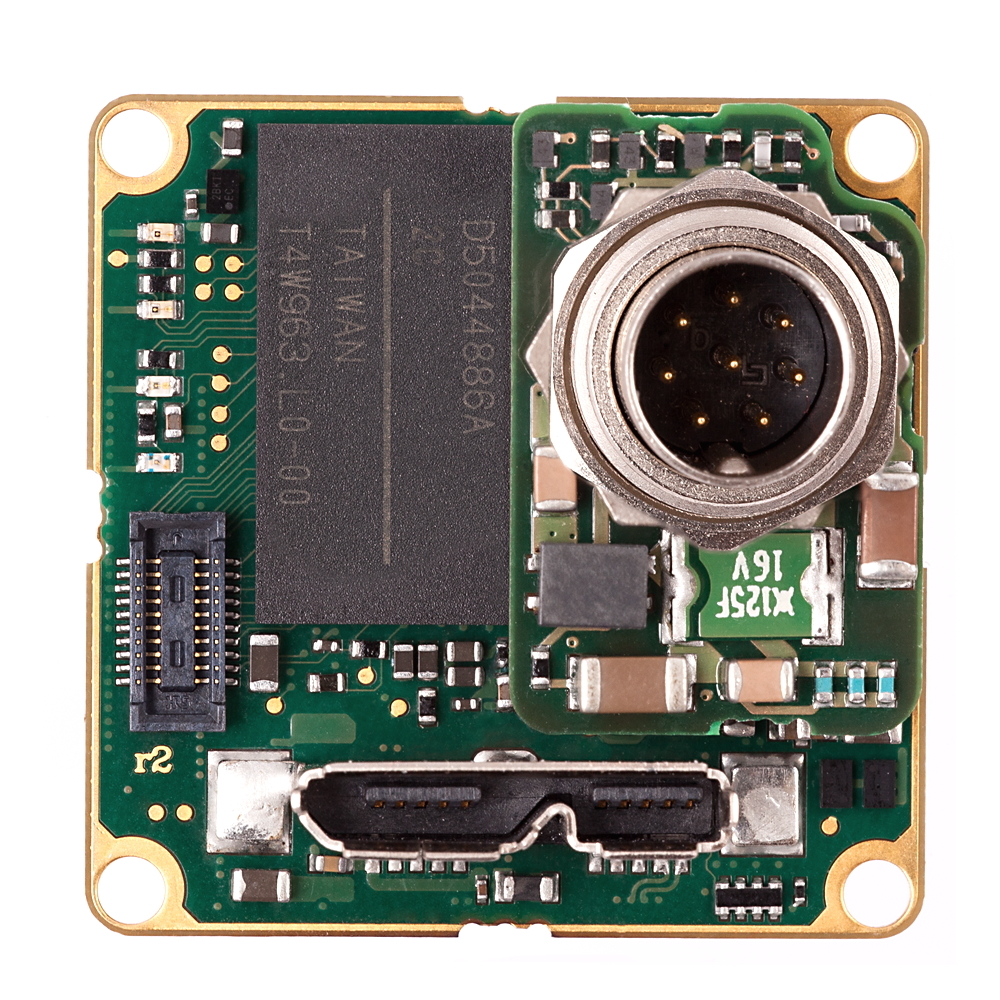

| Interface | USB3 Micro-B |
| Image Data Interface | USB3 Micro-B |
| Pixel Bit Depth | 8, 10, 12 bits |
| Synchronization | |
| Exposure Control | Hardware trigger input software trigger exposure strobe output busy output |
| Digital Input | 3 |
| Digital Output | 3 |
| Power Supply | 3.3 Watt |
| Power Requirements | 3.3 W |

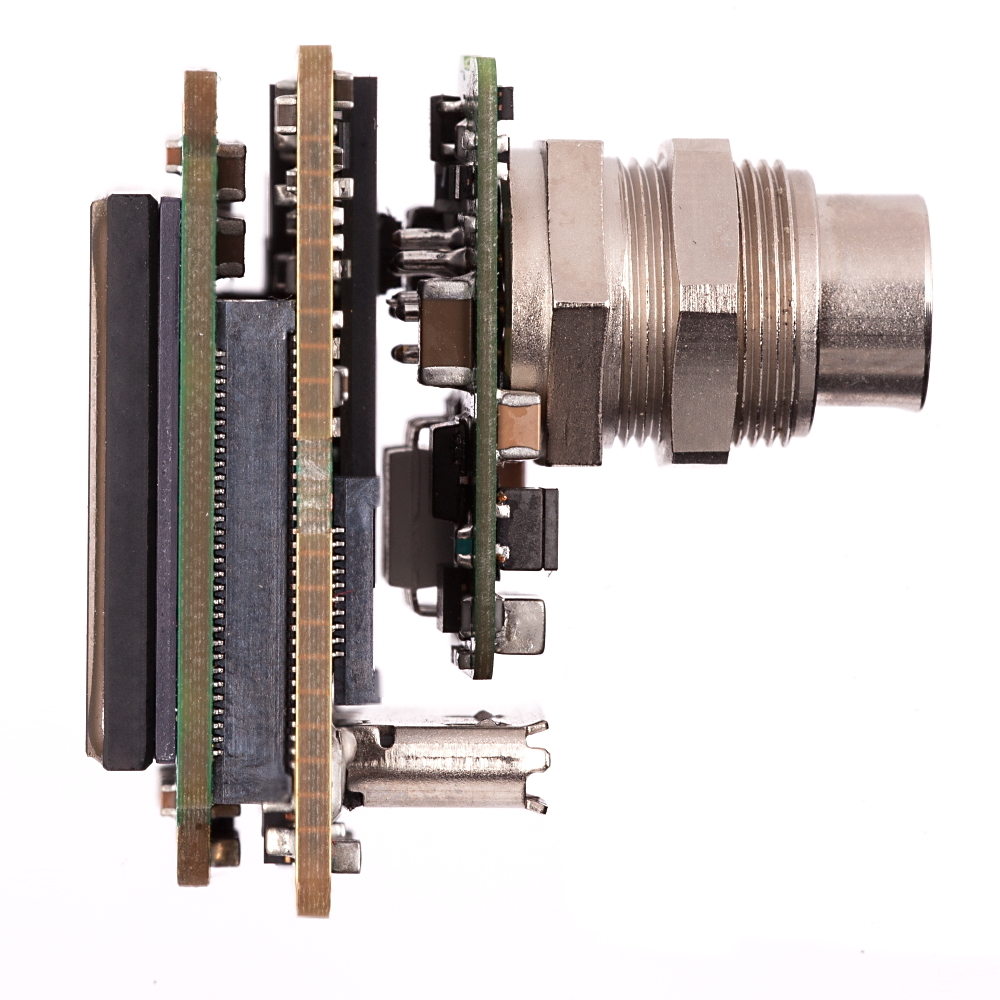

| Housing Type | Board level |
| Housing Size | 26 mm × 26 mm × 33 mm |
| Weight | 38 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL USB 3.0 SuperSpeed USB3 Vision Compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MC124MG-SY-BRD |
| Others |
