XIMEA XID CAMERA FAMILY
| Sensor | SONY ICX694 |
| Mono/Color | Mono |
| Resolution | 6.0 MP |
| Size (H×V) | 2752 px × 2202 px |
| Interface | USB3 Micro-B |
| Sensor Format | 1" |
| Pixel Size | 4.54 µm × 4.54 µm |
| Frame Rate | 28.4 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MD061MU-SY |
| Product Family | XID CAMERA FAMILY |
| Product Line | XID |
| Camera Category | Area Scan |
| Sensor Vendor | SONY |
| Sensor | ICX694 |
| Shutter | Global shutter |
| Sensor Format | 1" |
| Sensor Diagonal | 16mm |
| Sensor Type | CCD |
| Sensor Size | 12 x 10 mm |
| Resolution (H×V) | 2752 px × 2202 px |
| Resolution | 6.0 MP |
| Pixel Size (H×V) | 4.54 µm × 4.54 µm |
| Frame rate | 28.4 fps |
| Exposure Time | 54 µs to 974 s |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 77 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 0 ke¯ |
| Dynamic Range | 67.4 dB |
| Signal-to-Noise Ratio | 43.5 dB |
| Interface | USB3 Micro-B |
| Image Data Interface | USB3 Micro-B |
| Pixel Bit Depth | 14 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 2 |
| Digital Output | 2 |
| Power Supply | 4.1 Watt |
| Power Requirements | 4.1 W |
| Housing Type | Standard housing |

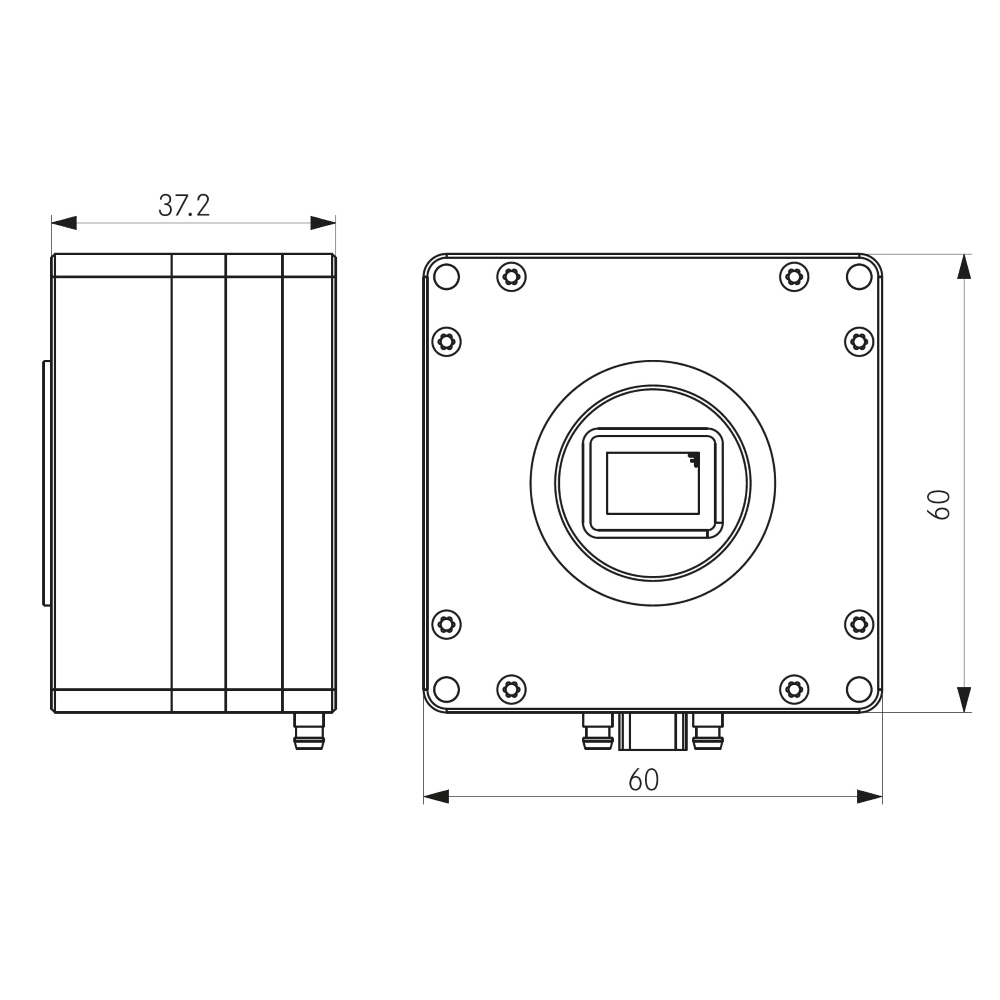

| Housing Size | 60 mm × 60 mm × 37.2 mm |
| Weight | 320 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL USB 3.0 SuperSpeed |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MD061MU-SY |
| Others |
