Show technical details of the camera.
XIMEA XIMU CAMERA FAMILY
| Sensor | onsemi AR1820HS |
| Mono/Color | Color |
| Resolution | 18.0 MP |
| Size (H×V) | 4896 px × 3680 px |
| Interface | USB3 Type-C |
| Sensor Format | 1/2.3" |
| Pixel Size | 1.25 µm × 1.25 µm |
| Frame Rate | 21 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MU181CR-ON |
| Product Family | XIMU CAMERA FAMILY |
| Product Line | XIMU |
| Camera Category | Area Scan |
| Sensor Vendor | onsemi |
| Sensor | AR1820HS |
| Shutter | Rolling shutter, Global reset release |
| Sensor Format | 1/2.3" |
| Sensor Diagonal | 7.7mm |
| Sensor Type | CMOS |
| Sensor Size | 6.1 x 4.6 mm |
| Resolution (H×V) | 4896 px × 3680 px |
| Resolution | 18.0 MP |
| Pixel Size (H×V) | 1.25 µm × 1.25 µm |
| Frame rate | 21 fps |
| Exposure Time | 13 µs to 15 s |
| Mono/Color | Color |
| Spectrum | Visible |

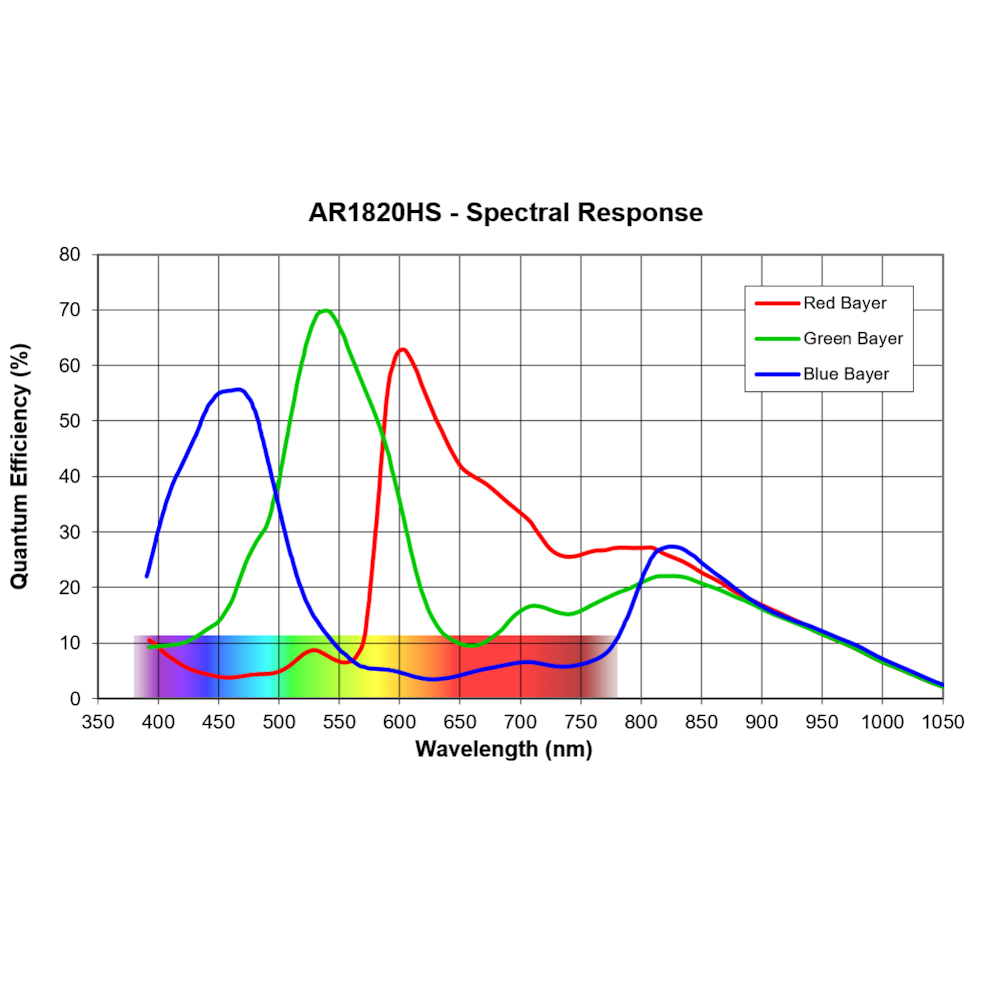

| Quantum Efficiency | 70 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 0 ke¯ |
| Dynamic Range | 57.6 dB |
| Signal-to-Noise Ratio | 36.3 dB |
| Interface | USB3 Type-C |
| Image Data Interface | USB3 Type-C |
| Pixel Bit Depth | 12 bits |
| Synchronization | |
| Exposure Control | Hardware trigger input software trigger exposure active frame active trigger ready exposure active pulse busy |
| Digital Input | 3 |
| Digital Output | 3 |
| Power Supply | 1.48 Watt |
| Power Requirements | 1.48 W |
| Housing Type | Standard housing |

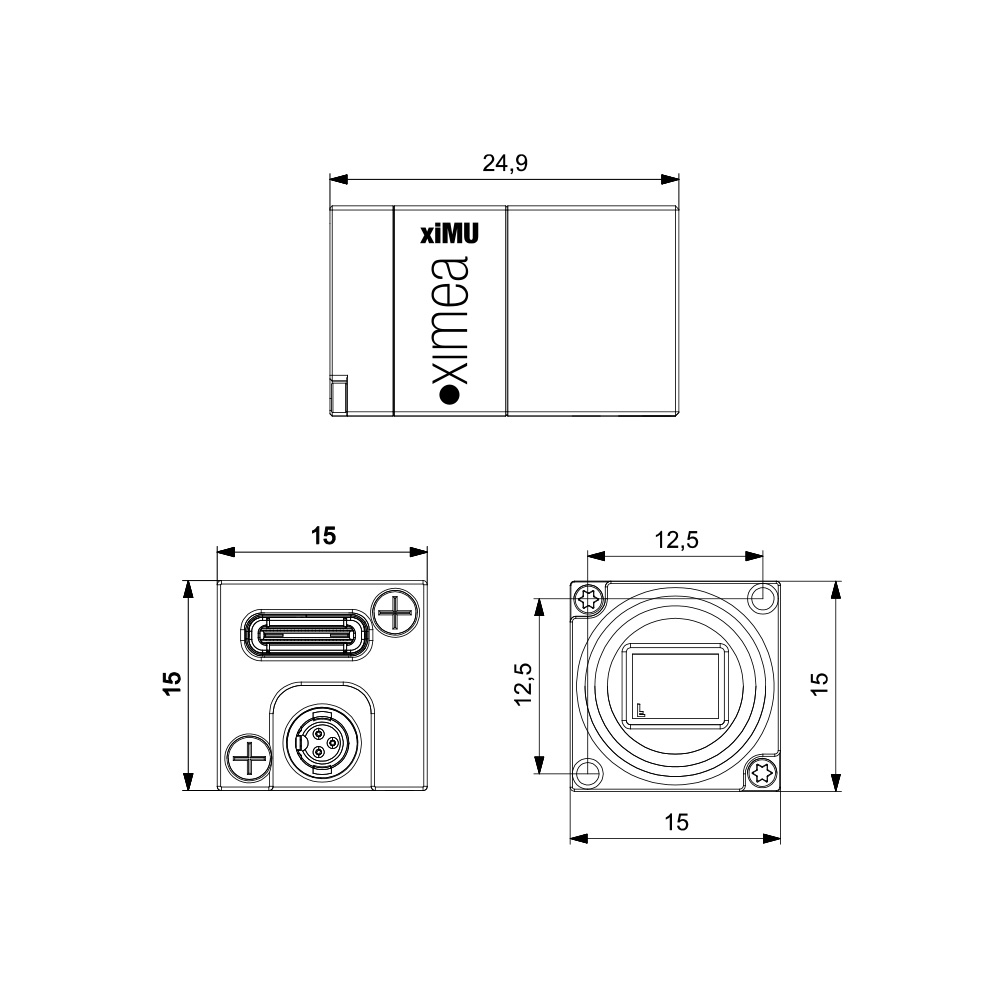

| Housing Size | 15 mm × 15 mm × 14 mm |
| Weight | 5.1 g |
| Lens Mount | S-mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS WEEE GenICam/GenTL Universal Serial Bus Specification |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MU181CR-ON |
| Others |
