XIMEA XISPEC CAMERA FAMILY
| Sensor | imec CMV2K-SSM4x4-VIS |
| Mono/Color | Mono |
| Resolution | 2.2 MP |
| Size (H×V) | 2048 px × 1088 px |
| Interface | USB3 Micro-B |
| Sensor Format | 2/3" |
| Pixel Size | 5.5 µm × 5.5 µm |
| Frame Rate | 170 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MQ022HG-IM-SM4X4-VIS3 |
| Product Family | XISPEC CAMERA FAMILY |
| Product Line | XISPEC |
| Camera Category | Area Scan |
| Sensor Vendor | imec |
| Sensor | CMV2K-SSM4x4-VIS |
| Shutter | Global shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 12.8mm |
| Sensor Type | CMOS |
| Sensor Size | 11 x 6 mm |
| Resolution (H×V) | 2048 px × 1088 px |
| Resolution | 2.2 MP |
| Pixel Size (H×V) | 5.5 µm × 5.5 µm |
| Frame rate | 170 fps |
| Exposure Time | 30 µs to 2 s |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 0 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 0 ke¯ |
| Dynamic Range | 0.0 dB |
| Signal-to-Noise Ratio | 0 dB |
| Interface | USB3 Micro-B |
| Image Data Interface | USB3 Micro-B |
| Pixel Bit Depth | 10 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 1 |
| Digital Output | 1 |
| Power Supply | 1.5 Watt |
| Power Requirements | 1.5 W |
| Housing Type | Standard housing |

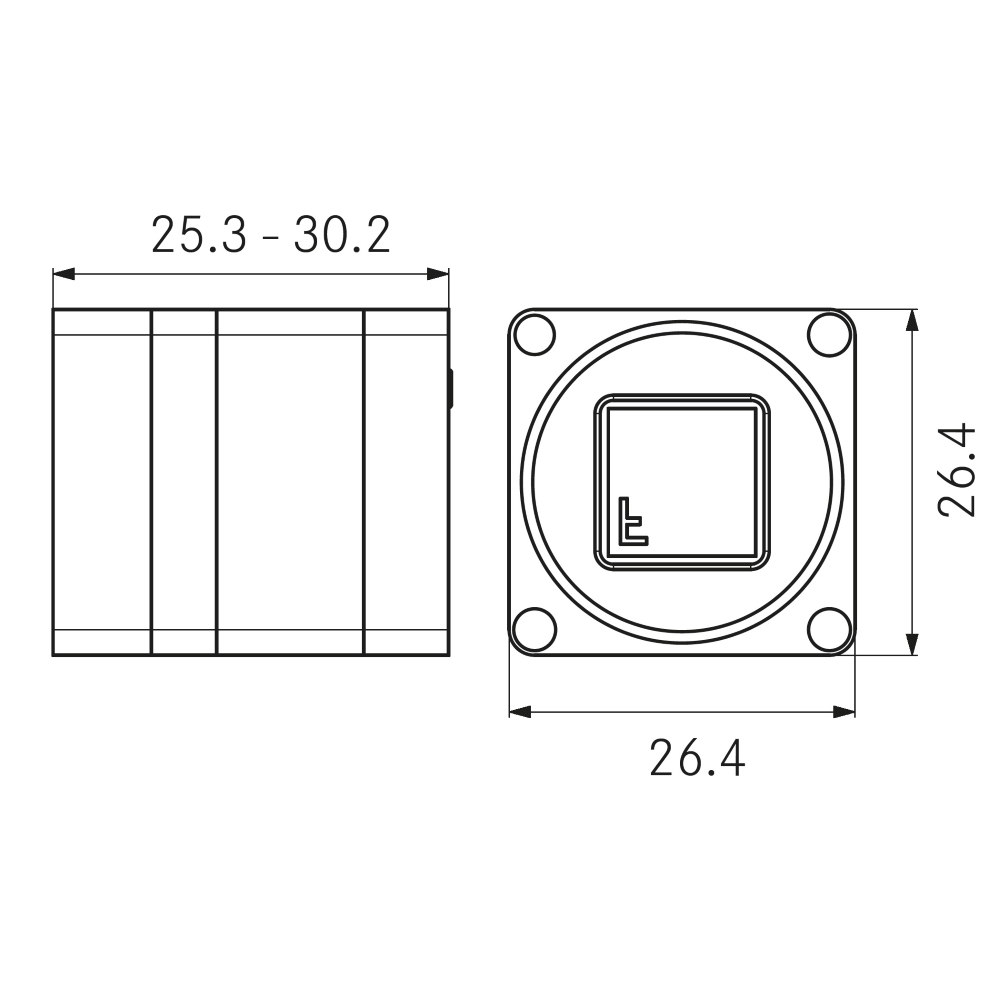

| Housing Size | 26.4 mm × 26.4 mm × 30.2 mm |
| Weight | 31.8 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS WEEE GenICam/GenTL USB 3.0 SuperSpeed USB3 Vision Compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MQ022HG-IM-SM4X4-VIS3 |
