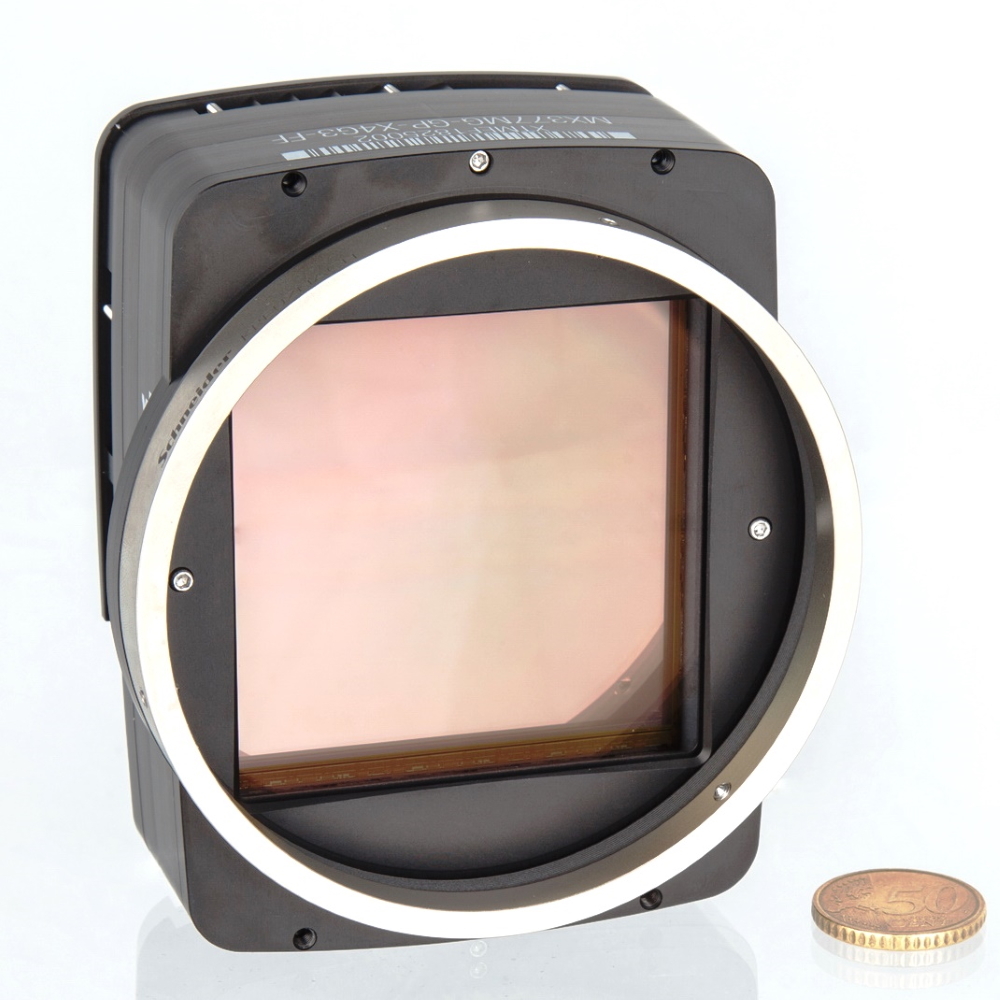

XIMEA MX377 CAMERA FAMILY
| Sensor | Gpixel GSENSE6060 BSI |
| Mono/Color | Mono |
| Resolution | 38.0 MP |
| Size (H×V) | 6200 px × 6144 px |
| Interface | PCIe-FireFly-X4G3 |
| Sensor Format | Medium format |
| Pixel Size | 10 µm × 10 µm |
| Frame Rate | 48 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MX377MR-GP-Bx-X4G3-MTP |
| Product Family | MX377 CAMERA FAMILY |
| Product Line | MX377 |
| Camera Category | Area Scan |
| Sensor Vendor | Gpixel |
| Sensor | GSENSE6060 BSI |
| Shutter | Rolling shutter |
| Sensor Format | Medium format |
| Sensor Diagonal | 87.3mm |
| Sensor Type | sCMOS |
| Sensor Size | 62 x 61 mm |
| Resolution (H×V) | 6200 px × 6144 px |
| Resolution | 38.0 MP |
| Pixel Size (H×V) | 10 µm × 10 µm |
| Frame rate | 48 fps |
| Exposure Time | 24 µs to 30 s |
| Mono/Color | Mono |
| Spectrum | Visible |

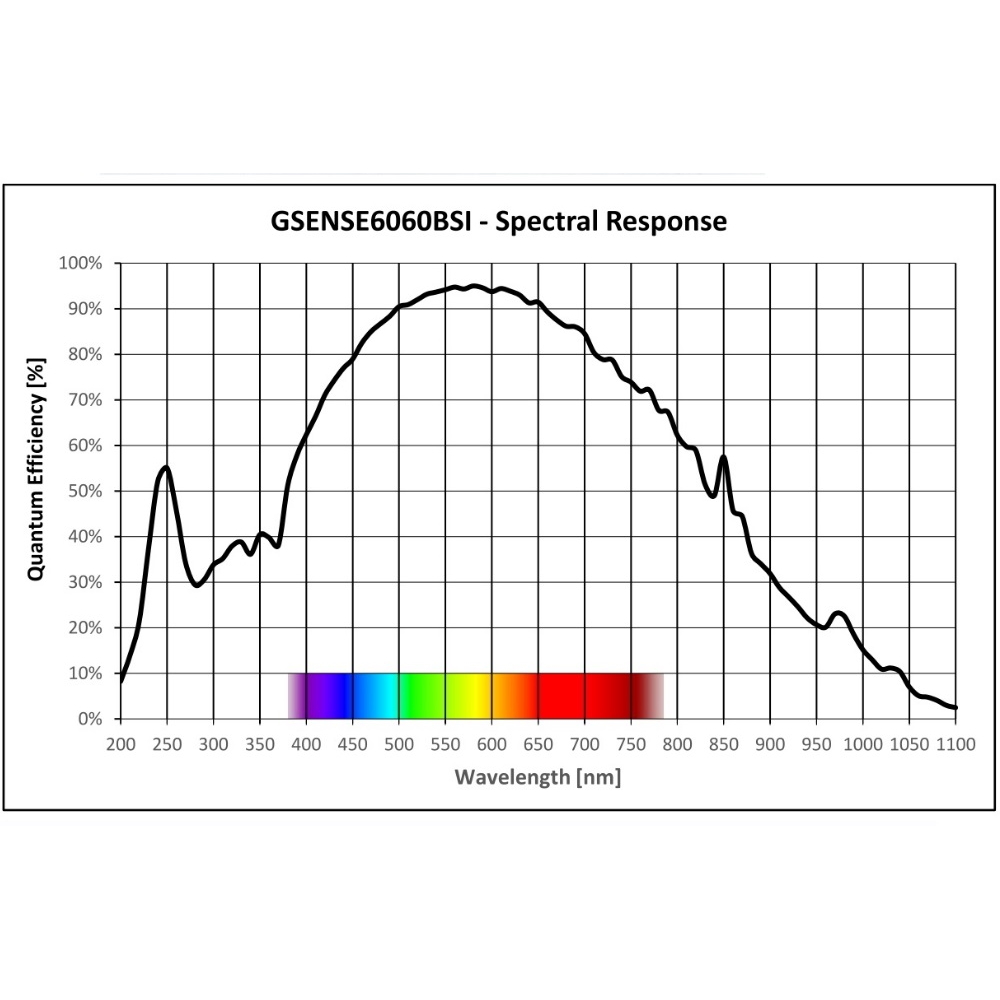

| Quantum Efficiency | 95 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 0 ke¯ |
| Dynamic Range | 90.0 dB |
| Signal-to-Noise Ratio | 50.8 dB |
| Interface | PCIe-FireFly-X4G3 |
| Image Data Interface | PCIe-FireFly-X4G3 |
| Pixel Bit Depth | 12, 14, 2 x 12, 2 x 14 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 11 |
| Digital Output | 11 |
| Power Supply | 20 Watt |
| Power Requirements | 20 W |
| Housing Type | Standard housing |

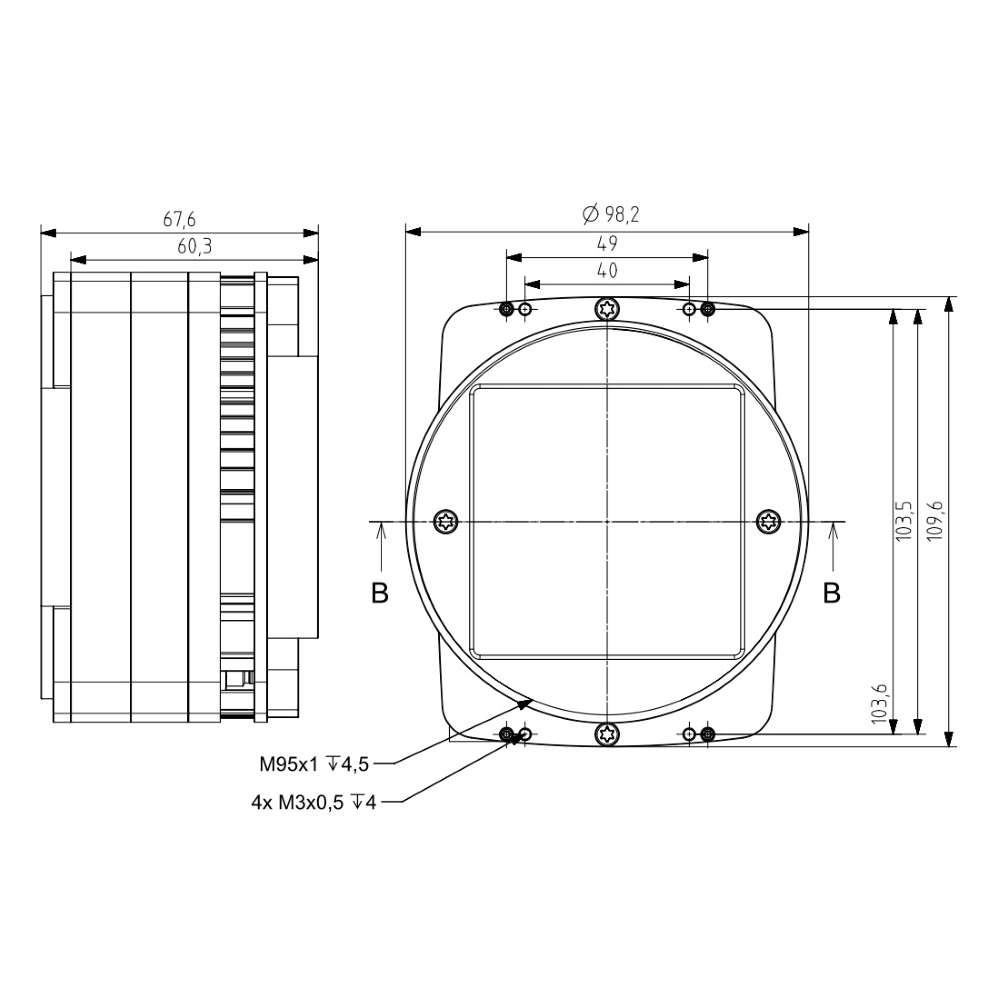

| Housing Size | 98 mm × 110 mm × 67 mm |
| Weight | 1270 g |
| Lens Mount | M95 mount, M95mount-x1 |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS WEEE GenICam/GenTL USB 3.0 SuperSpeed |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MX377MR-GP-Bx-X4G3-MTP |
| Others |
