XIMEA XIJ CAMERA FAMILY
| Sensor | Gpixel GSENSE400 BSI |
| Mono/Color | Mono |
| Resolution | 4.1 MP |
| Size (H×V) | 2048 px × 2048 px |
| Interface | USB3 Type-C |
| Sensor Format | 2" |
| Pixel Size | 11 µm × 11 µm |
| Frame Rate | 46 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MJ042MR-GP-P11-BSI |
| Product Family | XIJ CAMERA FAMILY |
| Product Line | XIJ |
| Camera Category | Area Scan |
| Sensor Vendor | Gpixel |
| Sensor | GSENSE400 BSI |
| Shutter | Rolling shutter |
| Sensor Format | 2" |
| Sensor Diagonal | 31.9mm |
| Sensor Type | sCMOS |
| Sensor Size | 22 x 22 mm |
| Resolution (H×V) | 2048 px × 2048 px |
| Resolution | 4.1 MP |
| Pixel Size (H×V) | 11 µm × 11 µm |
| Frame rate | 46 fps |
| Exposure Time | 24 µs to 30 s |
| Mono/Color | Mono |
| Spectrum | Visible |

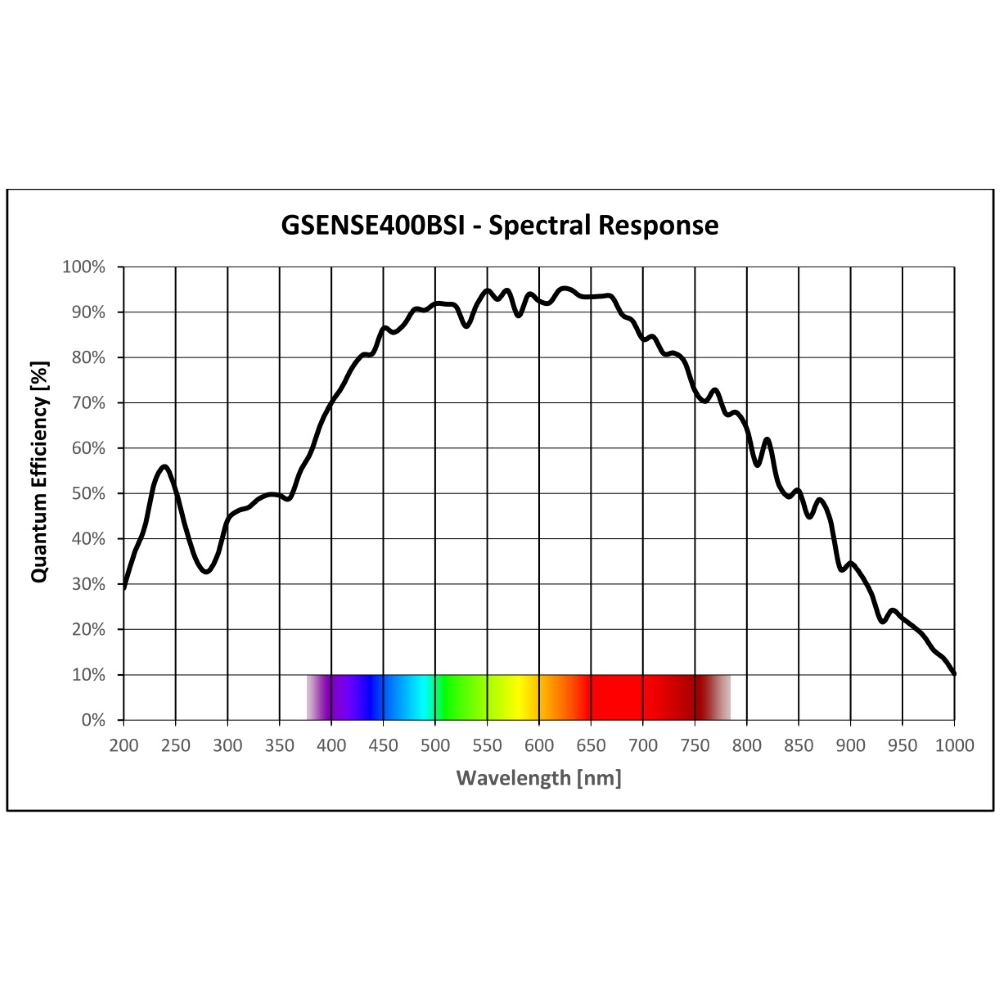

| Quantum Efficiency | 95 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 87595.5 ke¯ |
| Dynamic Range | 88.7 dB |
| Signal-to-Noise Ratio | 48.7 dB |
| Interface | USB3 Type-C |
| Image Data Interface | USB3 Type-C |
| Pixel Bit Depth | 12, 2 x 12 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 1 |
| Digital Output | 1 |
| Power Supply | 3.5 Watt |
| Power Requirements | 3.5 W |
| Housing Type | Standard housing |

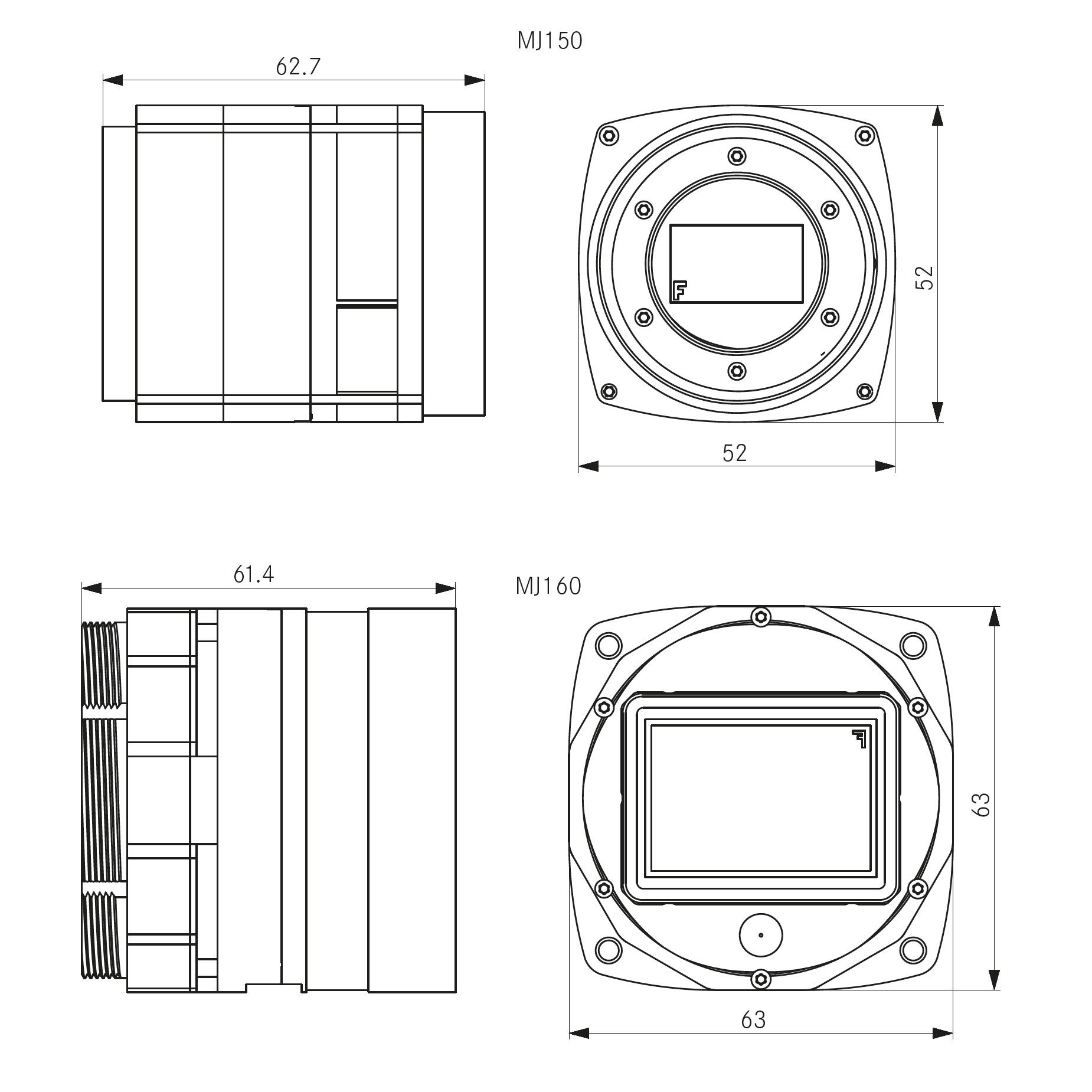

| Housing Size | 52.1 mm × 52.1 mm × 60.08 mm |
| Weight | 320 g |
| Lens Mount | M42 mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS WEEE GenICam/GenTL USB 3.0 SuperSpeed |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MJ042MR-GP-P11-BSI |
| Others |
