Show technical details of the camera.

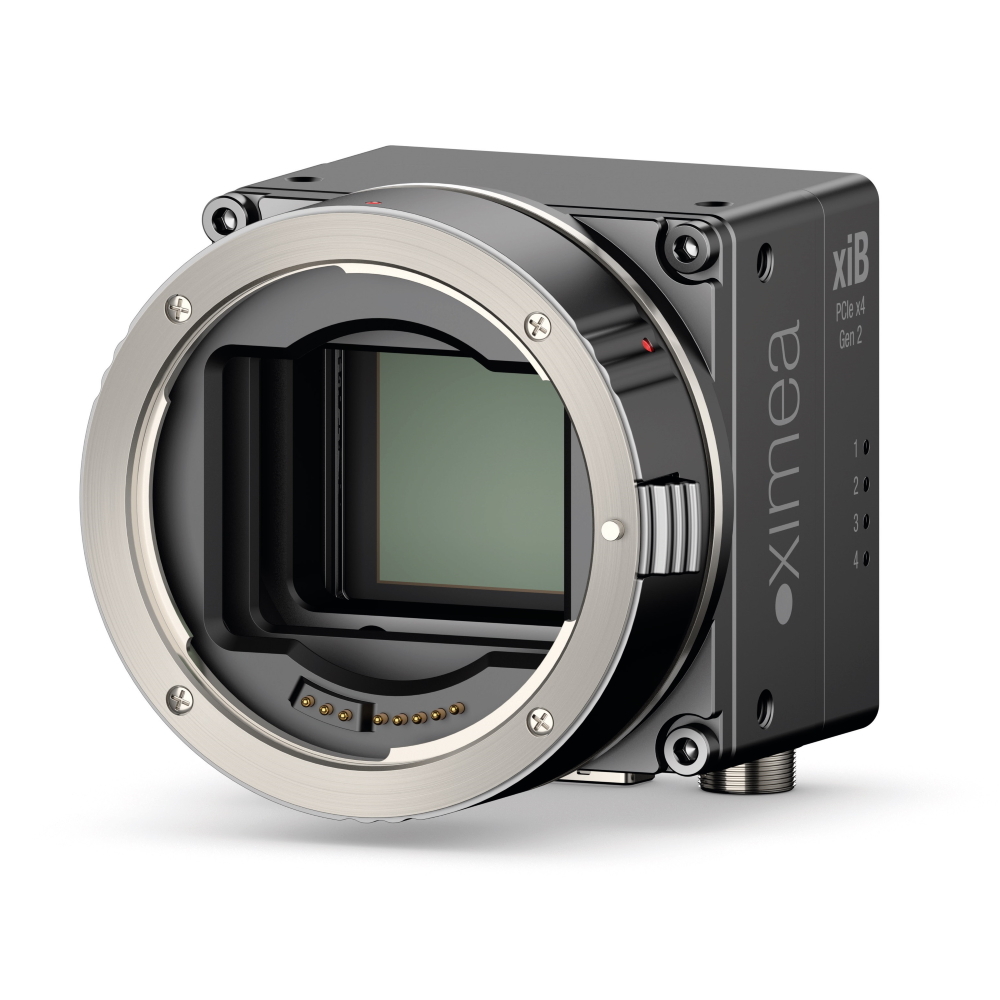

XIMEA XIJ CAMERA FAMILY
| Sensor | Gpixel GSENSE2020e |
| Mono/Color | Mono |
| Resolution | 4.1 MP |
| Size (H×V) | 2048 px × 2048 px |
| Interface | PCIe-iPass-X4G2 |
| Sensor Format | 1.2" |
| Pixel Size | 6.5 µm × 6.5 µm |
| Frame Rate | 93 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | CB042MG-GP |
| Product Family | XIJ CAMERA FAMILY |
| Product Line | XIJ |
| Camera Category | Area Scan |
| Sensor Vendor | Gpixel |
| Sensor | GSENSE2020e |
| Shutter | Global shutter, Rolling shutter |
| Sensor Format | 1.2" |
| Sensor Diagonal | 18.8mm |
| Sensor Type | sCMOS |
| Sensor Size | 13 x 13 mm |
| Resolution (H×V) | 2048 px × 2048 px |
| Resolution | 4.1 MP |
| Pixel Size (H×V) | 6.5 µm × 6.5 µm |
| Frame rate | 93 fps |
| Exposure Time | 8 µs to 30 s |
| Mono/Color | Mono |
| Spectrum | Visible |

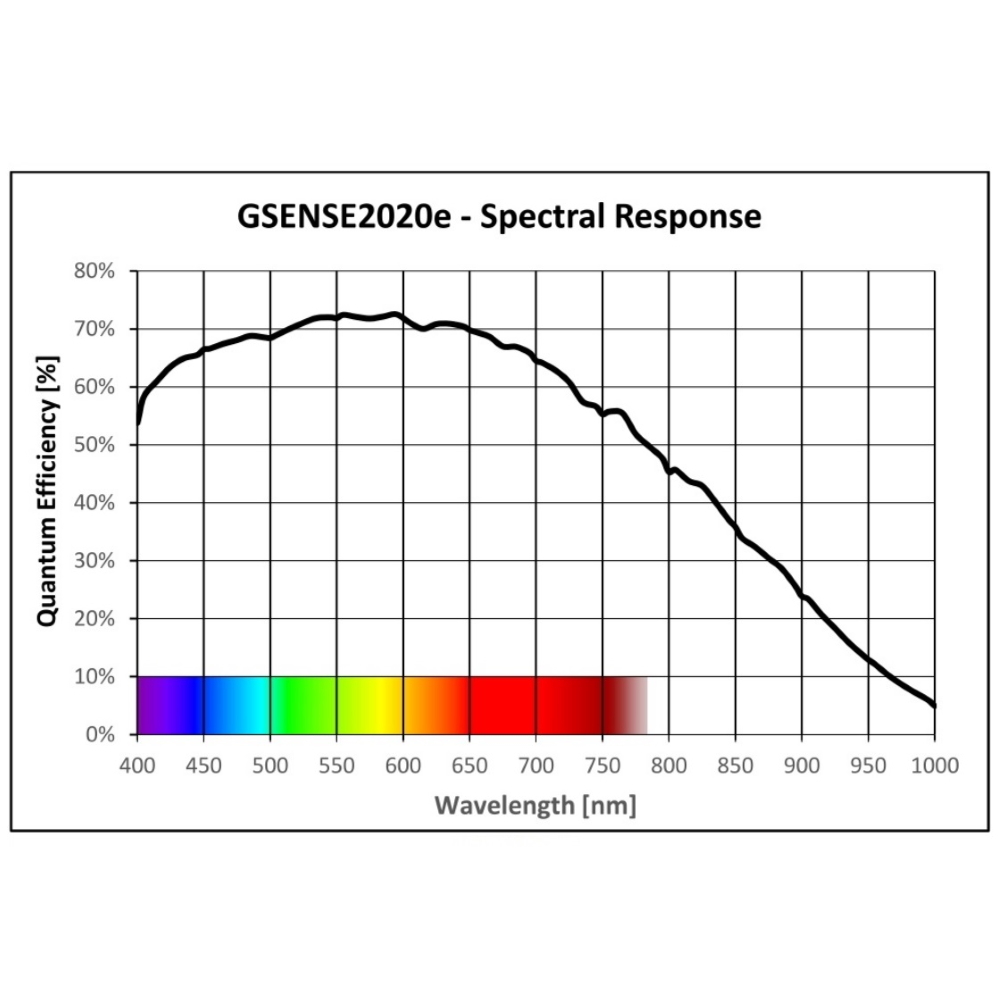

| Quantum Efficiency | 72 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 0 ke¯ |
| Dynamic Range | 87.0 dB |
| Signal-to-Noise Ratio | 46 dB |
| Interface | PCIe-iPass-X4G2 |
| Image Data Interface | PCIe-iPass-X4G2 |
| Pixel Bit Depth | 10, 12, 2 x 10, 2 x 12 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 6 |
| Digital Output | 6 |
| Power Supply | 5.6 Watt |
| Power Requirements | 5.6 W |
| Housing Type | Standard housing |

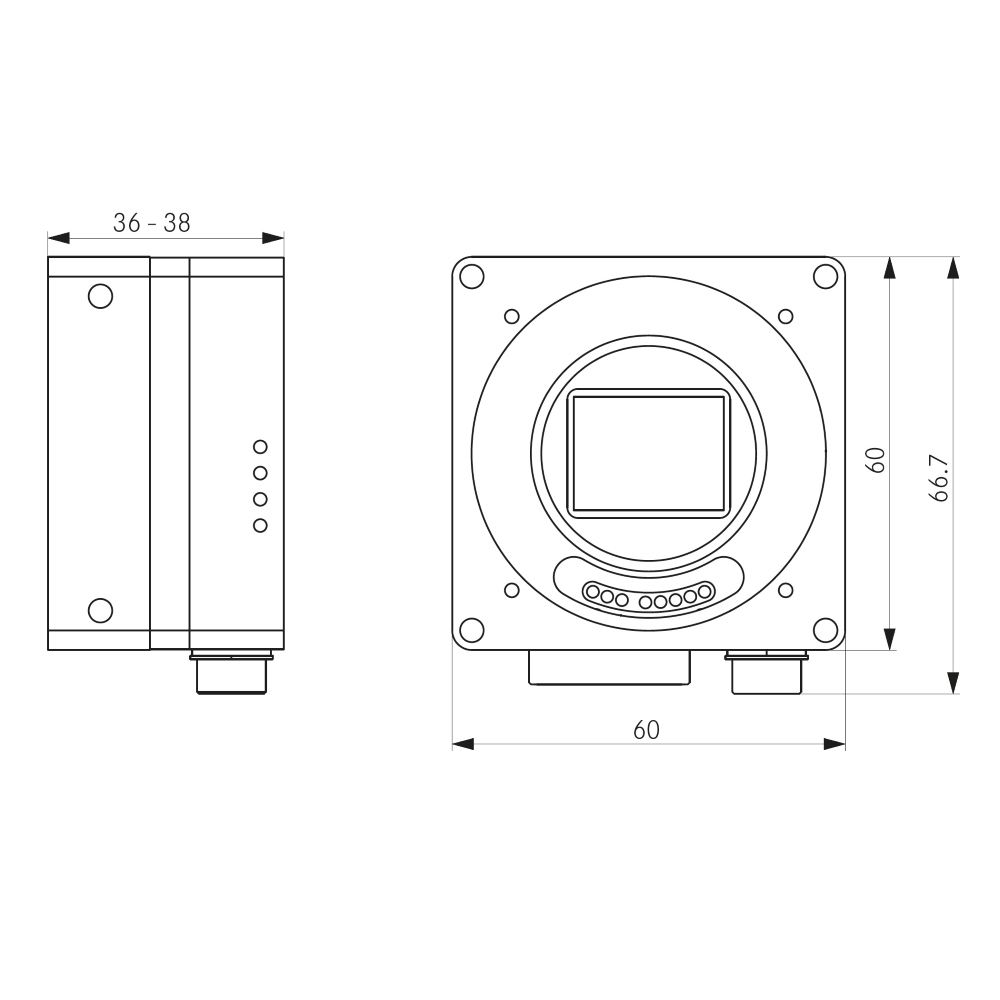

| Housing Size | 60 mm × 60 mm × 36 mm |
| Weight | 173 g |
| Lens Mount | C-mount, EF-mount option |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS WEEE GenICam/GenTL USB 3.0 SuperSpeed |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA CB042MG-GP |
