XIMEA XIB-64 CAMERA FAMILY
| Sensor | Gpixel GMAX3265 |
| Mono/Color | Color |
| Resolution | 65.4 MP |
| Size (H×V) | 9344 px × 7000 px |
| Interface | PCIe-iPass-X8G3 |
| Sensor Format | 2.3" |
| Pixel Size | 3.2 µm × 3.2 µm |
| Frame Rate | 71 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | CB654CG-GP-X8G3 |
| Product Family | XIB-64 CAMERA FAMILY |
| Product Line | XIB-64 |
| Camera Category | Area Scan |
| Sensor Vendor | Gpixel |
| Sensor | GMAX3265 |
| Shutter | Global shutter |
| Sensor Format | 2.3" |
| Sensor Diagonal | 37.4mm |
| Sensor Type | CMOS |
| Sensor Size | 29 x 22 mm |
| Resolution (H×V) | 9344 px × 7000 px |
| Resolution | 65.4 MP |
| Pixel Size (H×V) | 3.2 µm × 3.2 µm |
| Frame rate | 71 fps |
| Exposure Time | 17 µs to 1 s |
| Mono/Color | Color |
| Spectrum | Visible |
| Quantum Efficiency | 63 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 10240.3 ke¯ |
| Dynamic Range | 64.6 dB |
| Signal-to-Noise Ratio | 40.2 dB |
| Interface | PCIe-iPass-X8G3 |
| Image Data Interface | PCIe-iPass-X8G3 |
| Pixel Bit Depth | 10, 12 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 6 |
| Digital Output | 6 |
| Power Supply | 16.7 Watt |
| Power Requirements | 16.7 W |
| Housing Type | Standard housing |

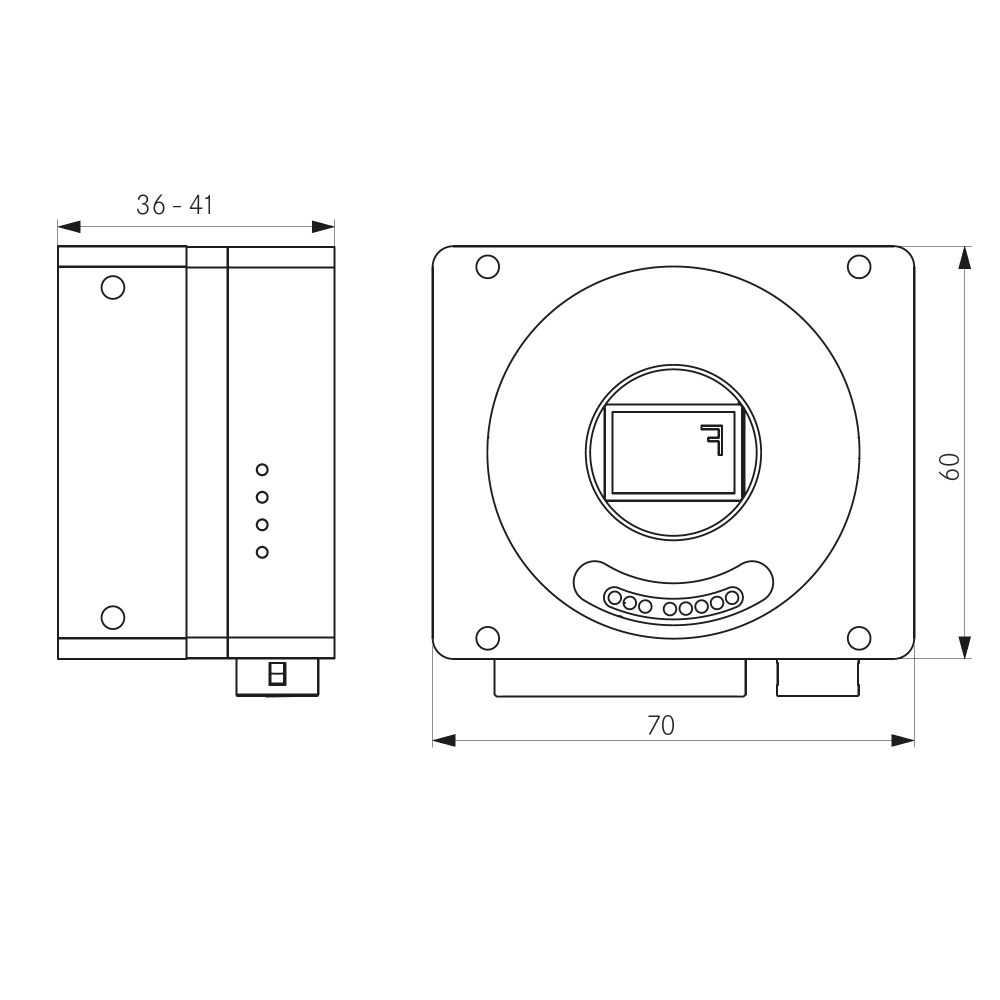

| Housing Size | 70 mm × 60 mm × 41 mm |
| Weight | 290 g |
| Lens Mount | EF-mount option |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL PCI Express External Cabling Specifications compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA CB654CG-GP-X8G3 |
