Show technical details of the camera.
XIMEA XIX CAMERA FAMILY
| Sensor | Gpixel GMAX0505 Red Fox |
| Mono/Color | Mono |
| Resolution | 26.2 MP |
| Size (H×V) | 5120 px × 5120 px |
| Interface | PCIe-Firefly-X8G3 |
| Sensor Format | 1.2" |
| Pixel Size | 2.5 µm × 2.5 µm |
| Frame Rate | 150 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MX262RG-GP-X8G3-FF |
| Product Family | XIX CAMERA FAMILY |
| Product Line | XIX |
| Camera Category | Area Scan |
| Sensor Vendor | Gpixel |
| Sensor | GMAX0505 Red Fox |
| Shutter | Global shutter |
| Sensor Format | 1.2" |
| Sensor Diagonal | 18.1mm |
| Sensor Type | CMOS |
| Sensor Size | 12 x 12 mm |
| Resolution (H×V) | 5120 px × 5120 px |
| Resolution | 26.2 MP |
| Pixel Size (H×V) | 2.5 µm × 2.5 µm |
| Frame rate | 150 fps |
| Exposure Time | 11 µs to 1 s |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 0 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 4570.7 ke¯ |
| Dynamic Range | 63.2 dB |
| Signal-to-Noise Ratio | 35.6 dB |
| Interface | PCIe-Firefly-X8G3 |
| Image Data Interface | PCIe-Firefly-X8G3 |
| Pixel Bit Depth | 10, 12 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 6 |
| Digital Output | 6 |
| Power Supply | 13.6 Watt |
| Power Requirements | 13.6 W |
| Housing Type | Standard housing |

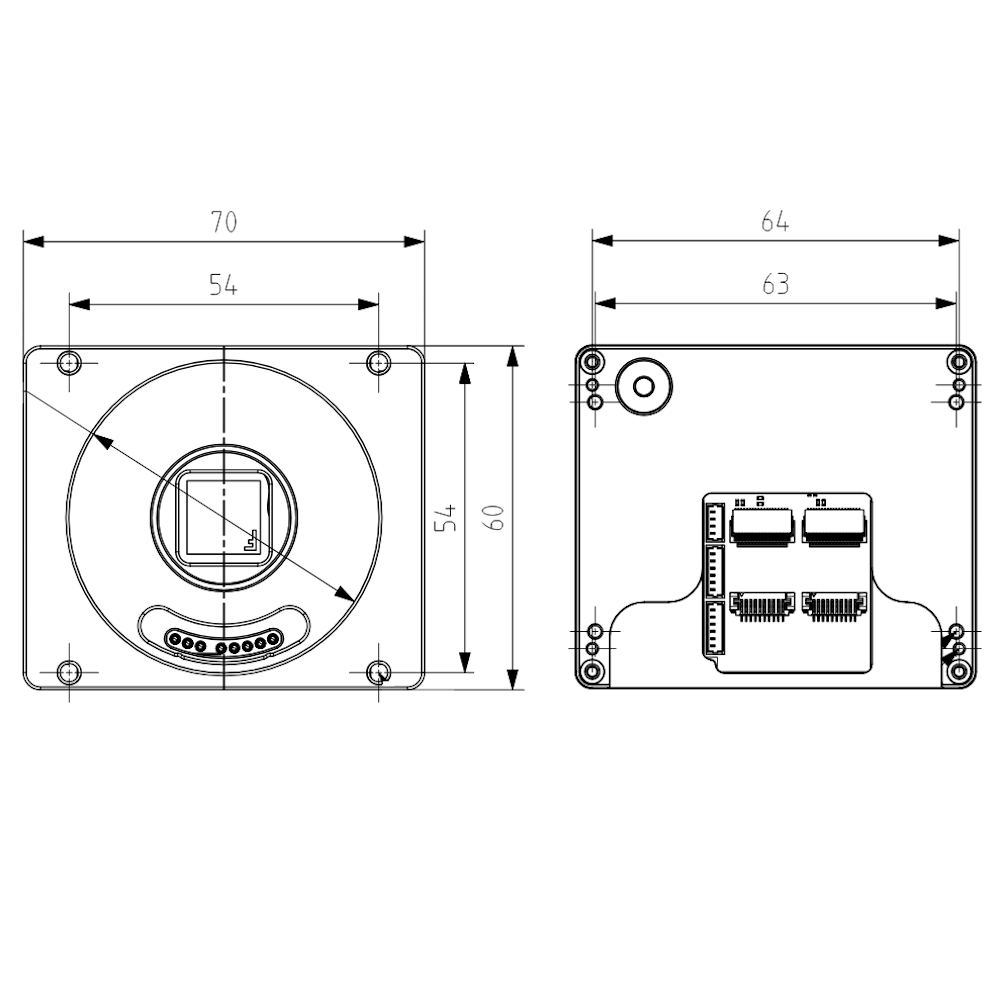

| Housing Size | 70 mm × 60 mm × 36.1 mm |
| Weight | 236 g |
| Lens Mount | C-mount, EF-mount option |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL PCI Express External Cabling Specifications compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MX262RG-GP-X8G3-FF |
| Others |
