Show technical details of the camera.

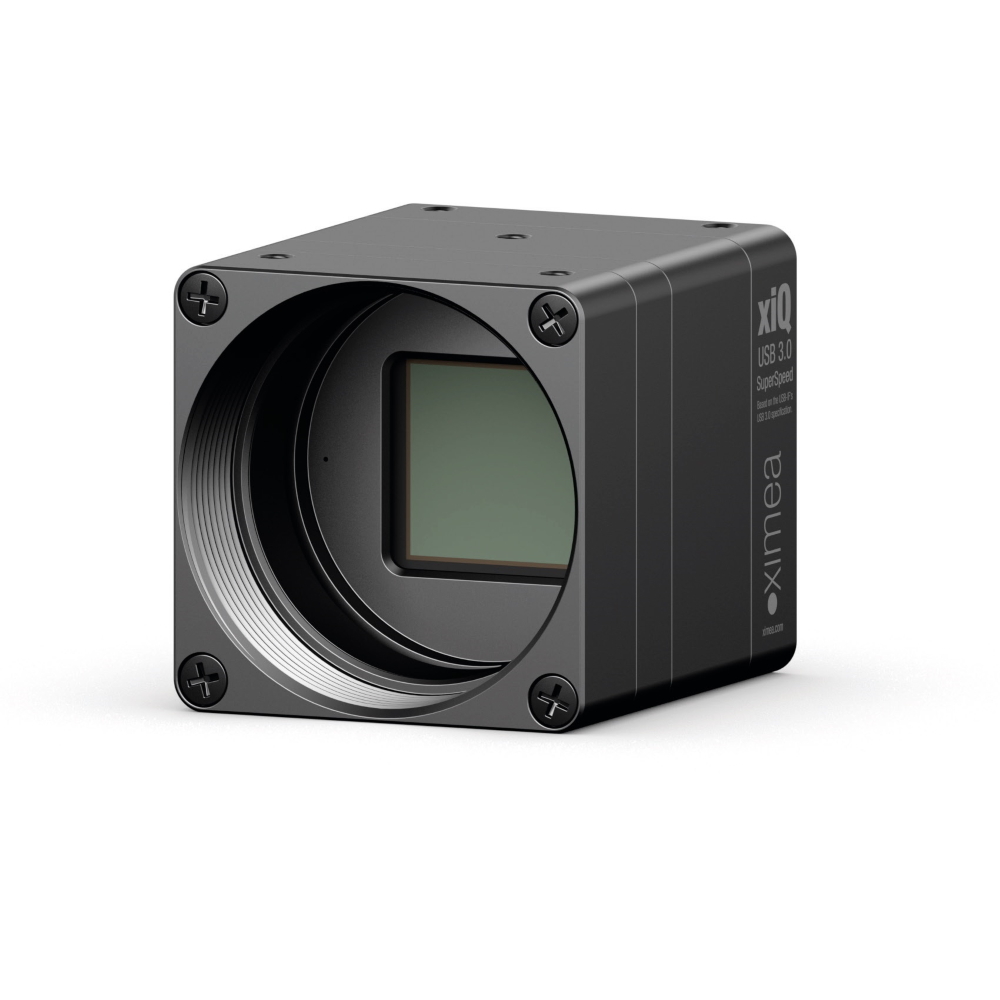

XIMEA XIQ CAMERA FAMILY
| Sensor | e2v EV76C661 |
| Mono/Color | Mono |
| Resolution | 1.3 MP |
| Size (H×V) | 1280 px × 1024 px |
| Interface | USB3 Micro-B |
| Sensor Format | 1/1.8" |
| Pixel Size | 5.3 µm × 5.3 µm |
| Frame Rate | 61 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MQ013RG-E2-S7 |
| Product Family | XIQ CAMERA FAMILY |
| Product Line | XIQ |
| Camera Category | Area Scan |
| Sensor Vendor | e2v |
| Sensor | EV76C661 |
| Shutter | Global shutter |
| Sensor Format | 1/1.8" |
| Sensor Diagonal | 8.7mm |
| Sensor Type | CMOS |
| Sensor Size | 6.8 x 5.4 mm |
| Resolution (H×V) | 1280 px × 1024 px |
| Resolution | 1.3 MP |
| Pixel Size (H×V) | 5.3 µm × 5.3 µm |
| Frame rate | 61 fps |
| Exposure Time | 100 µs to 1 s |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 68 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 7892.5 ke¯ |
| Dynamic Range | 50.2 dB |
| Signal-to-Noise Ratio | 38.8 dB |
| Interface | USB3 Micro-B |
| Image Data Interface | USB3 Micro-B |
| Pixel Bit Depth | 10 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 1 |
| Digital Output | 1 |
| Power Supply | 0.98 Watt |
| Power Requirements | 0.98 W |
| Housing Type | Standard housing |
| Housing Size | 26.4 mm × 26.4 mm × 32.8 mm |
| Weight | 30 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL USB 3.0 SuperSpeed USB3 Vision Compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MQ013RG-E2-S7 |
| Others |
