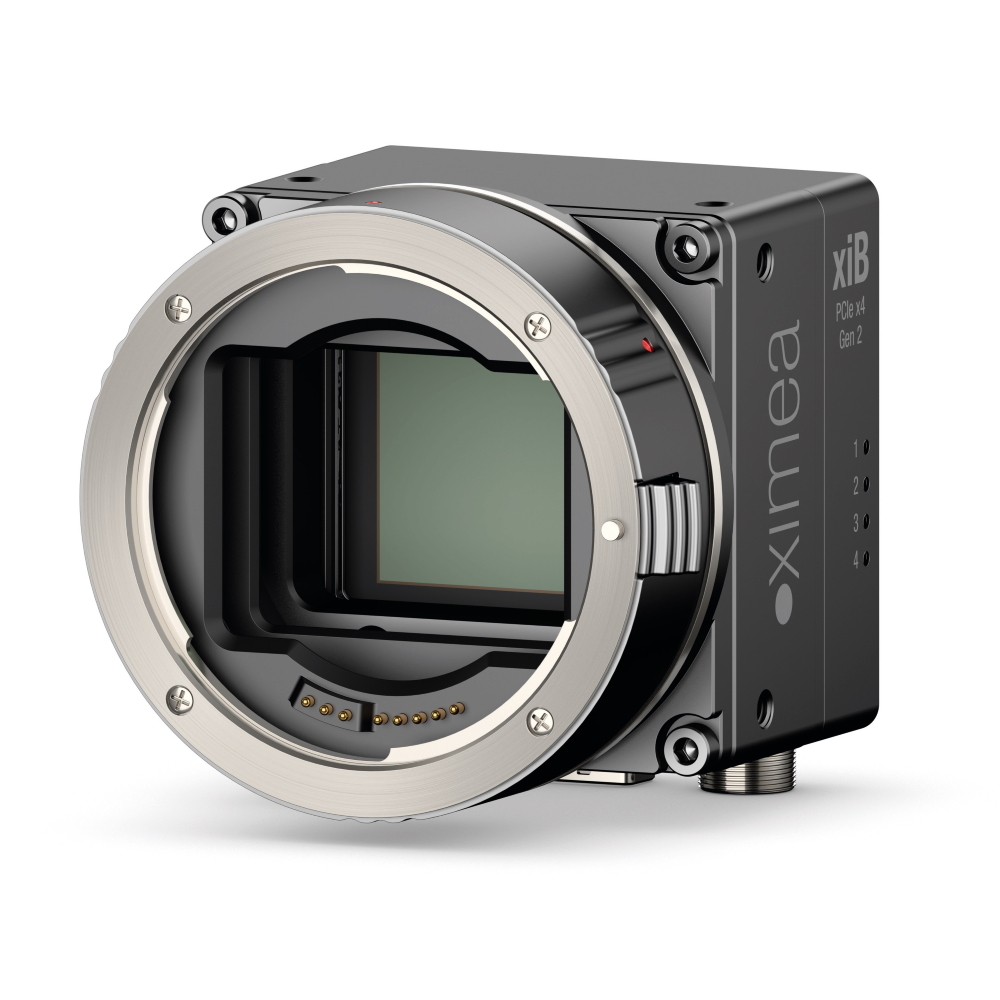

XIMEA XIB CAMERA FAMILY
| Sensor | CMOSIS CMV50000 |
| Mono/Color | Mono |
| Resolution | 47.5 MP |
| Size (H×V) | 7920 px × 6004 px |
| Interface | PCIe-iPass-X4G2 |
| Sensor Format | 35mm Full Frame |
| Pixel Size | 4.6 µm × 4.6 µm |
| Frame Rate | 30 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | CB500MG-CM |
| Product Family | XIB CAMERA FAMILY |
| Product Line | XIB |
| Camera Category | Area Scan |
| Sensor Vendor | CMOSIS |
| Sensor | CMV50000 |
| Shutter | Global shutter |
| Sensor Format | 35mm Full Frame |
| Sensor Diagonal | 45.7mm |
| Sensor Type | CMOS |
| Sensor Size | 36 x 27 mm |
| Resolution (H×V) | 7920 px × 6004 px |
| Resolution | 47.5 MP |
| Pixel Size (H×V) | 4.6 µm × 4.6 µm |
| Frame rate | 30 fps |
| Exposure Time | 100 µs to 17 s |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 61 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 14006.6 ke¯ |
| Dynamic Range | 63.8 dB |
| Signal-to-Noise Ratio | 41.7 dB |
| Interface | PCIe-iPass-X4G2 |
| Image Data Interface | PCIe-iPass-X4G2 |
| Pixel Bit Depth | 12 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 6 |
| Digital Output | 6 |
| Power Supply | 9 Watt |
| Power Requirements | 9 W |
| Housing Type | Standard housing |

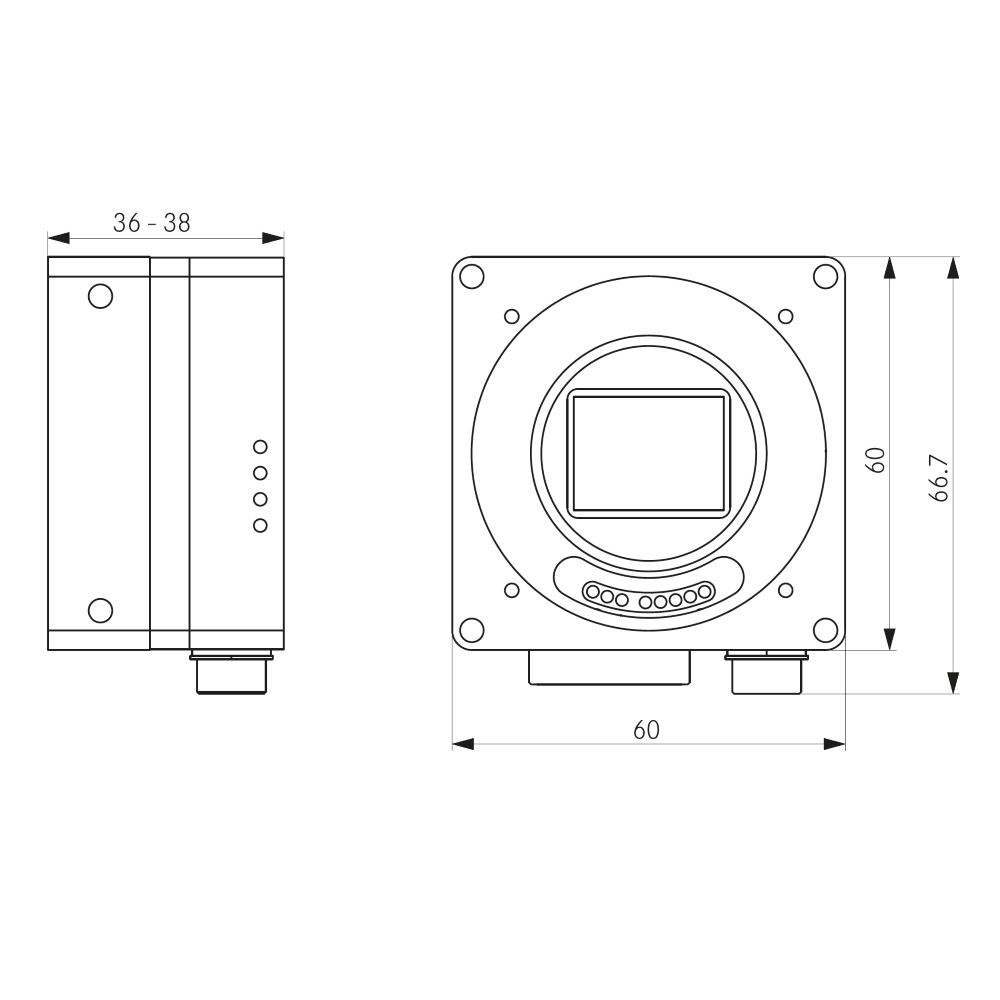

| Housing Size | 60 mm × 60 mm × 38 mm |
| Weight | 170 g |
| Lens Mount | EF-mount option |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL PCI Express External Cabling Specifications compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA CB500MG-CM |
| Others |
