XIMEA XIQ CAMERA FAMILY
| Sensor | CMOSIS CMV4000 |
| Mono/Color | Color |
| Resolution | 4.1 MP |
| Size (H×V) | 2048 px × 2048 px |
| Interface | USB3 Micro-B |
| Sensor Format | 1" |
| Pixel Size | 5.5 µm × 5.5 µm |
| Frame Rate | 90 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MQ042CG-CM-S7-BRD |
| Product Family | XIQ CAMERA FAMILY |
| Product Line | XIQ |
| Camera Category | Area Scan |
| Sensor Vendor | CMOSIS |
| Sensor | CMV4000 |
| Shutter | Global shutter |
| Sensor Format | 1" |
| Sensor Diagonal | 15.9mm |
| Sensor Type | CMOS |
| Sensor Size | 11 x 11 mm |
| Resolution (H×V) | 2048 px × 2048 px |
| Resolution | 4.1 MP |
| Pixel Size (H×V) | 5.5 µm × 5.5 µm |
| Frame rate | 90 fps |
| Exposure Time | 26 µs to 1 s |
| Mono/Color | Color |
| Spectrum | Visible |
| Quantum Efficiency | 48 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 7559.6 ke¯ |
| Dynamic Range | 53.0 dB |
| Signal-to-Noise Ratio | 38.3 dB |
| Interface | USB3 Micro-B |
| Image Data Interface | USB3 Micro-B |
| Pixel Bit Depth | 10 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 1 |
| Digital Output | 1 |
| Power Supply | 1.55 Watt |
| Power Requirements | 1.55 W |

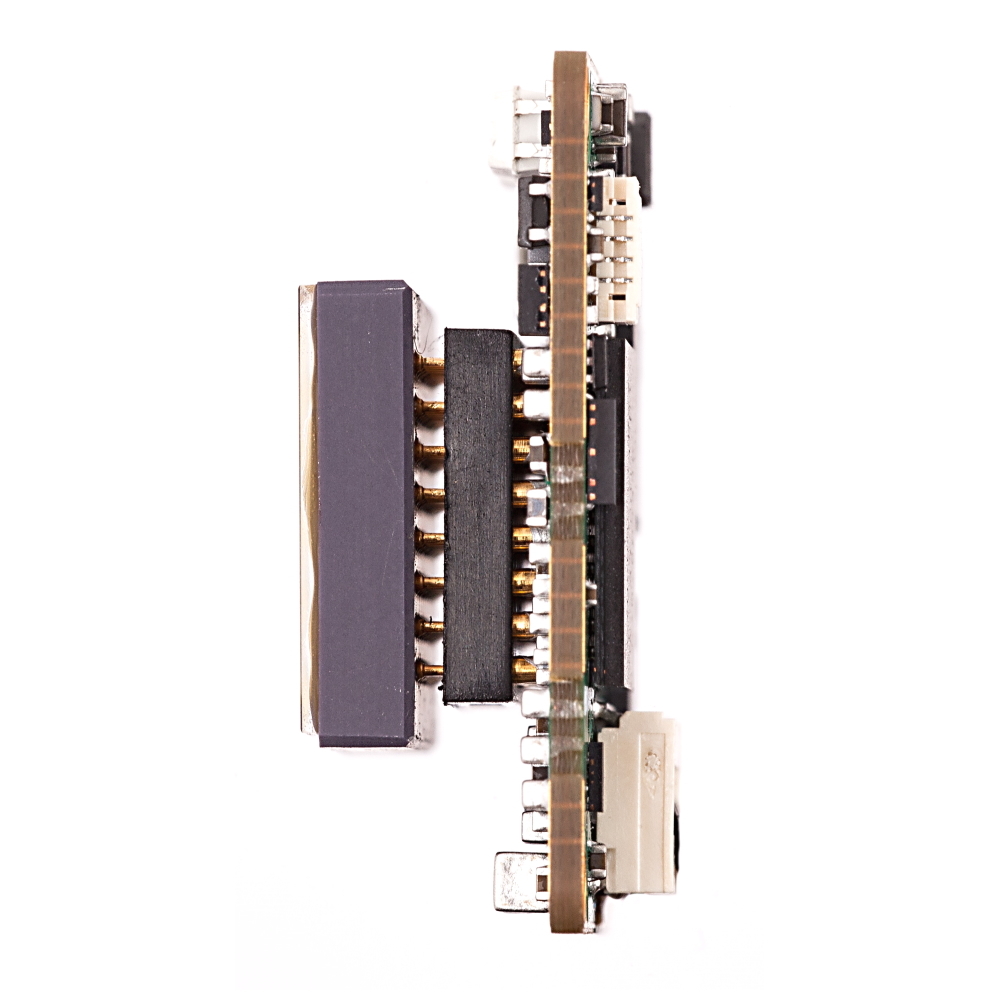

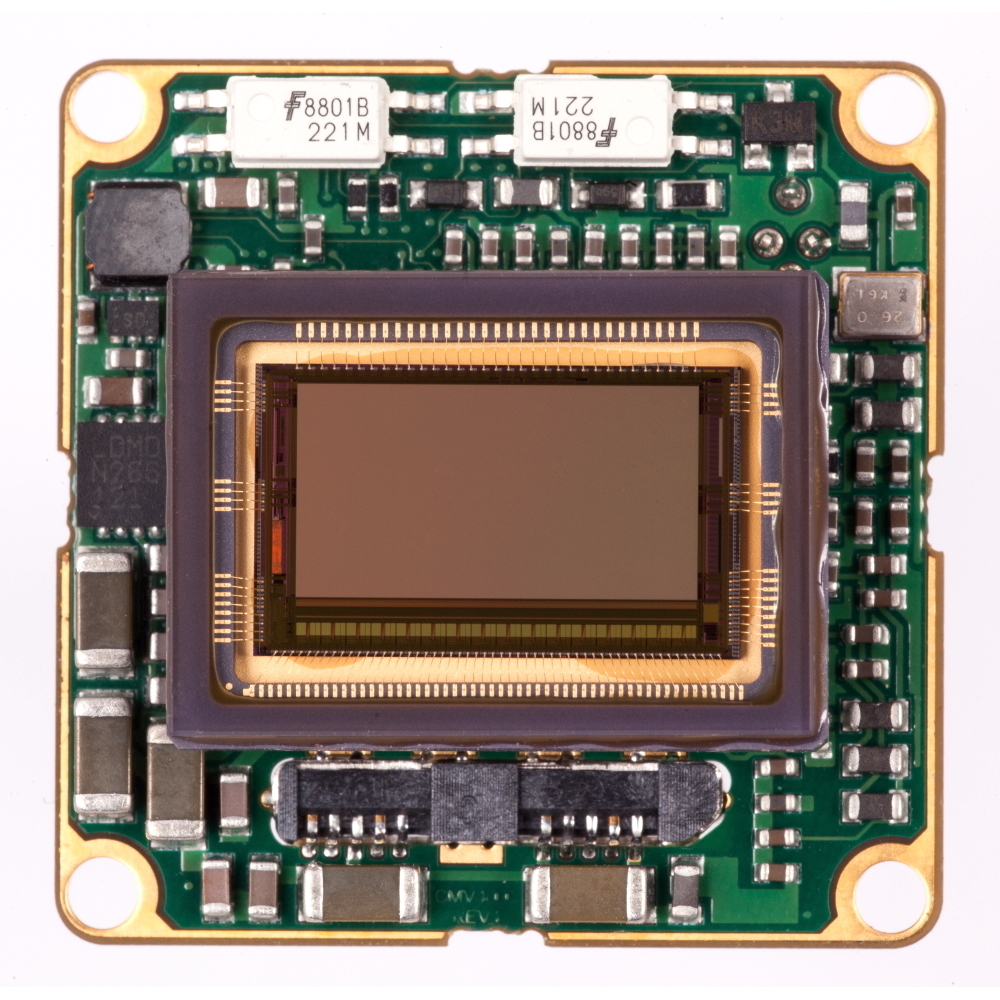

| Housing Type | Board level |
| Housing Size | 25.4 mm × 25.4 mm × 14.1 mm |
| Weight | 8 g |
| Lens Mount | No mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL USB 3.0 SuperSpeed USB3 Vision Compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MQ042CG-CM-S7-BRD |
| Others |
