XIMEA XIX CAMERA FAMILY
| Sensor | CMOSIS CMV2000 |
| Mono/Color | Mono |
| Resolution | 2.2 MP |
| Size (H×V) | 2048 px × 1088 px |
| Interface | PCIe-Flex-X2G2 |
| Sensor Format | 2/3" |
| Pixel Size | 5.5 µm × 5.5 µm |
| Frame Rate | 338 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MX022MG-CM-X2G2 |
| Product Family | XIX CAMERA FAMILY |
| Product Line | XIX |
| Camera Category | Area Scan |
| Sensor Vendor | CMOSIS |
| Sensor | CMV2000 |
| Shutter | Global shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 12.8mm |
| Sensor Type | CMOS |
| Sensor Size | 11 x 6 mm |
| Resolution (H×V) | 2048 px × 1088 px |
| Resolution | 2.2 MP |
| Pixel Size (H×V) | 5.5 µm × 5.5 µm |
| Frame rate | 338 fps |
| Exposure Time | 25 µs to 17 s |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 65 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 11359.2 ke¯ |
| Dynamic Range | 58.3 dB |
| Signal-to-Noise Ratio | 40.8 dB |
| Interface | PCIe-Flex-X2G2 |
| Image Data Interface | PCIe-Flex-X2G2 |
| Pixel Bit Depth | 10 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 3 |
| Digital Output | 3 |
| Power Supply | 2.9 Watt |
| Power Requirements | 2.9 W |
| Housing Type | Standard housing |

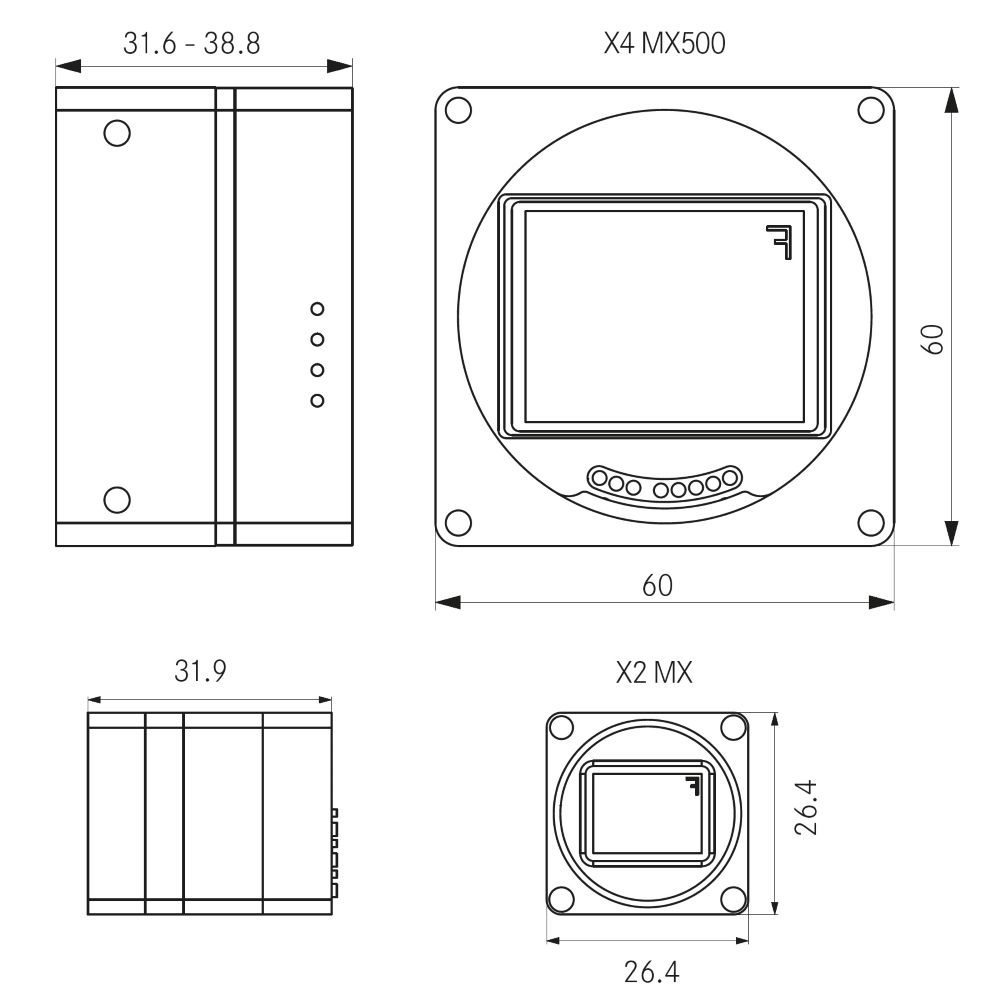

| Housing Size | 26.4 mm × 26.4 mm × 30.9 mm |
| Weight | 30 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL PCI Express External Cabling Specifications compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MX022MG-CM-X2G2 |
