Show technical details of the camera.
XIMEA XIB-64 CAMERA FAMILY
| Sensor | CMOSIS CMV12000 |
| Mono/Color | Mono |
| Resolution | 12.5 MP |
| Size (H×V) | 4096 px × 3072 px |
| Interface | PCIe-iPass-X8G3 |
| Sensor Format | APS-C |
| Pixel Size | 5.5 µm × 5.5 µm |
| Frame Rate | 335 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | CB120MG-CM-X8G3 |
| Product Family | XIB-64 CAMERA FAMILY |
| Product Line | XIB-64 |
| Camera Category | Area Scan |
| Sensor Vendor | CMOSIS |
| Sensor | CMV12000 |
| Shutter | Global shutter |
| Sensor Format | APS-C |
| Sensor Diagonal | 28.2mm |
| Sensor Type | CMOS |
| Sensor Size | 22 x 16 mm |
| Resolution (H×V) | 4096 px × 3072 px |
| Resolution | 12.5 MP |
| Pixel Size (H×V) | 5.5 µm × 5.5 µm |
| Frame rate | 335 fps |
| Exposure Time | 16 µs to 82 s |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 46 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 9895.9 ke¯ |
| Dynamic Range | 57.0 dB |
| Signal-to-Noise Ratio | 40.3 dB |
| Interface | PCIe-iPass-X8G3 |
| Image Data Interface | PCIe-iPass-X8G3 |
| Pixel Bit Depth | 8, 10, 12 bits |
| Synchronization | |
| Exposure Control | Hardware software trigger input exposure strobe output busy output |
| Digital Input | 6 |
| Digital Output | 6 |
| Power Supply | 17.8 Watt |
| Power Requirements | 17.8 W |
| Housing Type | Standard housing |

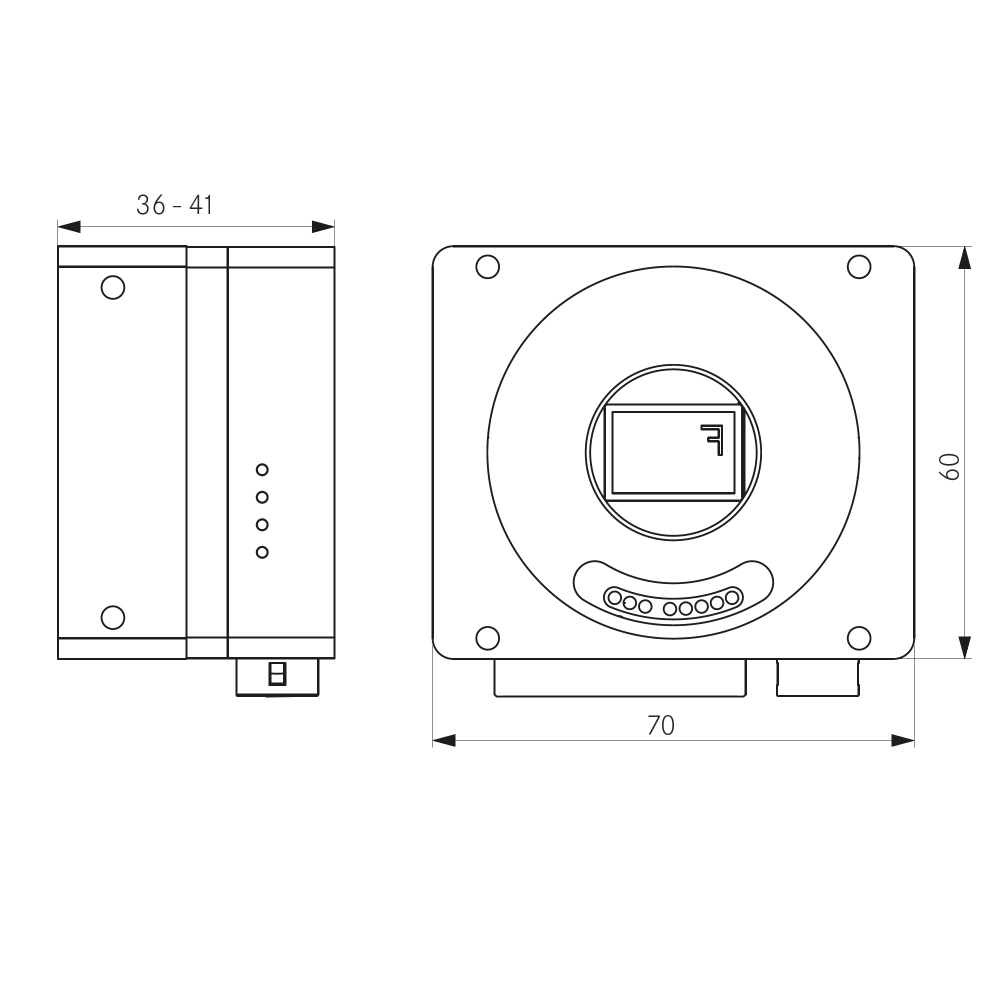

| Housing Size | 70 mm × 60 mm × 40 mm |
| Weight | 280 g |
| Lens Mount | EF-mount option |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS GenICam/GenTL PCI Express External Cabling Specifications compliant |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA CB120MG-CM-X8G3 |
| Others |
