Show technical details of the camera.
XIMEA XIMU CAMERA FAMILY
| Sensor | Aptina MT9P031 |
| Mono/Color | Color |
| Resolution | 5.0 MP |
| Size (H×V) | 2592 px × 1944 px |
| Interface | USB2 Flex cable |
| Sensor Format | 1/2.5" |
| Pixel Size | 2.2 µm × 2.2 µm |
| Frame Rate | 4.6 fps |
| List Price |
| Camera Manufacturer | XIMEA |
| Product Name | MU9PC-MBRD |
| Product Family | XIMU CAMERA FAMILY |
| Product Line | XIMU |
| Camera Category | Area Scan |
| Sensor Vendor | Aptina |
| Sensor | MT9P031 |
| Shutter | Rolling shutter, Global reset release |
| Sensor Format | 1/2.5" |
| Sensor Diagonal | 7.1mm |
| Sensor Type | CMOS |
| Sensor Size | 5.7 x 4.3 mm |
| Resolution (H×V) | 2592 px × 1944 px |
| Resolution | 5.0 MP |
| Pixel Size (H×V) | 2.2 µm × 2.2 µm |
| Frame rate | 4.6 fps |
| Exposure Time | 110 µs to 10 s |
| Mono/Color | Color |
| Spectrum | Visible |

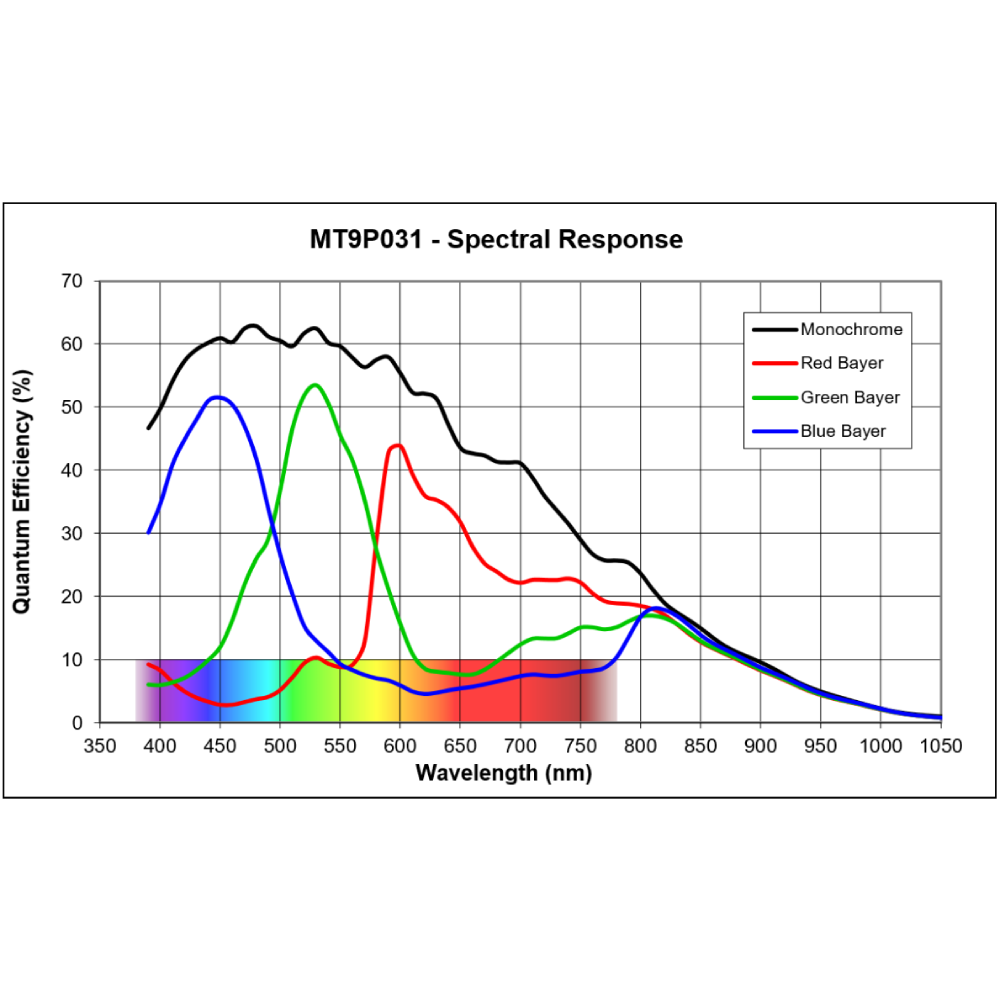

| Quantum Efficiency | 53 % |
| Dark Noise | 0 e¯ |
| Saturation Capacity | 0 ke¯ |
| Dynamic Range | 59.0 dB |
| Signal-to-Noise Ratio | 37 dB |
| Interface | USB2 Flex cable |
| Image Data Interface | USB2 Flex cable |
| Pixel Bit Depth | 12 bits |
| Synchronization | |
| Exposure Control | Hardware trigger input software trigger exposure active frame active trigger ready exposure active pulse busy |
| Digital Input | 4 |
| Digital Output | 4 |
| Power Supply | 0.76 Watt |
| Power Requirements | 0.76 W |
| Housing Type | Board level |

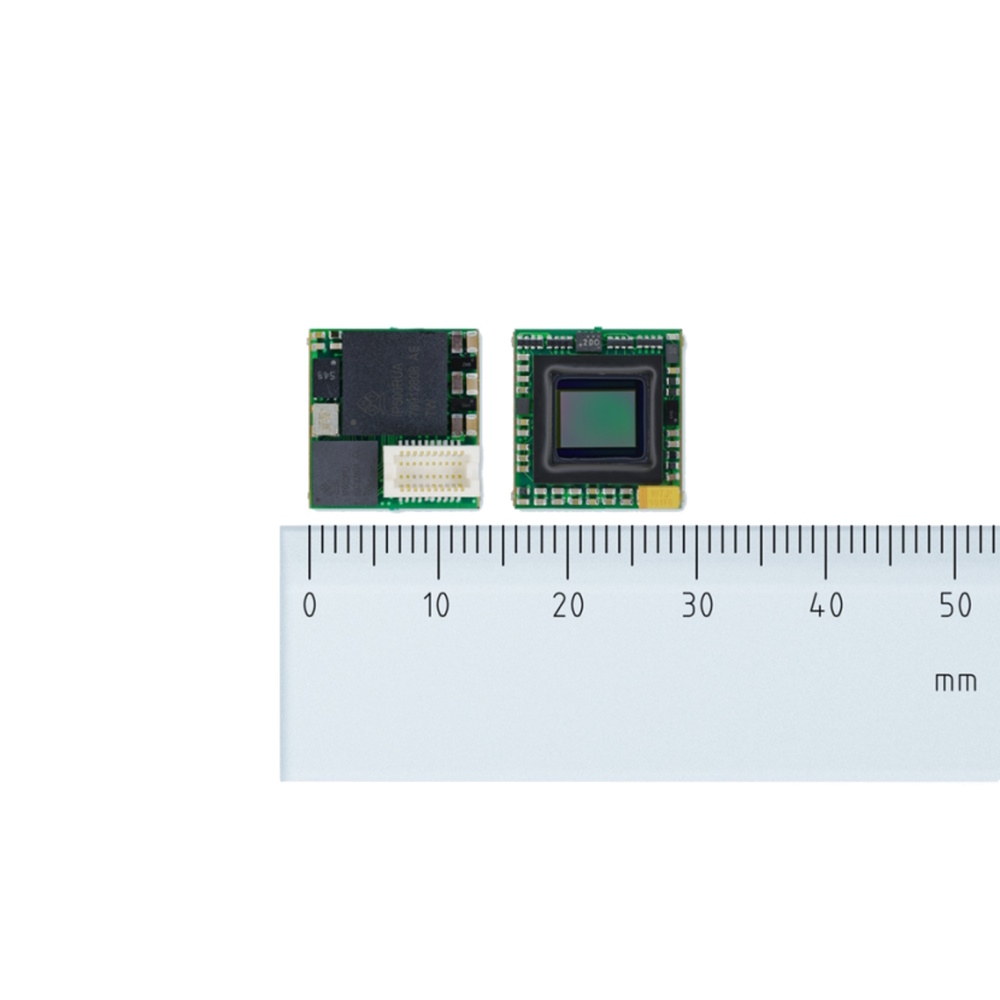

| Housing Size | 14 mm × 13.2 mm × 5.5 mm |
| Weight | 1.2 g |
| Lens Mount | No mount |
| Operating Temperature | 0 - 50 °C |
| Compliances | CE FCC RoHS WEEE GenICam/GenTL Universal Serial Bus Specification |
| Warranty | 2-year warranty |
| Standards |
| Source Link | XIMEA MU9PC-MBRD |
| Others |
