Camera Details

Show technical details of the camera.

TRX163S-CC

LUCID Triton10 16.2 MP Model (Sony IMX542)

Sensor Sony IMX542
Mono/Color Color
Resolution 16.2 MP
Size (H×V) 5320 px × 3032 px
Interface 10GigE
Sensor Format 1.1"
Pixel Size 2.74 µm × 2.74 µm
Frame Rate 52.4 fps
List Price USD $1990

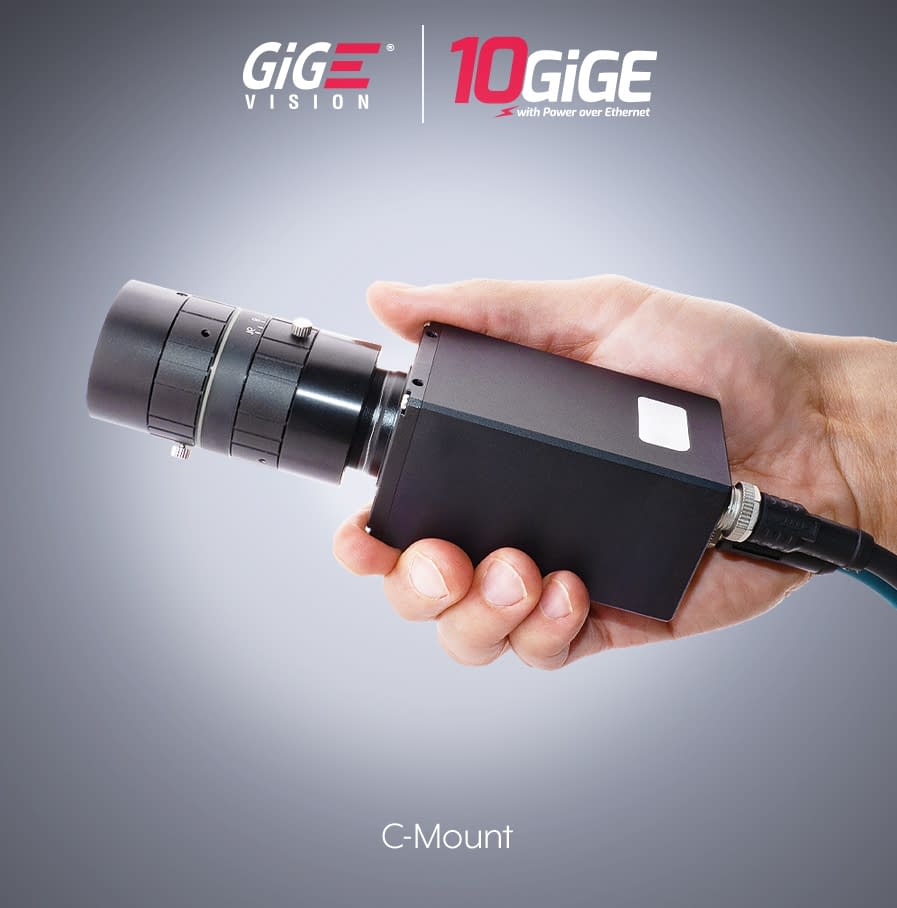

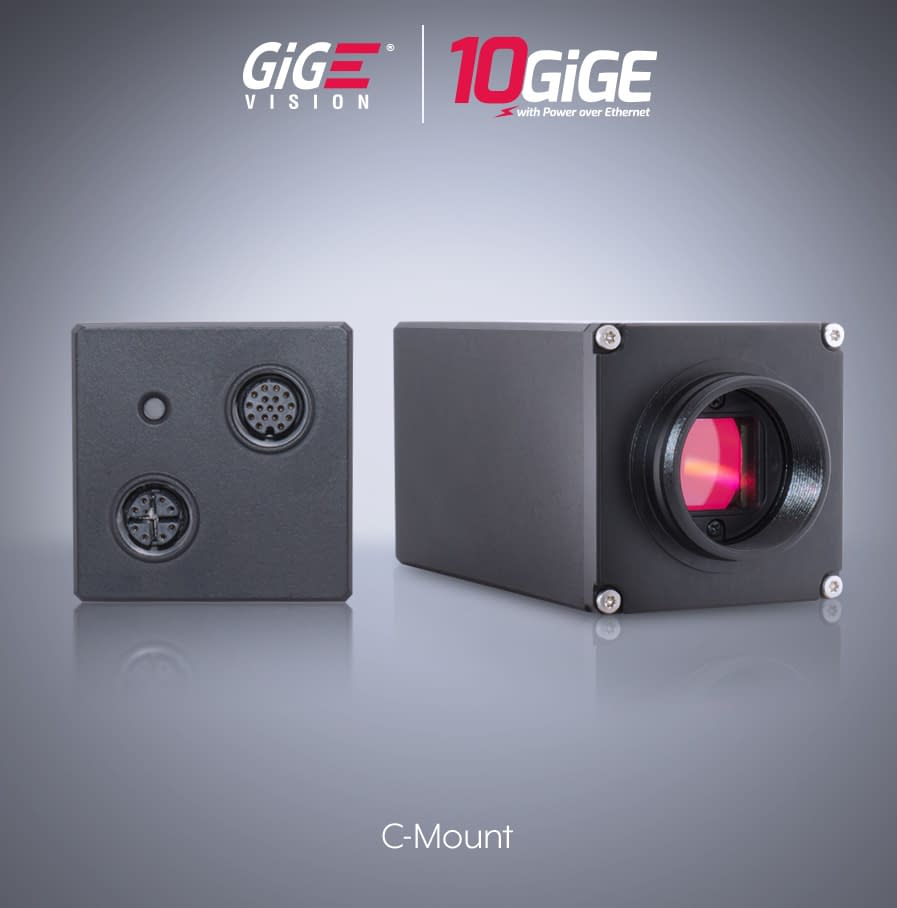

The Triton10 machine vision camera delivers cost-effective 10GigE performance with Remote Direct Memory Access (RDMA). Priced competitively against many 5GigE cameras, it offers exceptional value. In addition to its 10GigE RDMA (RoCEv2) Zero-Copy technology, the Triton10 also supports standard GigE Vision UDP streaming protocols at 10GigE, 5GigE, 2.5GigE and 1GigE for broad compatibility within existing applications. Its IP67 rating ensures dust and water protection, making it ideal for challenging environments. With a compact size of 44 x 44 x 82mm, it can fit more easily into tighter spaces. Featuring Active Sensor Alignment, Power over Ethernet (PoE), and a 17-pin M12 GPIO, this camera is designed to meet the most demanding machine vision applications.
General Information
Camera ManufacturerLUCID
Product NameTRX163S-CC
Product FamilyTriton10 16.2 MP Model (Sony IMX542)
Product LineTriton10
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX542
ShutterGlobal
Sensor Format1.1"
Sensor Diagonal16.8mm
Sensor TypeCMOS
Sensor Size---
Resolution (H×V)5320 px × 3032 px
Resolution16.2 MP
Pixel Size (H×V)2.74 µm × 2.74 µm
Frame rate52.4 FPS (52.4 FPS) @ 16.2 MP (8 Bit ADC mode)1 42.8 FPS (42.8 FPS) @ 16.2 MP (10 Bit ADC mode) 35.9 FPS (35.9 FPS) @ 16.2 MP (12 Bit ADC mode)
Exposure Time11.296 μs to 10 s (Normal), 2.296 μs to 2.464 μs (Short Mode)
Mono/ColorColor
SpectrumVisible
EMVA 1288
Quantum Efficiency56.36 %
Dark Noise2.18 e¯
Saturation Capacity9366 ke¯
Dynamic Range70.5 dB
Signal-to-Noise Ratio39.71 dB
Camera Data
Interface10GigE
Image Data Interface10GBASE-T*, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX; M12, PoE (*10GBASE-T runs in Short Reach Mode, 25m cable length max)
Pixel Bit Depth
8, 10, 12 bit
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)
Digital Input3
Digital Output5
Power SupplyPoE (IEEE 802.3af) or 12-24 V through GPIO
Power Requirements7.5 W
Housing
Housing TypeBox
Housing Size44 mm × 44 mm × 82 mm
Weight243 g
Lens Mount
C-mount
Operating Temperature-20 to 55°C ambient
Conformity
Compliances
CE
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID TRX163S-CC
Others
Technical Drawing
/lucid/assets/triton10-16-2-mp-imx542_outline_1.svg
