Camera Details

Show technical details of the camera.

TRT245S-CC

LUCID Triton2 24.5 MP Model (IMX540)

Sensor Sony IMX540
Mono/Color Color
Resolution 24.5 MP
Size (H×V) 5320 px × 4600 px
Interface 2.5GigE
Sensor Format 1.2"
Pixel Size 2.74 µm × 2.74 µm
Frame Rate 11.3 fps
List Price USD $1940
The Triton2 offers unprecedented performance in a cost-effective, compact camera. The adoption of a 2.5 GigE (300 MB/s) interface enables higher bandwidth than 1 GigE cameras without compromising on size, thermal management, or Power over Ethernet (PoE) support. Upgrade your 1GigE camera today and take advantage of 2.5x times faster frame rates in a Factory Tough™ industrial camera with: Active sensor alignment; Power over Ethernet (PoE) ; Wide operating temperature range (-20 to 55°C ambient); Physical shock and vibration protection; EMC industrial immunity; IP67 dust and water protection;
General Information
Camera ManufacturerLUCID
Product NameTRT245S-CC
Product FamilyTriton2 24.5 MP Model (IMX540)
Product LineTriton2
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX540
ShutterGlobal Shutter
Sensor Format1.2"
Sensor Diagonal19.3mm
Sensor TypeCMOS
Sensor Size---
Resolution (H×V)5320 px × 4600 px
Resolution24.5 MP
Pixel Size (H×V)2.74 µm × 2.74 µm
Frame rate11.3 FPS (11.3 FPS) @ 24.5 MP
Exposure Time21.272 μs to 10 s (Normal) / 2.296 μs to 2.464 μs (Short Mode)
Mono/ColorColor
SpectrumVisible
EMVA 1288
Quantum Efficiency57.91 %
Dark Noise2.17 e¯
Saturation Capacity9443 ke¯
Dynamic Range70.6 dB
Signal-to-Noise Ratio39.75 dB
Camera Data
Interface2.5GigE

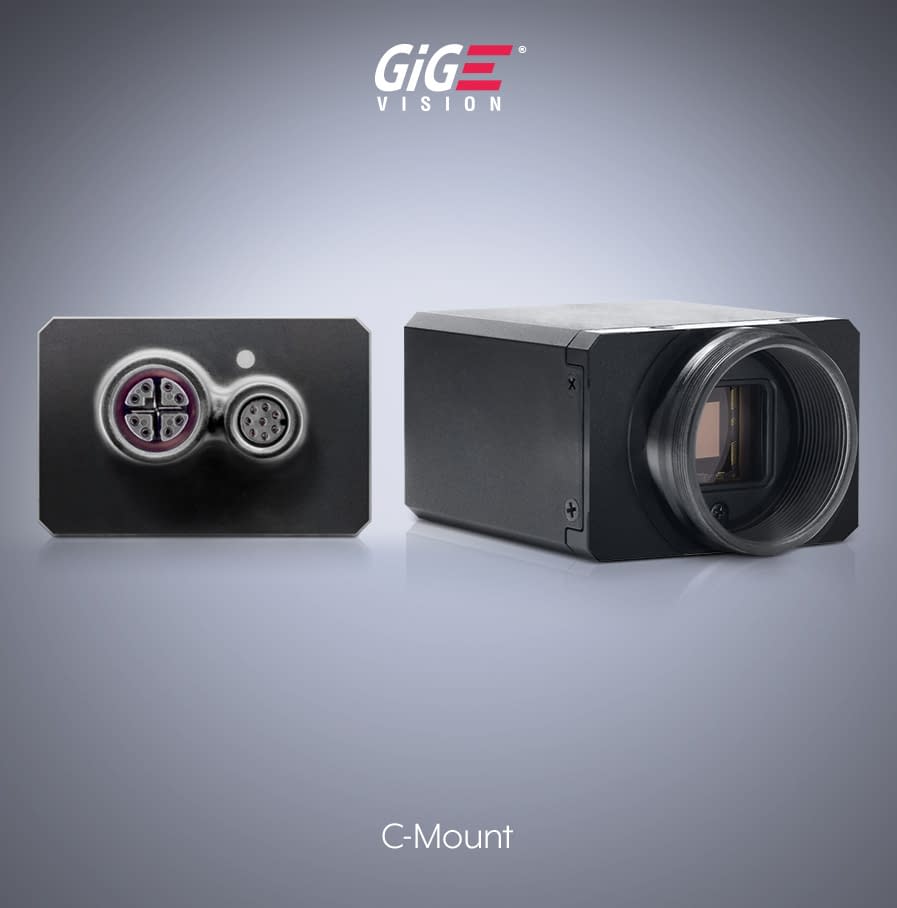

Image Data Interface2.5GBASE-T / 1000BASE-T M12 (8-Pin X-Coded), PoE
Pixel Bit Depth
12 bit
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)

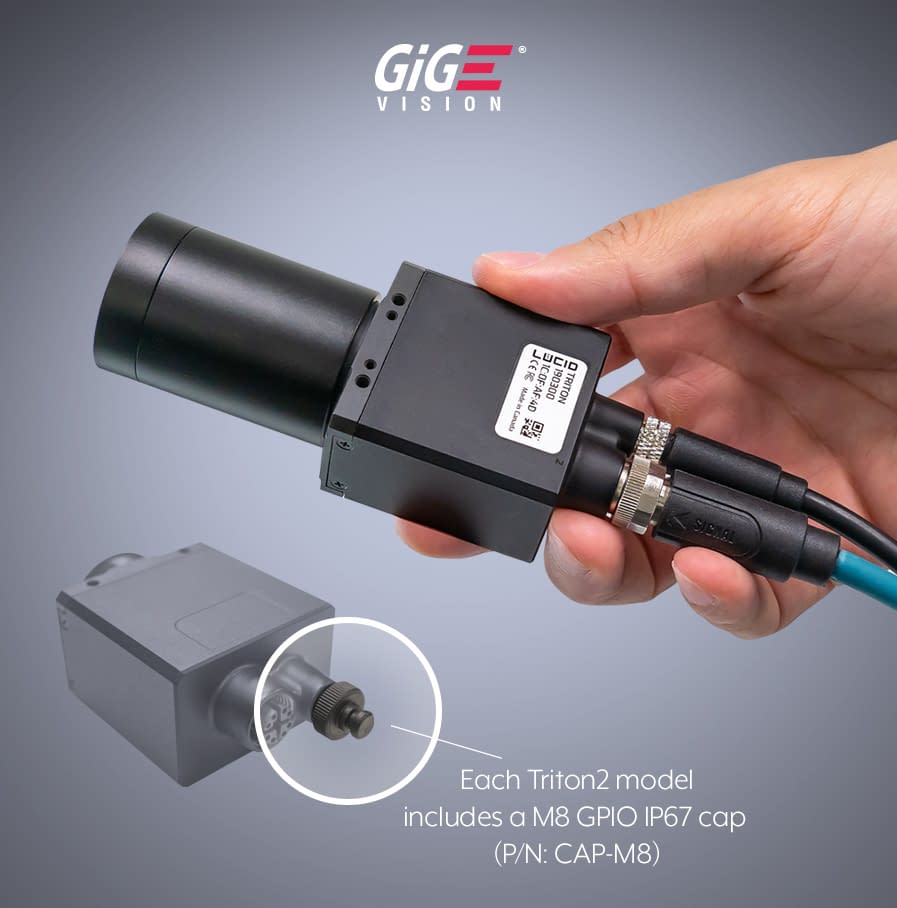

Digital Input3
Digital Output3
Power SupplyPoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements4.5 W
Housing
Housing TypeBox

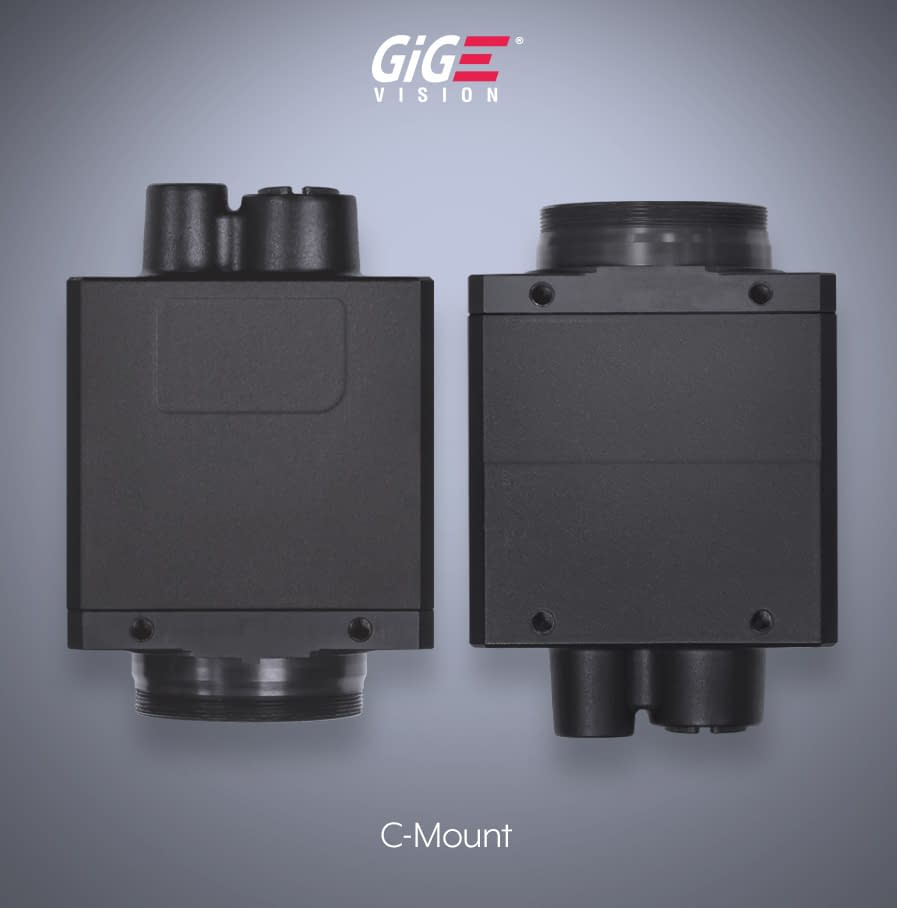

Housing Size44 mm × 29 mm × 45.3 mm
Weight90 g

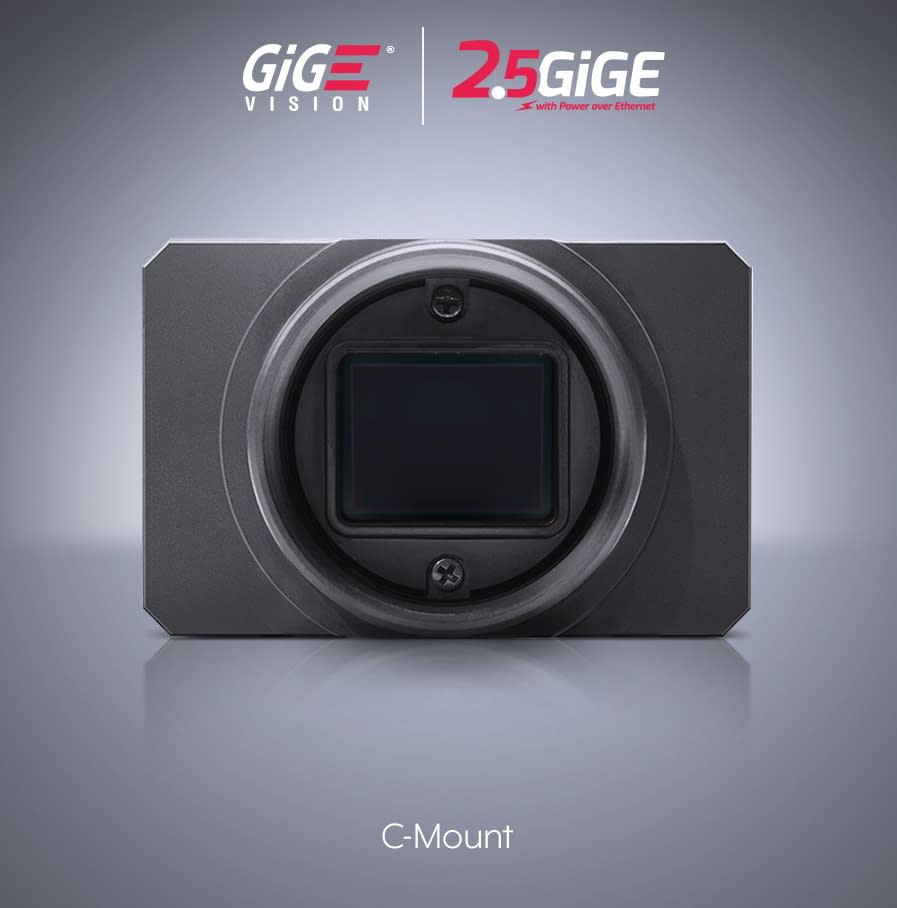

Lens Mount
C-mount
Operating Temperature-20 to 55°C ambient
Conformity
Compliances
CE
KC
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID TRT245S-CC
Others
Technical Drawing
/lucid/assets/triton2-24-mp-imx540_outline_1.svg
