TRT200S-CC

LUCID Triton2 20 MP Model (IMX183)

Sensor Sony IMX183
Mono/Color Color
Resolution 20.0 MP
Size (H×V) 5472 px × 3648 px
Interface 2.5GigE
Sensor Format 1"
Pixel Size 2.4 µm × 2.4 µm
Frame Rate 9 fps
List Price USD $645

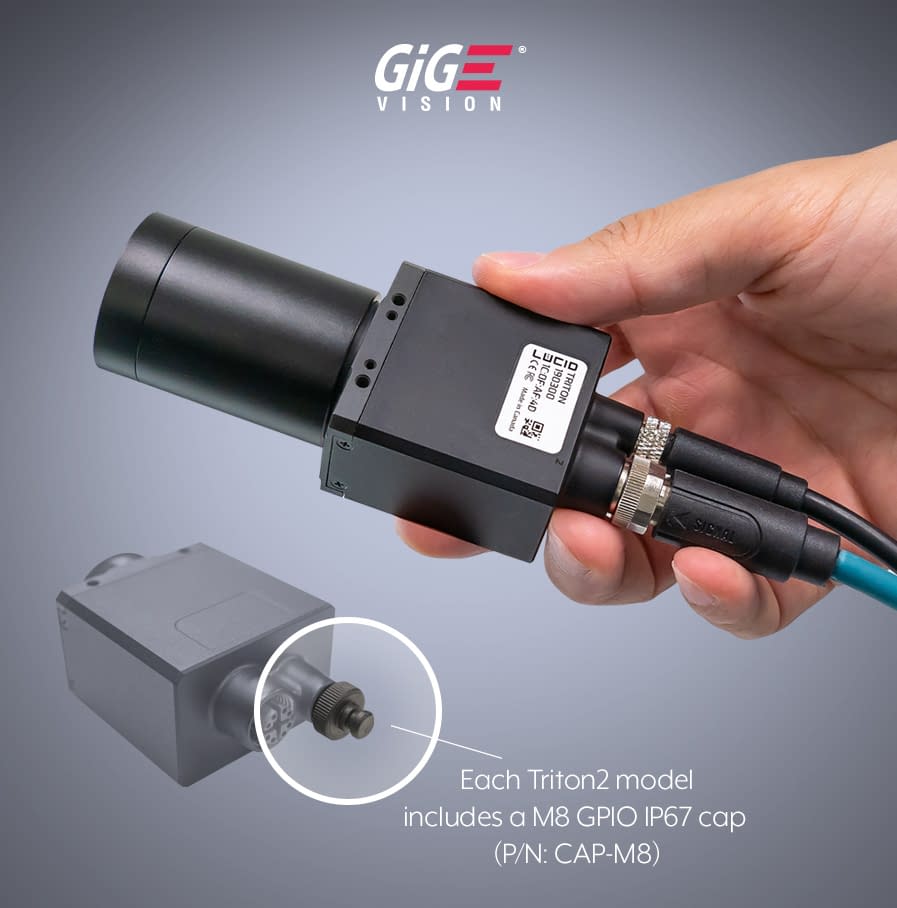

The Triton2 offers unprecedented performance in a cost-effective, compact camera. The adoption of a 2.5 GigE (300 MB/s) interface enables higher bandwidth than 1 GigE cameras without compromising on size, thermal management, or Power over Ethernet (PoE) support. Upgrade your 1GigE camera today and take advantage of 2.5x times faster frame rates in a Factory Tough™ industrial camera with: Active sensor alignment; Power over Ethernet (PoE) ; Wide operating temperature range (-20 to 55°C ambient); Physical shock and vibration protection; EMC industrial immunity; IP67 dust and water protection;
General Information
Camera ManufacturerLUCID
Product NameTRT200S-CC
Product FamilyTriton2 20 MP Model (IMX183)
Product LineTriton2
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX183
ShutterRolling with global reset
Sensor Format1"
Sensor Diagonal15.86mm
Sensor TypeCMOS
Sensor Size---
Resolution (H×V)5472 px × 3648 px
Resolution20.0 MP
Pixel Size (H×V)2.4 µm × 2.4 µm
Frame rate9 FPS (9 FPS) @ 20 MP
Exposure Time0.563 s to 2.5 s
Mono/ColorColor
SpectrumVisible
EMVA 1288
Quantum Efficiency74.19 %
Dark Noise3.17 e¯
Saturation Capacity14792 ke¯
Dynamic Range71.7 dB
Signal-to-Noise Ratio41.7 dB
Camera Data
Interface2.5GigE
Image Data Interface2.5GBASE-T / 1000BASE-T M12 (8-Pin X-Coded), PoE
Pixel Bit Depth
12 bit
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)
Digital Input3
Digital Output3
Power SupplyPoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements4.5 W
Housing
Housing TypeBox
Housing Size44 mm × 29 mm × 45.3 mm
Weight90 g

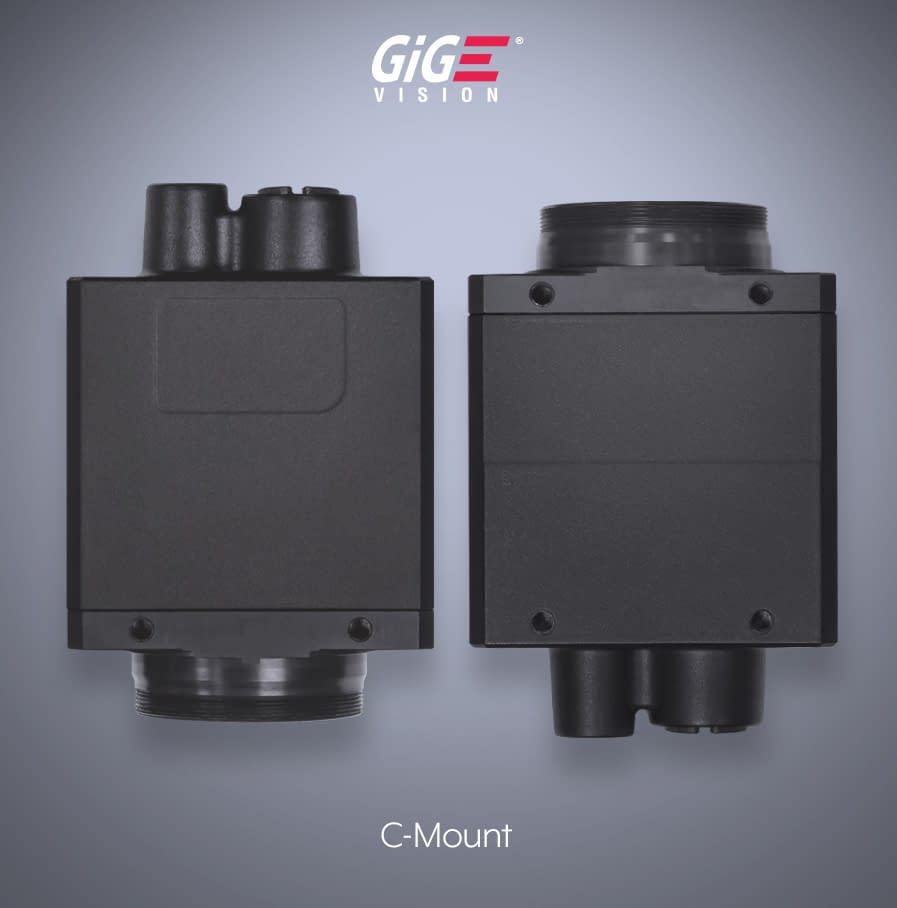

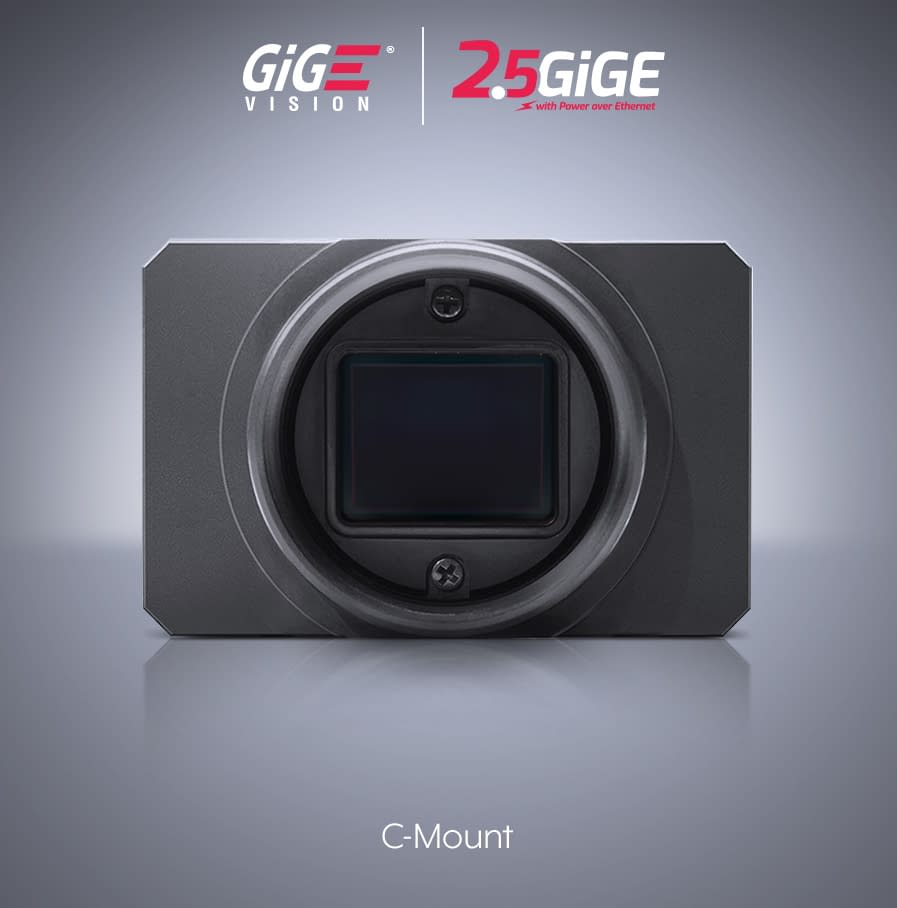

Lens Mount
C-mount
Operating Temperature-20 to 55°C ambient
Conformity
Compliances
CE
KC
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID TRT200S-CC
Others
Technical Drawing
/lucid/assets/triton2-20-mp-imx183_outline_1.svg
