Camera Details

Show technical details of the camera.

TRT120S-CC

LUCID Triton2 12.3 MP Model (IMX304)

Sensor Sony IMX304
Mono/Color Color
Resolution 1.0 MP
Size (H×V)
Interface 2.5GigE
Sensor Format 1.1"
Pixel Size 3.45 µm × 3.45 µm
Frame Rate 22.8 fps
List Price USD $1175
The Triton2 offers unprecedented performance in a cost-effective, compact camera. The adoption of a 2.5 GigE (300 MB/s) interface enables higher bandwidth than 1 GigE cameras without compromising on size, thermal management, or Power over Ethernet (PoE) support. Upgrade your 1GigE camera today and take advantage of 2.5x times faster frame rates in a Factory Tough™ industrial camera with: Active sensor alignment; Power over Ethernet (PoE) ; Wide operating temperature range (-20 to 55°C ambient); Physical shock and vibration protection; EMC industrial immunity; IP67 dust and water protection;
General Information
Camera ManufacturerLUCID
Product NameTRT120S-CC
Product FamilyTriton2 12.3 MP Model (IMX304)
Product LineTriton2
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX304
ShutterGlobal
Sensor Format1.1"
Sensor Diagonal17.6mm
Sensor TypeCMOS
Sensor Size---
Resolution (H×V)
Resolution1.0 MP
Pixel Size (H×V)3.45 µm × 3.45 µm
Frame rate22.6 FPS (22.8 FPS) @ 12.3 MP
Exposure Time28.7 μs to 10 s (Normal) / 1.48 μs to 16.112 μs (Short Mode)
Mono/ColorColor
SpectrumVisible
EMVA 1288
Quantum Efficiency61.1 %
Dark Noise2.24 e¯
Saturation Capacity10610 ke¯
Dynamic Range71.4 dB
Signal-to-Noise Ratio40.26 dB
Camera Data
Interface2.5GigE

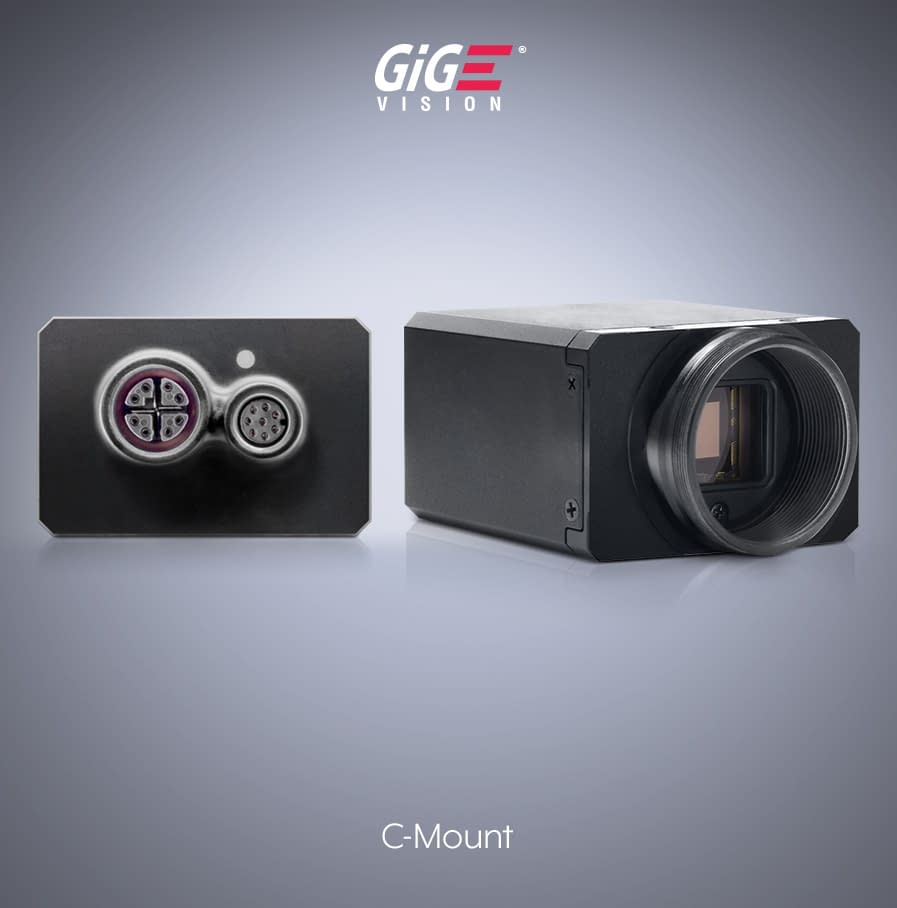

Image Data Interface2.5GBASE-T / 1000BASE-T M12 (8-Pin X-Coded), PoE
Pixel Bit Depth
12 bit
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)
Digital Input3
Digital Output3
Power SupplyPoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements4.5 W
Housing
Housing TypeBox
Housing Size44 mm × 29 mm × 45.3 mm
Weight90 g

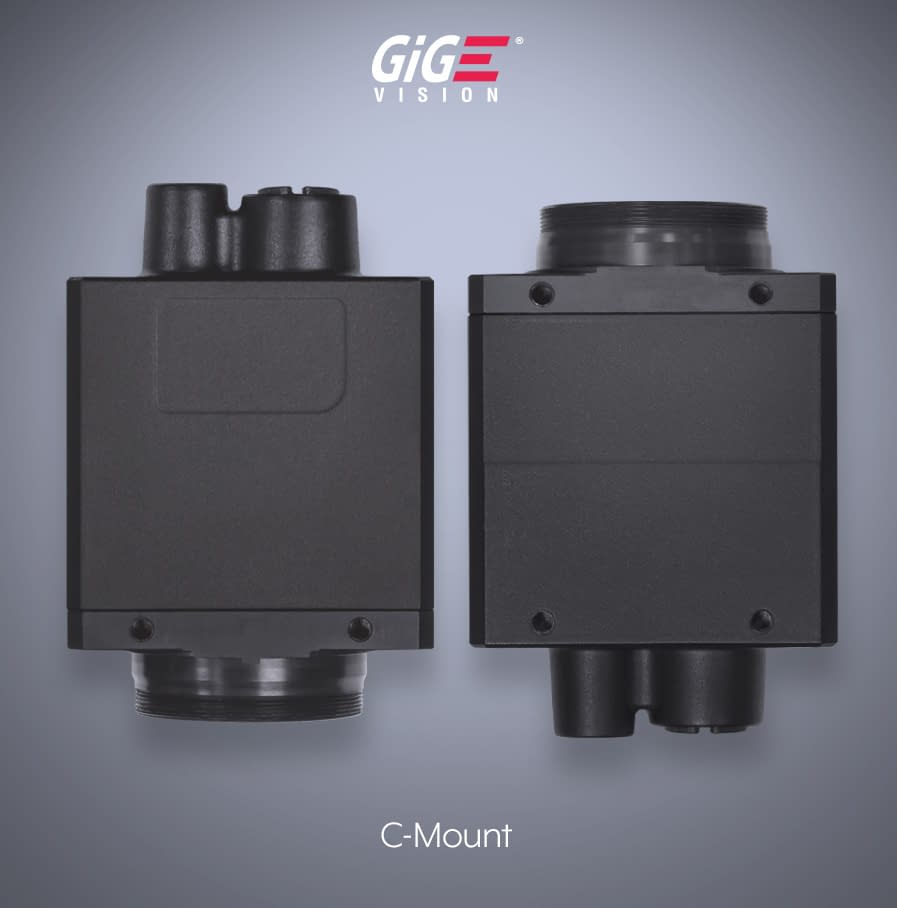

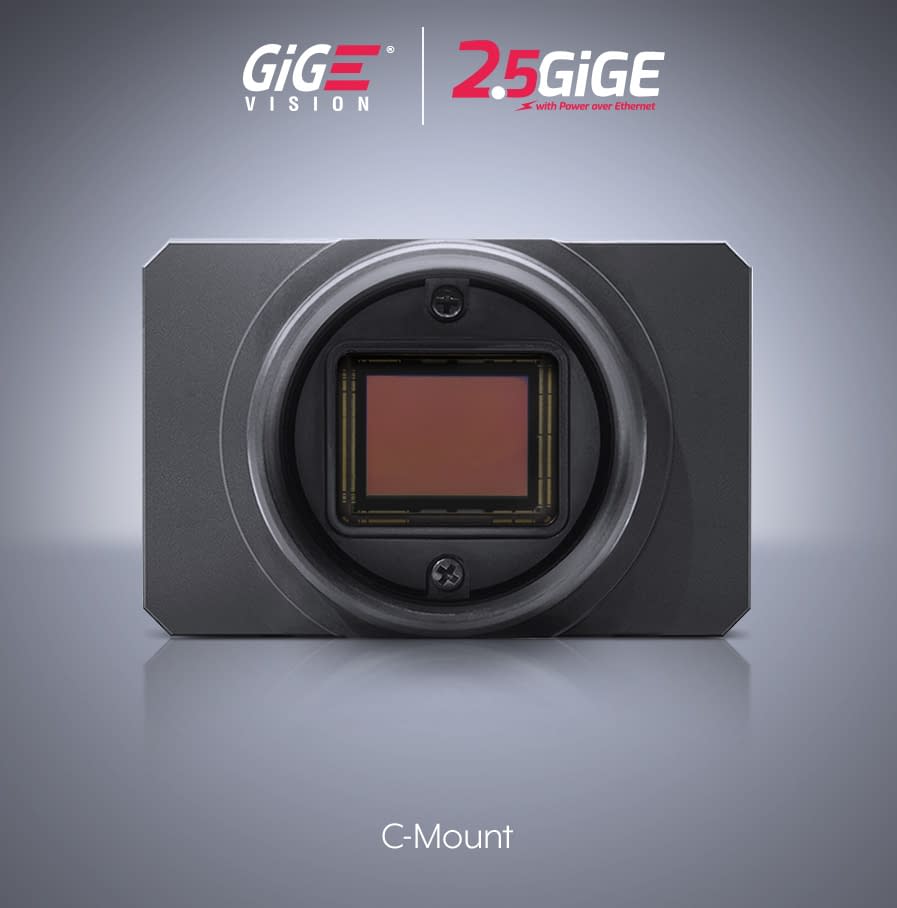

Lens Mount
C-mount
Operating Temperature-20 to 55°C ambient
Conformity
Compliances
CE
KC
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID TRT120S-CC
Others
Technical Drawing
/lucid/assets/triton2-12-3-mp-imx304_outline_1.svg
