Camera Details

Show technical details of the camera.

TRT053S-WC

LUCID Triton2 SWIR 5.2MP Model (Sony IMX992)

Sensor Sony IMX992
Mono/Color Mono
Resolution 5.2 MP
Size (H×V) 2560 px × 2048 px
Interface 2.5GigE
Sensor Format 1/1.4"
Pixel Size 3.45 µm × 3.45 µm
Frame Rate 49.4 fps
List Price USD $20400
LUCID’s Atlas, Triton and Triton2 SWIR cameras are IP67, GigE Vision PoE cameras featuring wide-band and high-sensitivity Sony SenSWIR 5.2 MP IMX992, 3.2 MP IMX993, 1.3 MP IMX990, and 0.3 MP IMX991 InGaAs sensors, capable of capturing images across both visible and invisible light spectrums, and boasting miniaturized pixel sizes of 3.45µm (IMX992, IMX993) and 5µm (IMX990, IMX991). The camera’s capability of capturing on the short-wavelength infrared light spectrum opens up a world of industrial applications with greater precision in fruit inspection and sorting, packaging, IR microscopy, semiconductor inspection, material sorting and more.
General Information
Camera ManufacturerLUCID
Product NameTRT053S-WC
Product FamilyTriton2 SWIR 5.2MP Model (Sony IMX992)
Product LineTriton2 SWIR
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX992
ShutterGlobal
Sensor Format1/1.4"
Sensor Diagonal11.4mm
Sensor TypeSWIR
Sensor Size---
Resolution (H×V)2560 px × 2048 px
Resolution5.2 MP
Pixel Size (H×V)3.45 µm × 3.45 µm
Frame rate49.4 FPS (49.4 FPS) @ 5.2 MP (8 Bit ADC mode) 49.4 FPS (49.4 FPS) @ 5.2 MP (10 Bit ADC mode) 49.4 FPS (49.4 FPS) @ 5.2 MP (12 Bit ADC mode)
Exposure Time22.656 μs to 10 s (Normal)
Mono/ColorMono
SpectrumSWIR
EMVA 1288
Quantum Efficiency1 %
Dark Noise160 e¯
Saturation Capacity52000 ke¯
Dynamic Range50.2 dB
Signal-to-Noise Ratio47.2 dB
Camera Data
Interface2.5GigE
Image Data Interface2.5GBASE-T / 1000BASE-T M12 (8 Pin X-Coded), PoE
Pixel Bit Depth
8, 10, 12 bit
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)

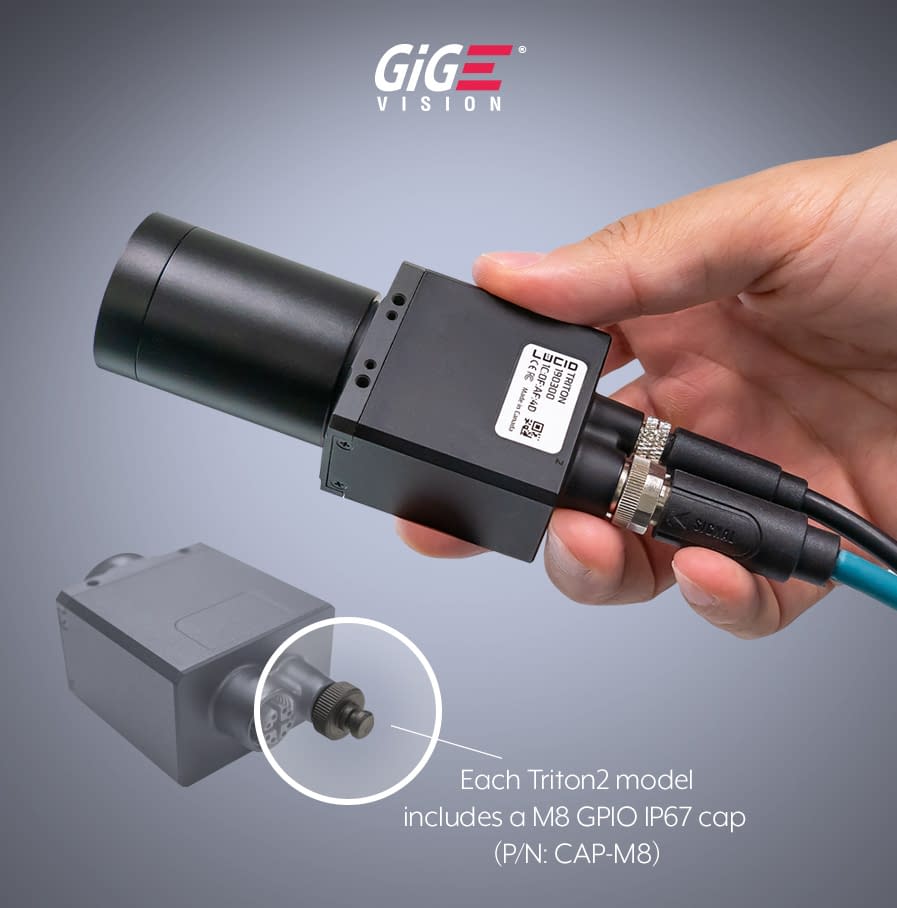

Digital Input3
Digital Output3
Power SupplyPoE (IEEE 802.3af) or 12-24 V through GPIO
Power Requirements4.5 W
Housing
Housing TypeBox

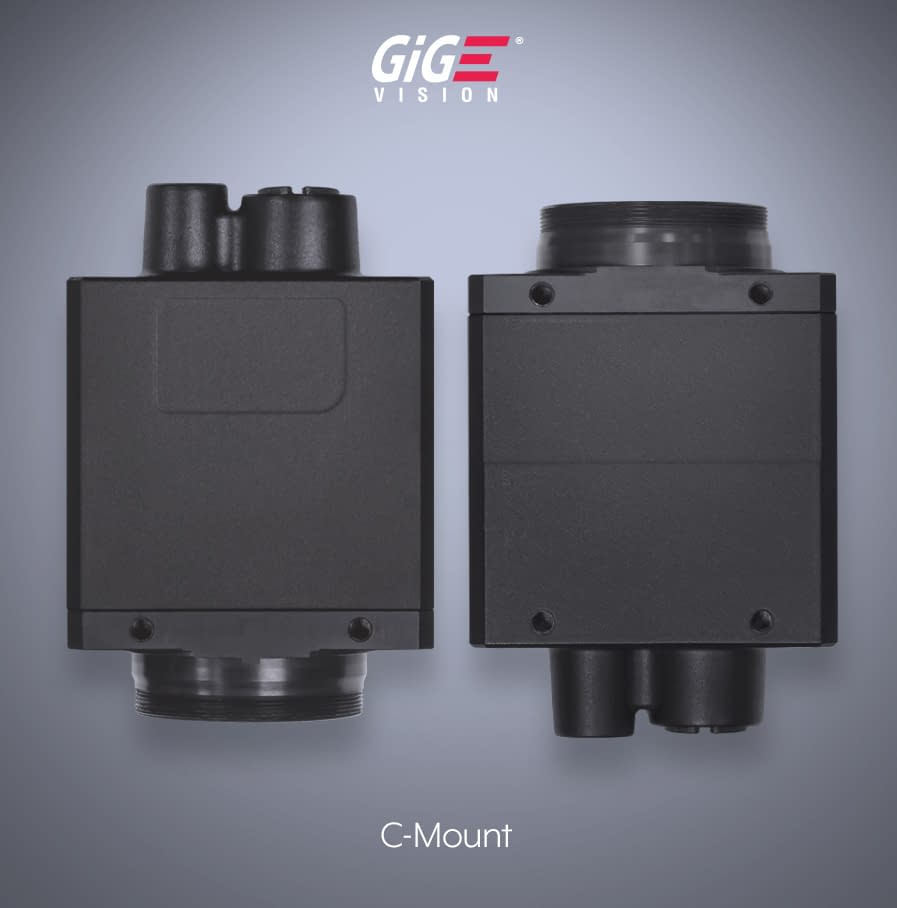

Housing Size44 mm × 29 mm × 45.3 mm
Weight90 g

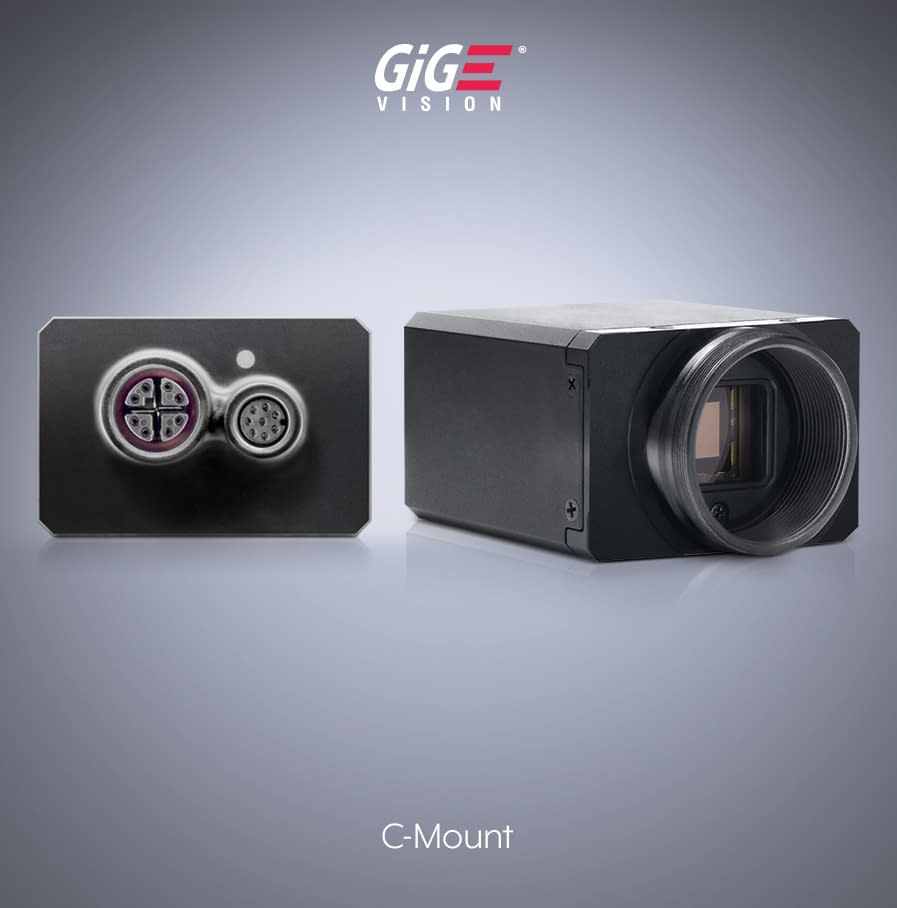

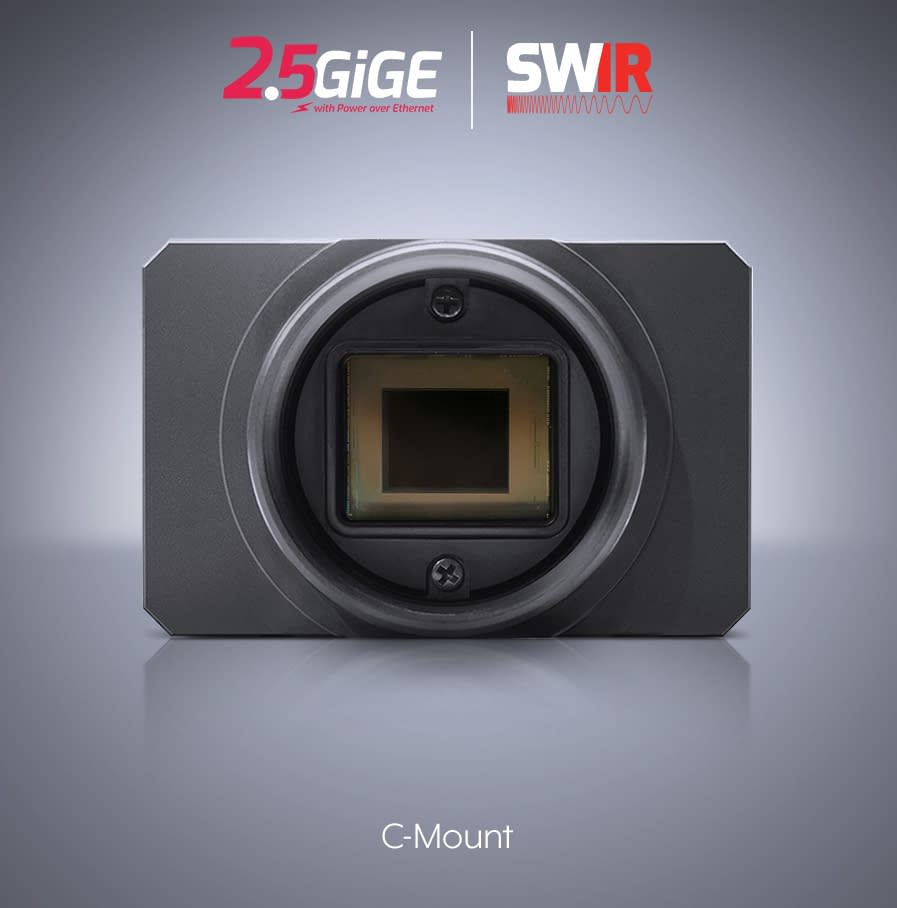

Lens Mount
C-mount
Operating Temperature-20 to 50°C Case Temperature
Conformity
Compliances
CE
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID TRT053S-WC
Others
Technical Drawing
/lucid/assets/triton2-swir-5-2mp-model-imx992_outline_1.svg
