Camera Details

Show technical details of the camera.

TRT016S-CC

LUCID Triton2 1.6 MP Model (IMX273)

Sensor Sony IMX273
Mono/Color Color
Resolution 1.6 MP
Size (H×V) 1440 px × 1080 px
Interface 2.5GigE
Sensor Format 1/2.9"
Pixel Size 3.45 µm × 3.45 µm
Frame Rate 166.3 fps
List Price USD $470

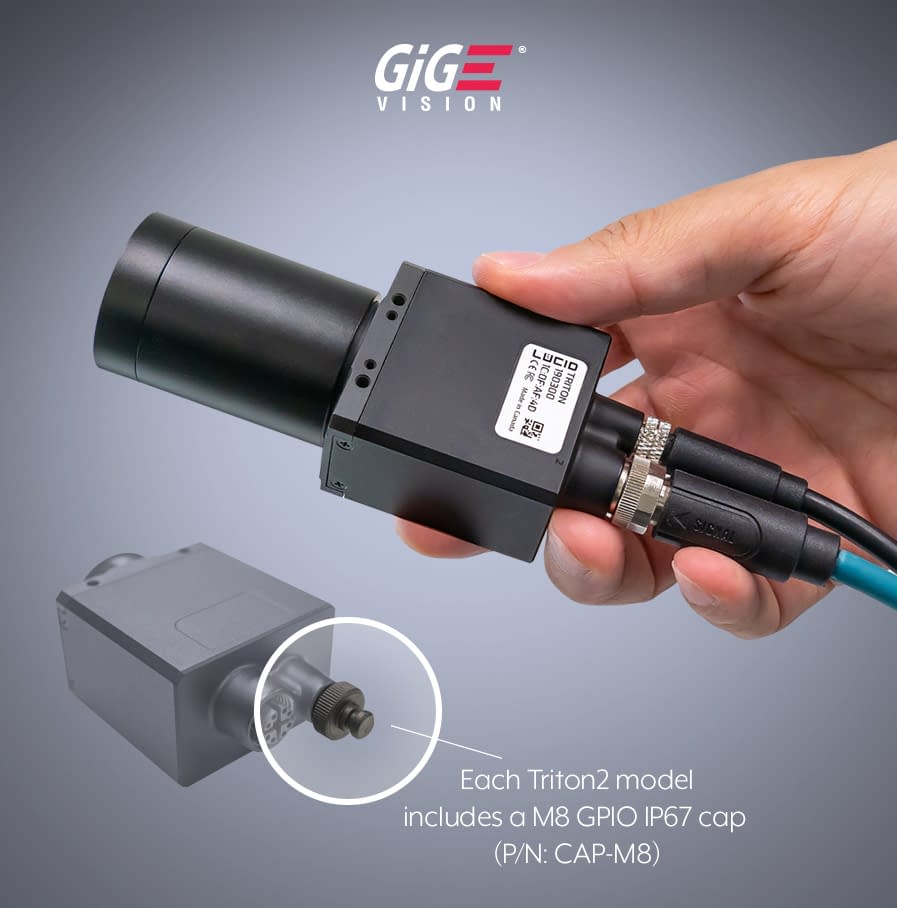

The Triton2 offers unprecedented performance in a cost-effective, compact camera. The adoption of a 2.5 GigE (300 MB/s) interface enables higher bandwidth than 1 GigE cameras without compromising on size, thermal management, or Power over Ethernet (PoE) support. Upgrade your 1GigE camera today and take advantage of 2.5x times faster frame rates in a Factory Tough™ industrial camera with: Active sensor alignment; Power over Ethernet (PoE) ; Wide operating temperature range (-20 to 55°C ambient); Physical shock and vibration protection; EMC industrial immunity; IP67 dust and water protection;
General Information
Camera ManufacturerLUCID
Product NameTRT016S-CC
Product FamilyTriton2 1.6 MP Model (IMX273)
Product LineTriton2
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX273
ShutterGlobal
Sensor Format1/2.9"
Sensor Diagonal6.3mm
Sensor TypeCMOS
Sensor Size---
Resolution (H×V)1440 px × 1080 px
Resolution1.6 MP
Pixel Size (H×V)3.45 µm × 3.45 µm
Frame rate166.3 (166.3) @ 1.6 MP
Exposure Time19.58 μs to 10 s (Normal) / 0.784 μs to 13.312 μs (Short Mode)
Mono/ColorColor
SpectrumVisible
EMVA 1288
Quantum Efficiency62.46 %
Dark Noise2.21 e¯
Saturation Capacity10430 ke¯
Dynamic Range71.3 dB
Signal-to-Noise Ratio40.18 dB
Camera Data
Interface2.5GigE

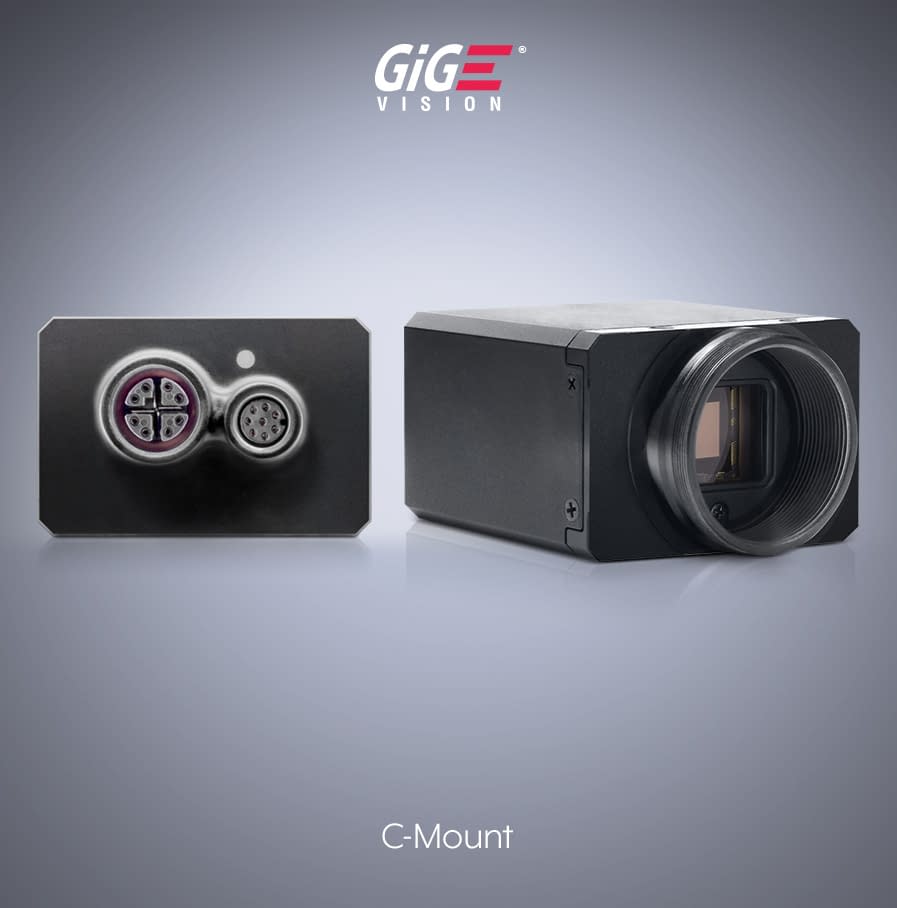

Image Data Interface2.5GBASE-T / 1000BASE-T M12 (8 Pin X-Coded), PoE
Pixel Bit Depth
12 bit
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)
Digital Input3
Digital Output3
Power SupplyPoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements4.5 W
Housing
Housing TypeBox

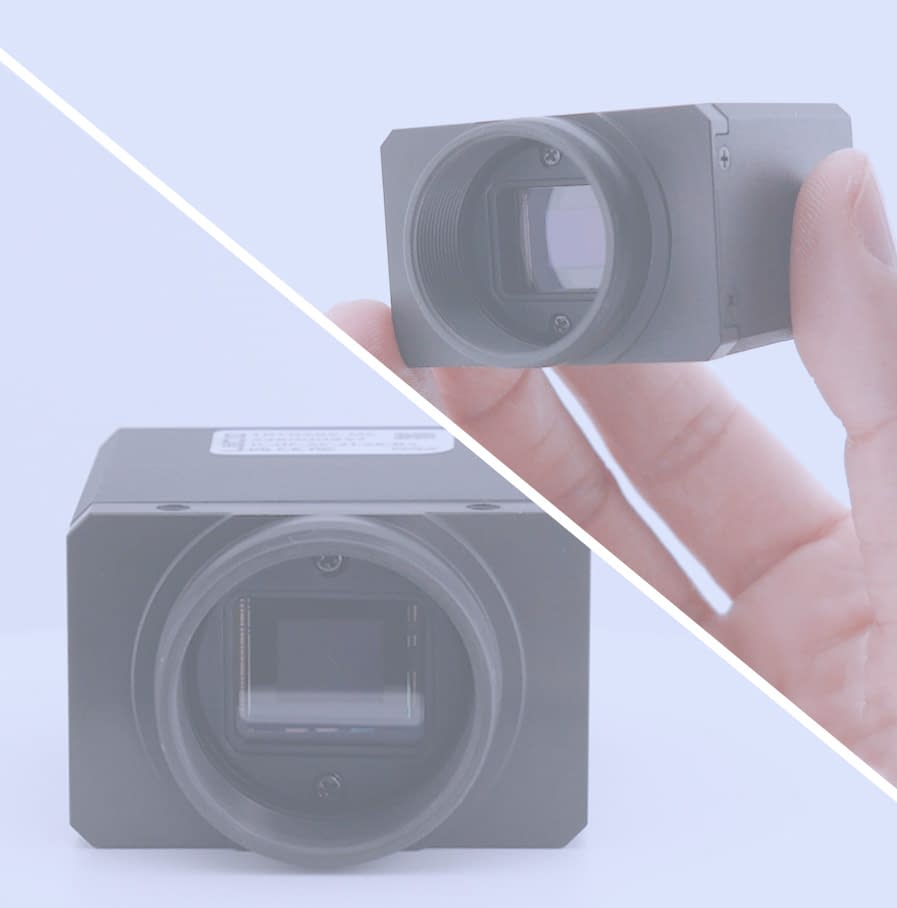

Housing Size44 mm × 29 mm × 45.3 mm
Weight90 g

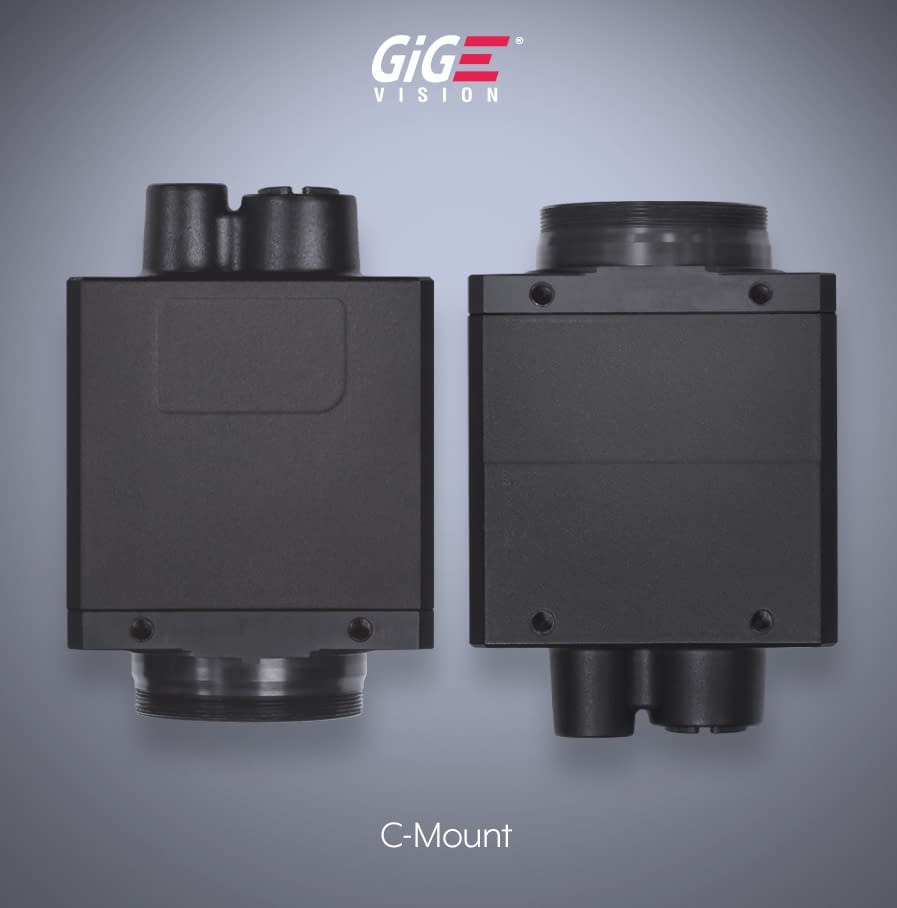

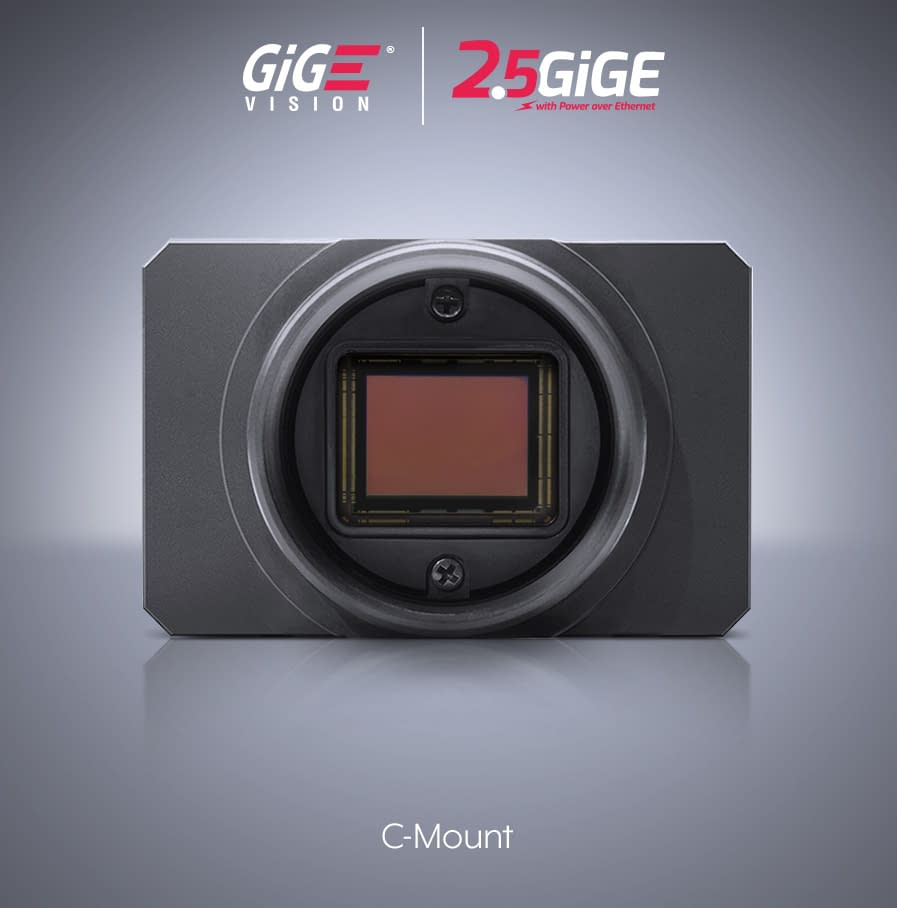

Lens Mount
C-mount
Operating Temperature-20 to 55°C ambient
Conformity
Compliances
CE
KC
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID TRT016S-CC
Others
Technical Drawing
/lucid/assets/triton2-16-mp-imx273_outline_1.svg
