Camera Details

Show technical details of the camera.

TRS123S-CC

LUCID Triton Smart 12.3 MP Model (IMX501)

Sensor Sony IMX501
Mono/Color Color
Resolution 1.0 MP
Size (H×V)
Interface GigE Vision
Sensor Format 1/2.3"
Pixel Size 1.55 µm × 1.55 µm
Frame Rate fps
List Price USD $495

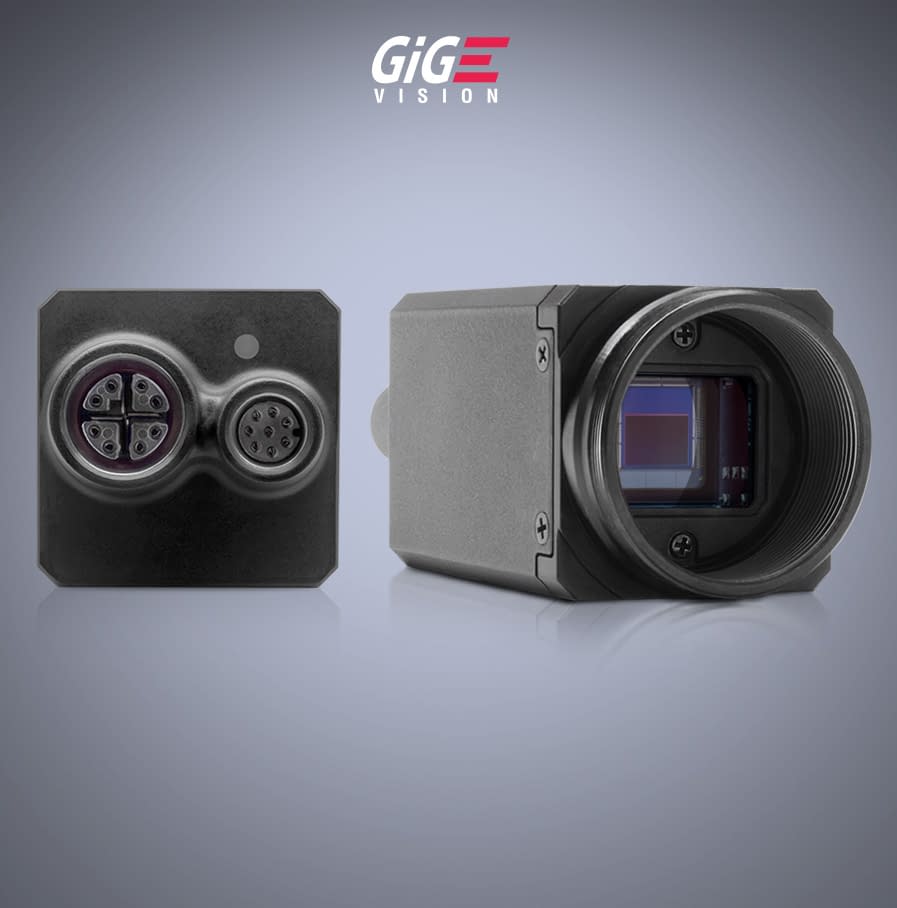

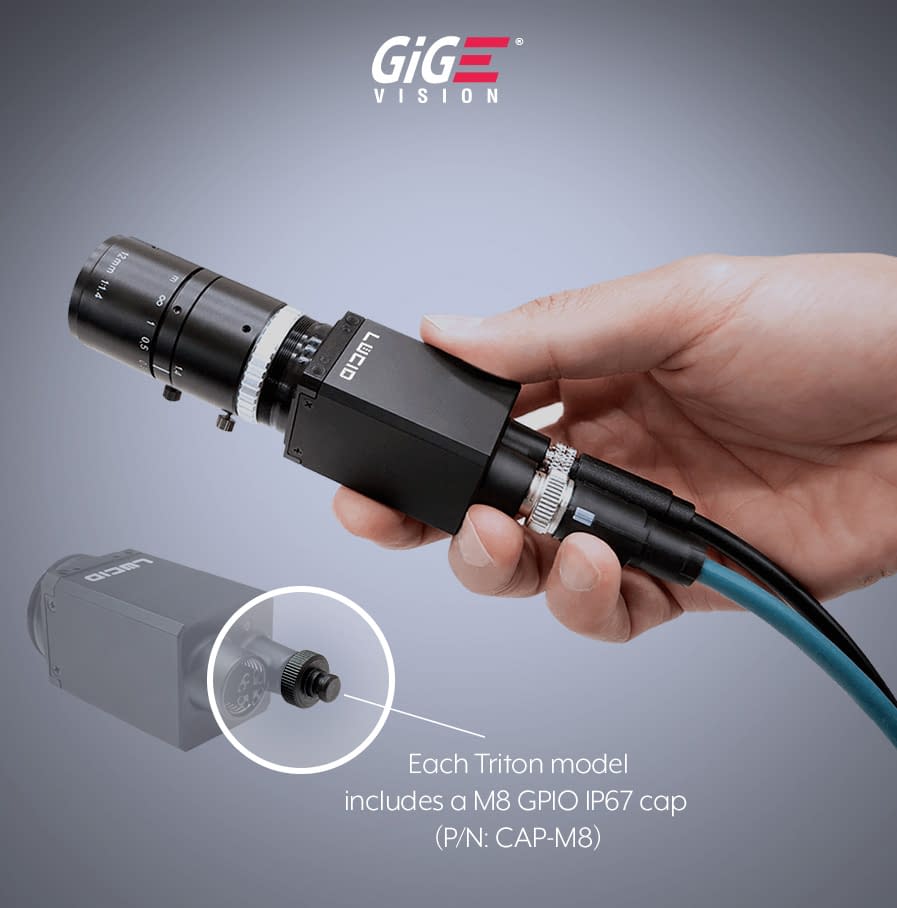

The Triton camera pushes the standard 29 x 29 mm machine vision camera to a new level. The Triton’s electronics are housed in a sealed two-piece aluminum case secured by 4 M2 screws. The M12 connector for Ethernet and M8 connector for GPIO provides a robust and sturdy connection resistant to shock and vibration. For even more protection, an optional IP67 lens tube can be attached for dust proof and water resistant operation, eliminating the need for an external case. The camera has a wide operating temperature range from -20°C to 55°C ambient. At only 67 grams and 29 x 29 mm, the Triton is an easy fit for reliable operation in any environment.
General Information
Camera ManufacturerLUCID
Product NameTRS123S-CC
Product FamilyTriton Smart 12.3 MP Model (IMX501)
Product LineTriton
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX501
ShutterRolling Shutter
Sensor Format1/2.3"
Sensor Diagonal7.857mm
Sensor TypeCMOS
Sensor Size---
Resolution (H×V)
Resolution1.0 MP
Pixel Size (H×V)1.55 µm × 1.55 µm
Frame rate7.9 FPS @ 12.3 MP (Full image with Object Detection) 29 FPS (4×4 image with Object Detection) 8.0 FPS @ 12.3 MP (Full image with Classification/Anomaly) 30 FPS (4×4 image with Classification/Anomaly)
Exposure Time32.0 μs to 0.11 s
Mono/ColorColor
SpectrumVisible
EMVA 1288
Quantum Efficiency66.9 %
Dark Noise6.28 e¯
Saturation Capacity9434 ke¯
Dynamic Range62.1 dB
Signal-to-Noise Ratio39.75 dB
Camera Data
InterfaceGigE Vision
Image Data Interface1000BASE-T GigE M12 (8-Pin X-Coded), PoE
Pixel Bit Depth
10 bit
Synchronization
Exposure Control
Not supported
Digital Input3
Digital Output3
Power SupplyPoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements2.5 W
Housing
Housing TypeBox
Housing Size29 mm × 29 mm × 45 mm
Weight67 g

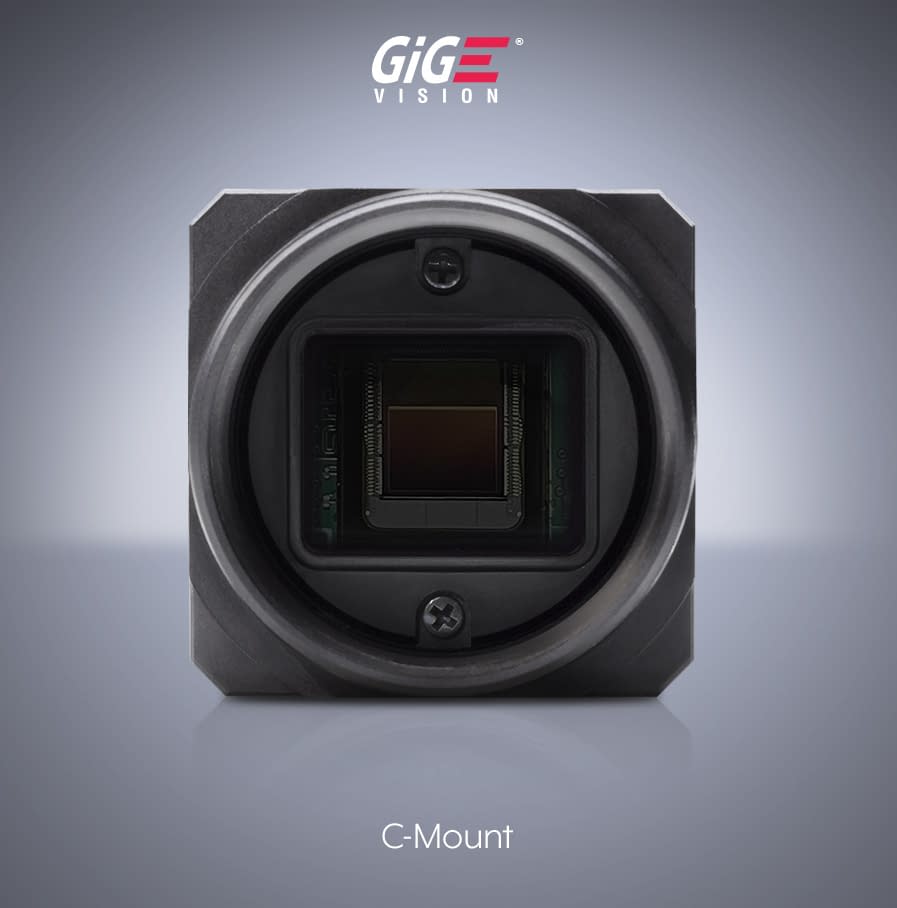

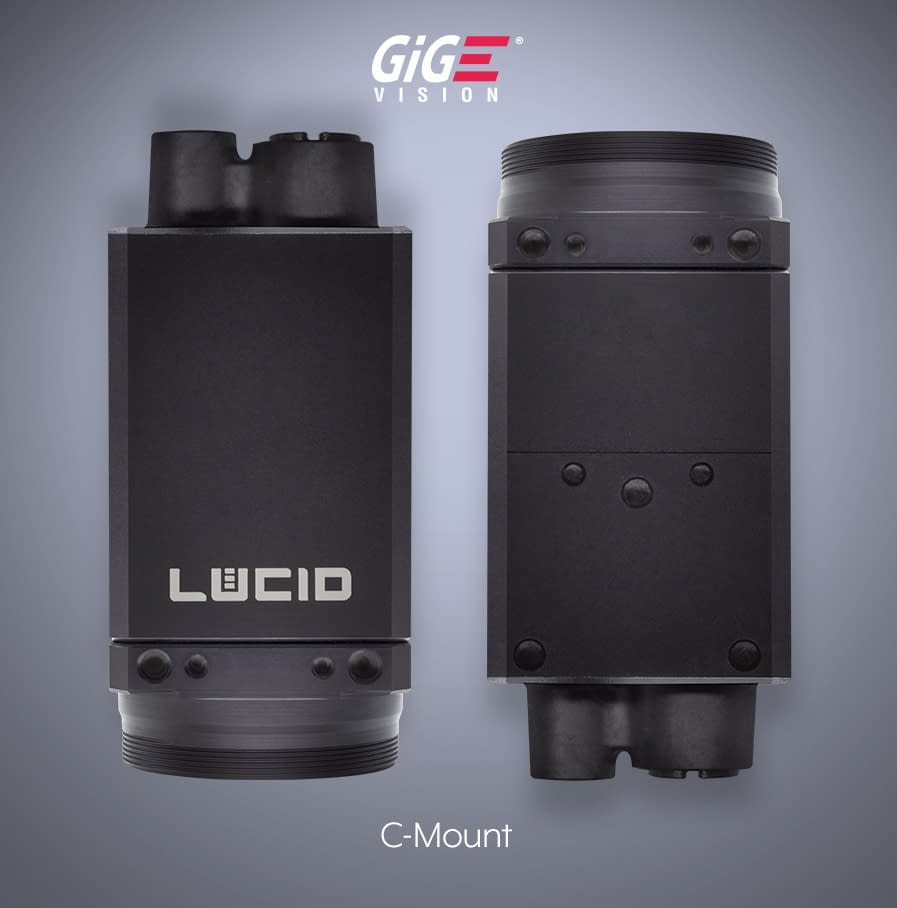

Lens Mount
C-mount
Operating Temperature-20 to 55°C ambient
Conformity
Compliances
CE
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID TRS123S-CC
Others
Technical Drawing
/lucid/assets/triton-smart-12-3-mp-imx501_outline_1.svg
