Camera Details

Show technical details of the camera.

TRI162S-CC

LUCID Triton 16.2 MP Model (IMX542)

Sensor Sony IMX542
Mono/Color Color
Resolution 16.2 MP
Size (H×V) 5320 px × 3032 px
Interface GigE Vision
Sensor Format 1.1"
Pixel Size 2.74 µm × 2.74 µm
Frame Rate 7.5 fps
List Price USD $1285

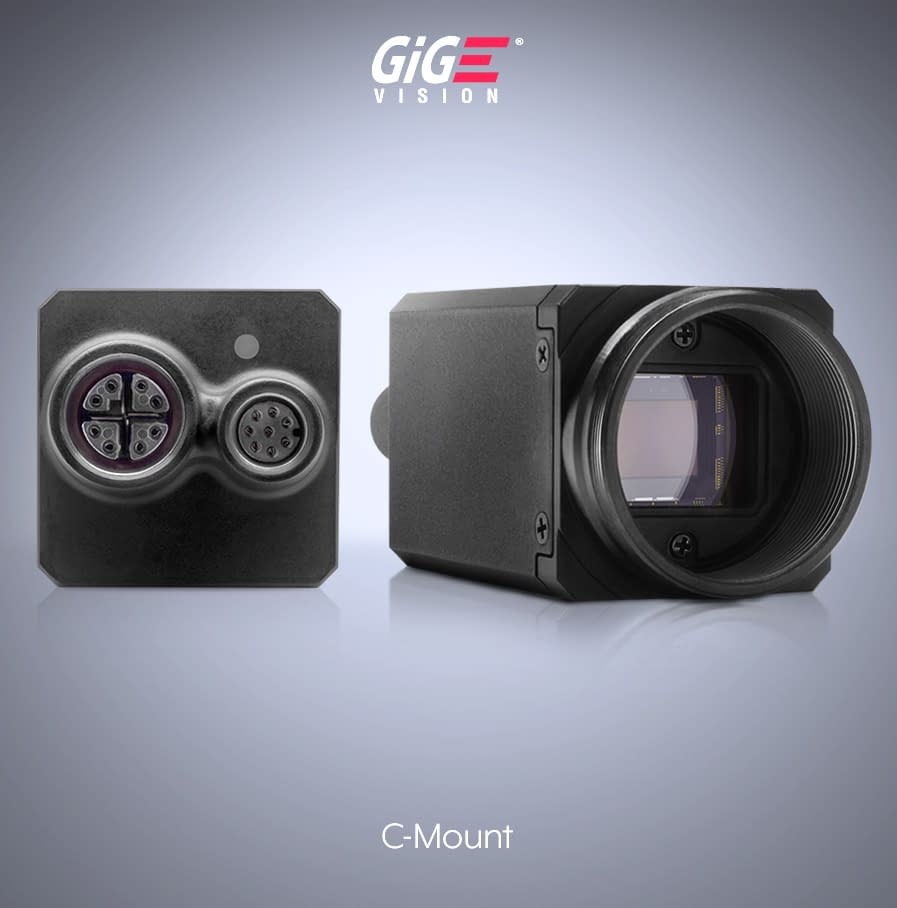

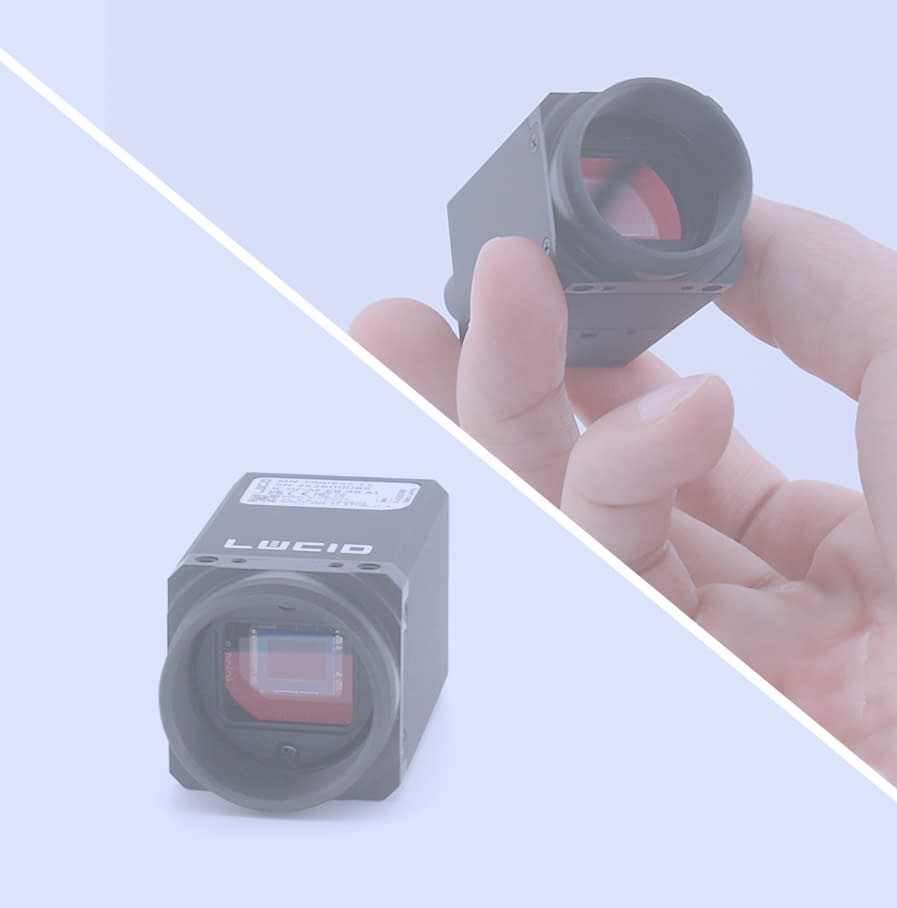

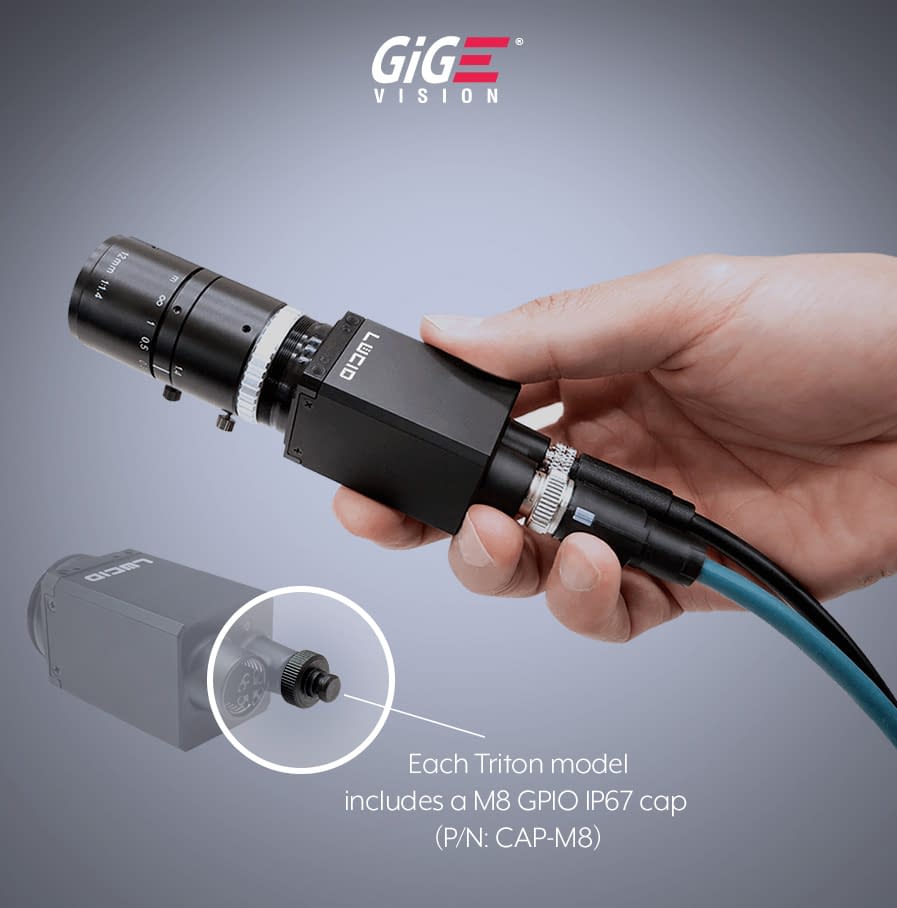

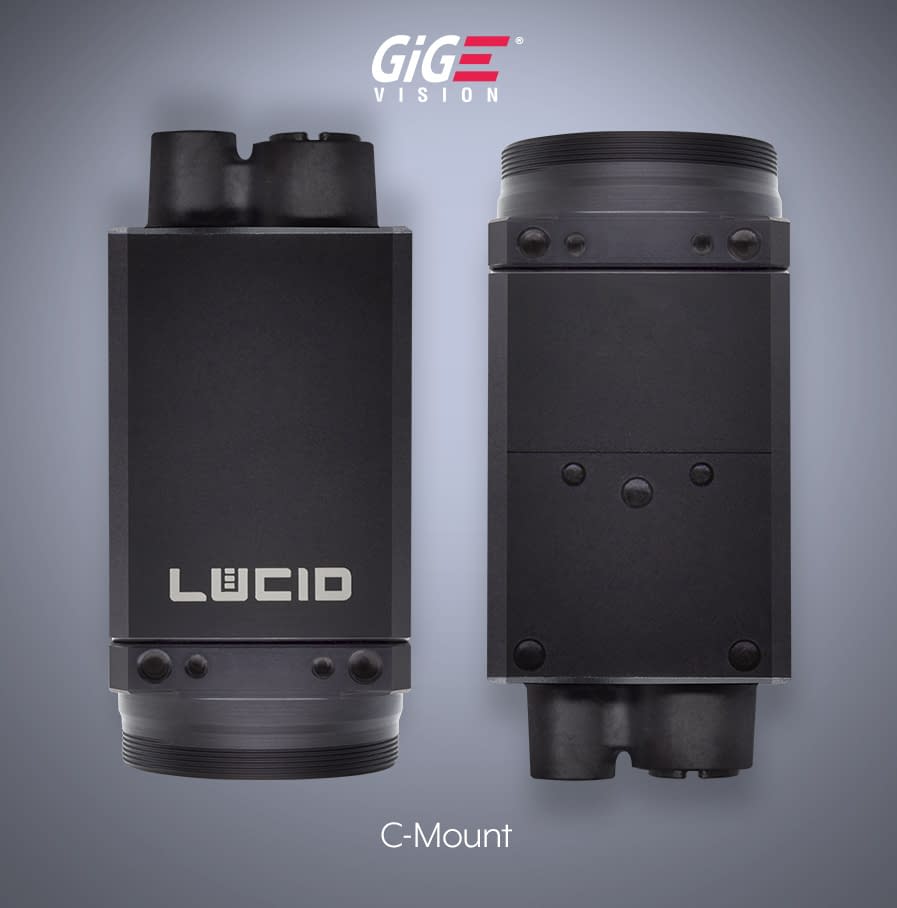

The Triton camera pushes the standard 29 x 29 mm machine vision camera to a new level. The Triton’s electronics are housed in a sealed two-piece aluminum case secured by 4 M2 screws. The M12 connector for Ethernet and M8 connector for GPIO provides a robust and sturdy connection resistant to shock and vibration. For even more protection, an optional IP67 lens tube can be attached for dust proof and water resistant operation, eliminating the need for an external case. The camera has a wide operating temperature range from -20°C to 55°C ambient. At only 67 grams and 29 x 29 mm, the Triton is an easy fit for reliable operation in any environment.
General Information
Camera ManufacturerLUCID
Product NameTRI162S-CC
Product FamilyTriton 16.2 MP Model (IMX542)
Product LineTriton
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX542
ShutterGlobal
Sensor Format1.1"
Sensor Diagonal16.8mm
Sensor TypeCMOS
Sensor Size---
Resolution (H×V)5320 px × 3032 px
Resolution16.2 MP
Pixel Size (H×V)2.74 µm × 2.74 µm
Frame rate6.9 FPS (7.5 FPS) @ 16.2 MP
Exposure Time45 μs to 10 s (Normal) / 1 μs to 2.74 μs (Short Mode)
Mono/ColorColor
SpectrumVisible
EMVA 1288
Quantum Efficiency56.74 %
Dark Noise2.17 e¯
Saturation Capacity9465 ke¯
Dynamic Range70.7 dB
Signal-to-Noise Ratio39.76 dB
Camera Data
InterfaceGigE Vision
Image Data Interface1000BASE-T GigE M12 (8-Pin X-Coded), PoE
Pixel Bit Depth
12 bit
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)
Digital Input3
Digital Output3
Power SupplyPoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements3 W
Housing
Housing TypeBox
Housing Size29 mm × 29 mm × 45 mm
Weight67 g

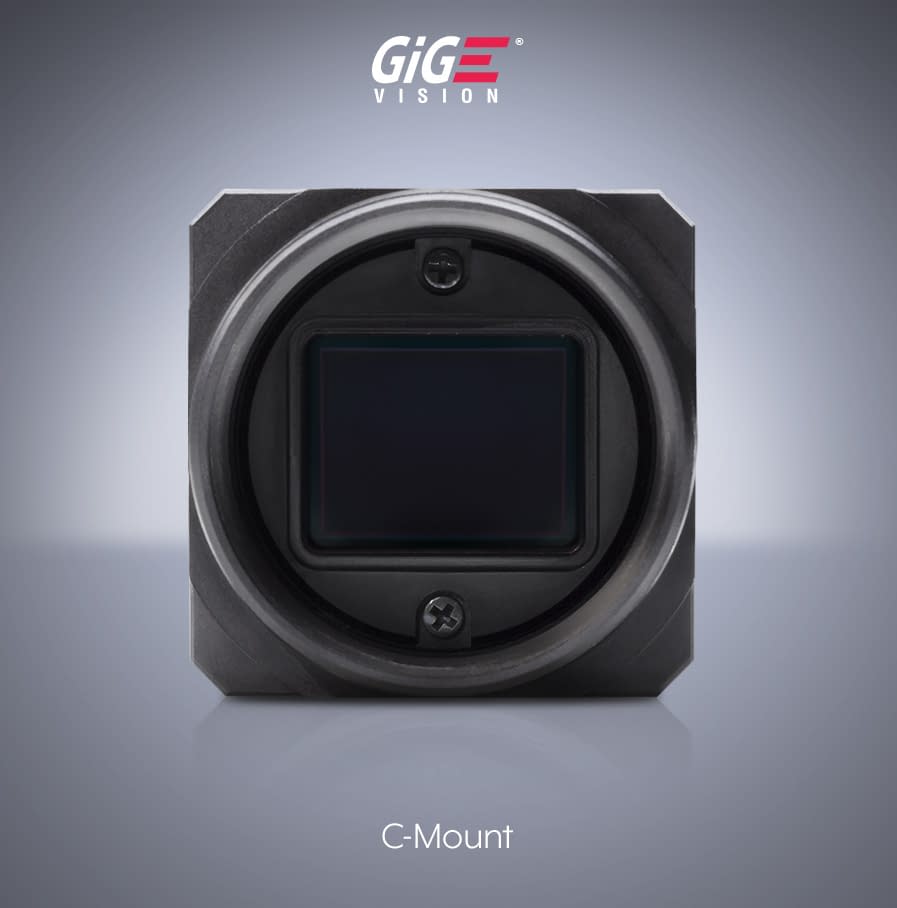

Lens Mount
C-mount
Operating Temperature-20 to 55°C ambient
Conformity
Compliances
CE
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID TRI162S-CC
Others
Technical Drawing
/lucid/assets/triton-16-2-mp-imx542_outline_1.svg
