Camera Details

Show technical details of the camera.

TRI054S-CC

LUCID Triton 5.4 MP Model (IMX490)

Sensor	Sony IMX490
Mono/Color	Color
Resolution	5.4 MP
Size (H×V)	2880 px × 1860 px
Interface	GigE Vision
Sensor Format	1/1.55"
Pixel Size	3.0 µm × 3.0 µmBSI Pixel
Frame Rate	23.1 fps
List Price	USD $460

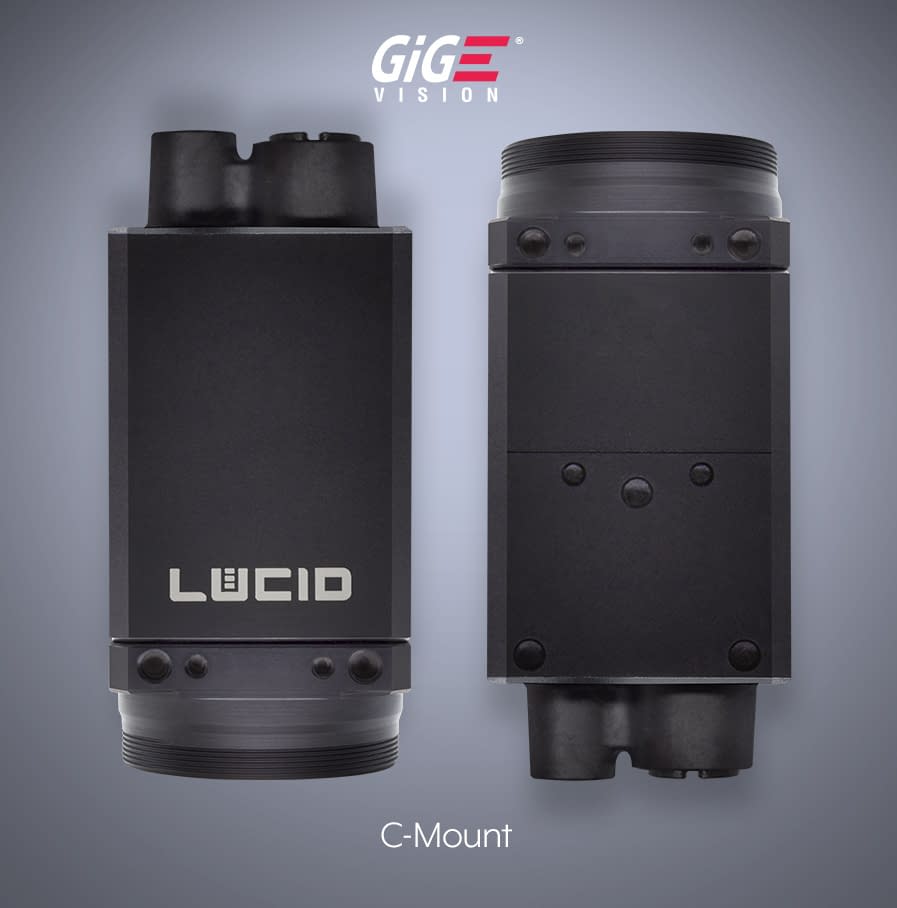

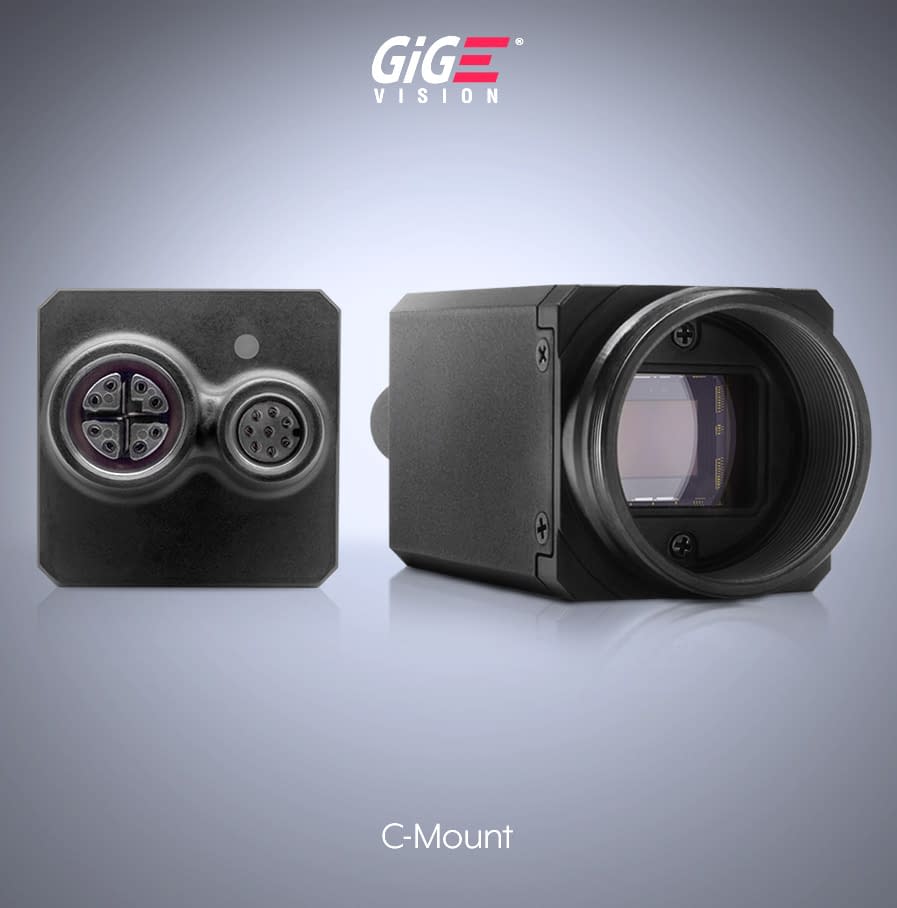

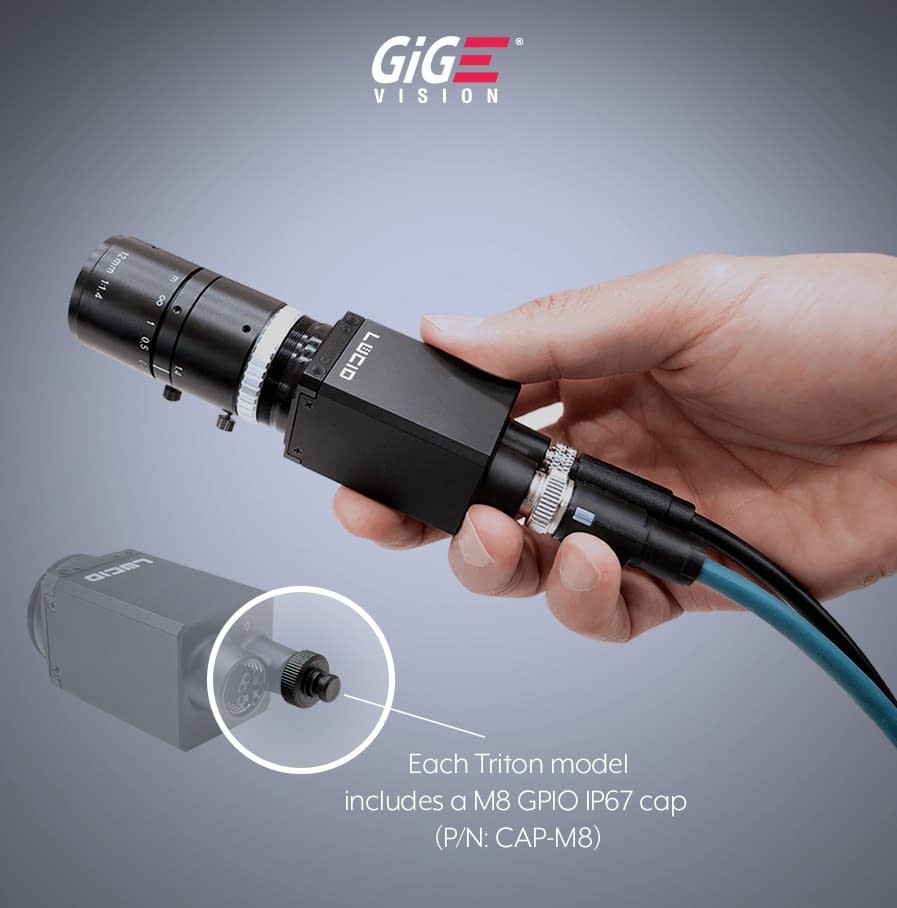

The Triton camera pushes the standard 29 x 29 mm machine vision camera to a new level. The Triton’s electronics are housed in a sealed two-piece aluminum case secured by 4 M2 screws. The M12 connector for Ethernet and M8 connector for GPIO provides a robust and sturdy connection resistant to shock and vibration. For even more protection, an optional IP67 lens tube can be attached for dust proof and water resistant operation, eliminating the need for an external case. The camera has a wide operating temperature range from -20°C to 55°C ambient. At only 67 grams and 29 x 29 mm, the Triton is an easy fit for reliable operation in any environment.

General Information

Camera Manufacturer	LUCID
Product Name	TRI054S-CC
Product Family	Triton 5.4 MP Model (IMX490)
Product Line	Triton
Camera Category	Area Scan

Sensor

Sensor Vendor	Sony
Sensor	IMX490
Shutter	Automotive Sensor with Rolling Shutter
Sensor Format	1/1.55"
Sensor Diagonal	10.36mm
Sensor Type	CMOS
Sensor Size	---
Resolution (H×V)	2880 px × 1860 px
Resolution	5.4 MP
Pixel Size (H×V)	3.0 µm × 3.0 µmBSI Pixel
Frame rate	Normal 12-bit ADC: 20.8 FPS (23.1 FPS) (8-bit Bayer) HDR PWL Comp, 12-bit ADC: 20.8 FPS (23.1 FPS) (8-bit Bayer) For 24-bit Output: (Please note this is only a partial list of max FPS. More upon request. ) Max Resolution 2880×1860: 2.31 FPS (2.5 FPS) – (RGB24) 3.46 FPS (3.85 FPS) – (YCbCr422_24) 4.62 FPS (5.14 FPS) – (YCbCr411_24) 6.93 FPS (7.71 FPS) – (BayerRG24) 2.31 FPS (2.57 FPS) – (BGR24) 2×2 Binning 1440×928: 10 FPS – (RGB24) 15 FPS – (YCbCr422_24) 15 FPS – (YCbCr411_24) 30 FPS – (BayerRG24) 10 FPS – (BGR24) ROI 1920×1080: 17.9 FPS – (BayerRG24)
Exposure Time	86.128 μs to 5 s
Mono/Color	Color
Spectrum	Visible

EMVA 1288

Quantum Efficiency	70.48 %
Dark Noise	0.54 e¯
Saturation Capacity	120000 ke¯
Dynamic Range	123.6 dB
Signal-to-Noise Ratio	50.8 dB

Camera Data

Interface	GigE Vision
Image Data Interface	1000BASE-T GigE M12 (8 Pin X-Coded), PoE
Pixel Bit Depth	10 bit, 12 bit
Synchronization
Exposure Control	Software trigger hardware trigger PTP (IEEE 1588)
Digital Input	3
Digital Output	3
Power Supply	PoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements	2.5 W

Housing

Housing Type	Box
Housing Size	29 mm × 29 mm × 45 mm
Weight	67 g
Lens Mount	C-mount
Operating Temperature	-20 to 55°C ambient

Conformity

Compliances	CE FCC RoHS REACH WEEE
Warranty	3 year
Standards

More Information

Source Link	LUCID TRI054S-CC
Others

Technical Drawing

/lucid/assets/triton-5-mp-imx490_outline_1.svg
