TRI023S-CC
LUCID Triton 2.3 MP Model (IMX392)
| Sensor | Sony IMX392 |
| Mono/Color | Color |
| Resolution | 2.3 MP |
| Size (H×V) | 1920 px × 1200 px |
| Interface | GigE Vision |
| Sensor Format | 1/2.3" |
| Pixel Size | 3.45 µm × 3.45 µm |
| Frame Rate | 52 fps |
| List Price | USD $410 |

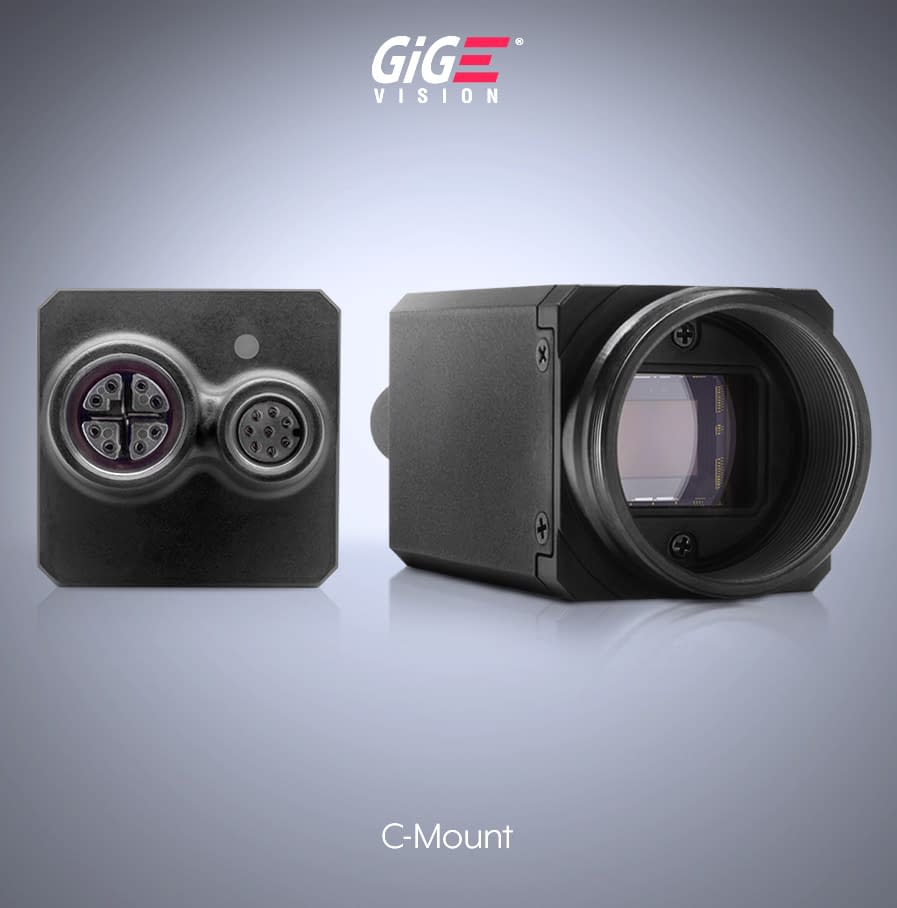

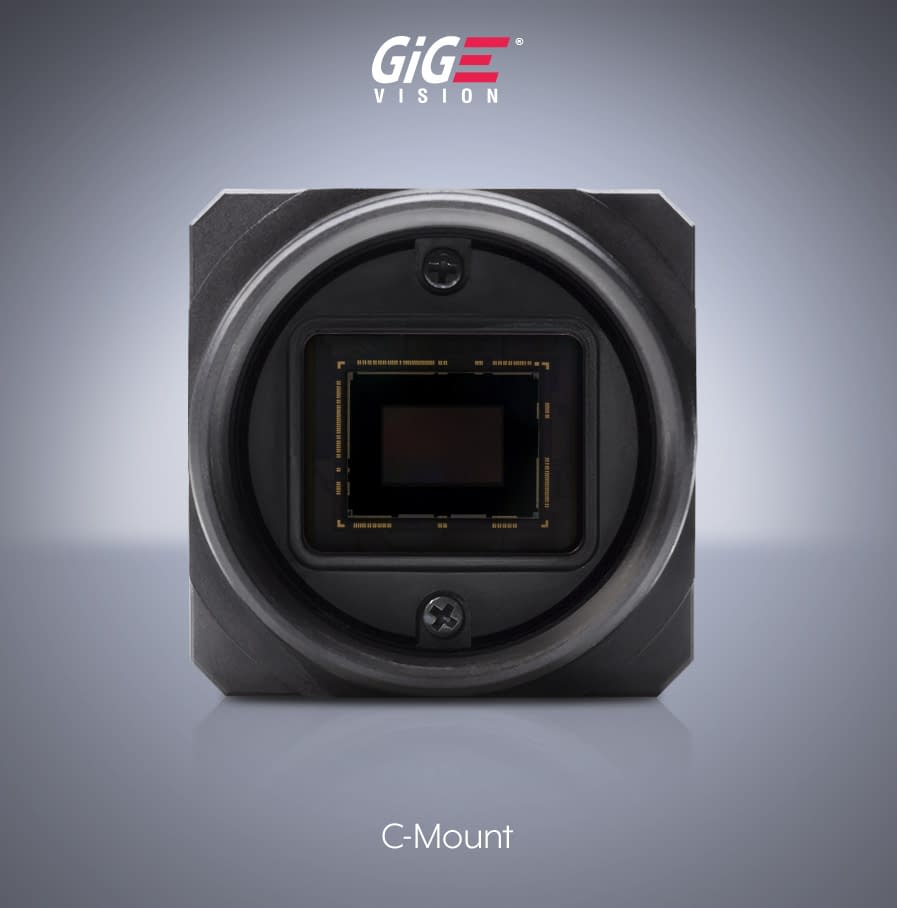

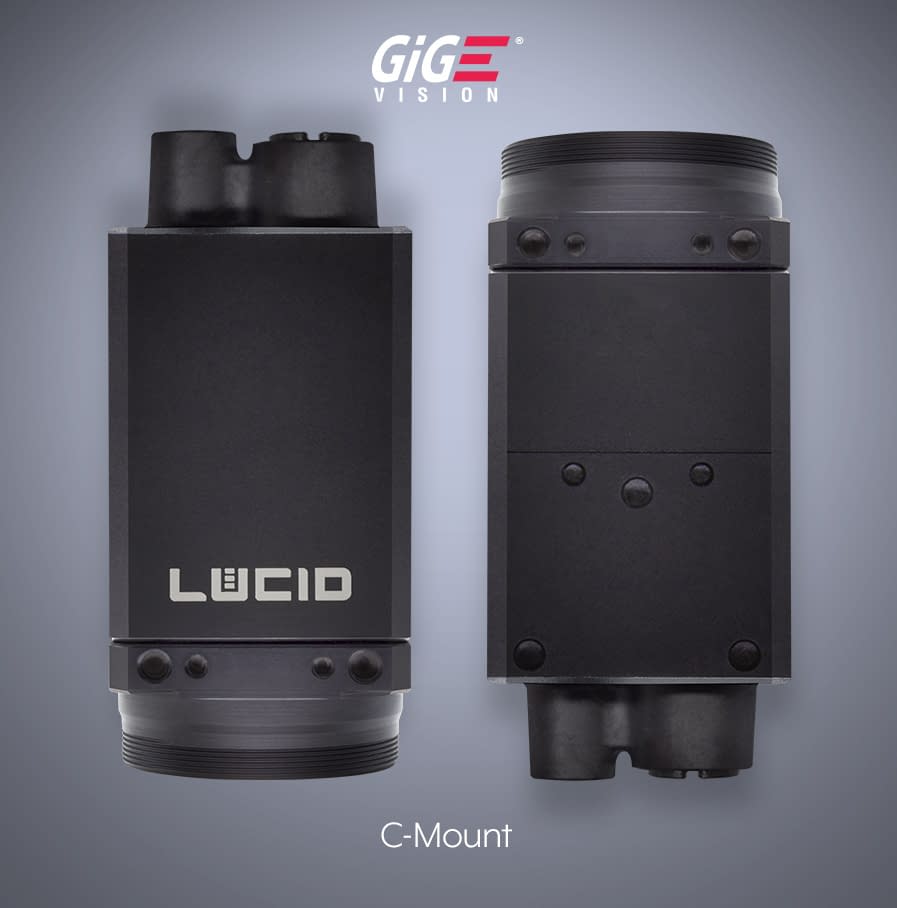

The Triton camera pushes the standard 29 x 29 mm machine vision camera to a new level. The Triton’s electronics are housed in a sealed two-piece aluminum case secured by 4 M2 screws. The M12 connector for Ethernet and M8 connector for GPIO provides a robust and sturdy connection resistant to shock and vibration. For even more protection, an optional IP67 lens tube can be attached for dust proof and water resistant operation, eliminating the need for an external case. The camera has a wide operating temperature range from -20°C to 55°C ambient. At only 67 grams and 29 x 29 mm, the Triton is an easy fit for reliable operation in any environment.
