Camera Details

Show technical details of the camera.

TRI005S-CC

LUCID Triton 0.5 MP Model (IMX433)

Sensor Sony IMX433
Mono/Color Color
Resolution 0.5 MP
Size (H×V) 812 px × 620 px
Interface GigE Vision
Sensor Format 1/1.7"
Pixel Size 9.0 µm × 9.0 µm
Frame Rate 166.4 fps
List Price USD $395

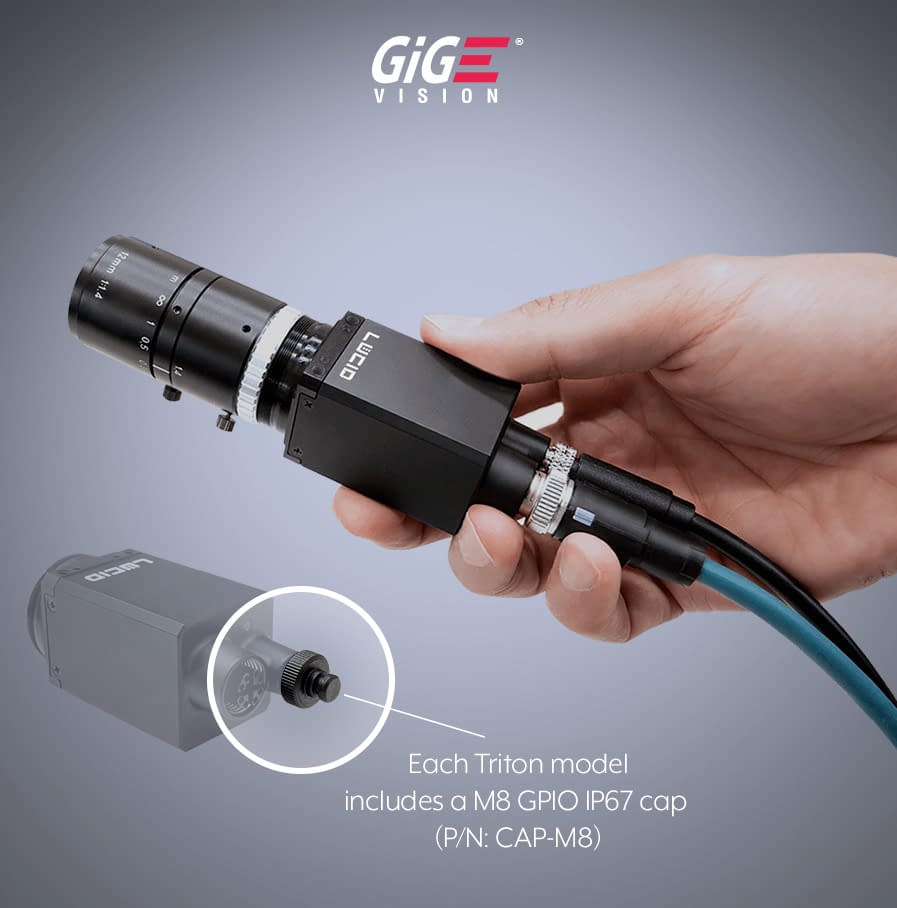

The Triton camera pushes the standard 29 x 29 mm machine vision camera to a new level. The Triton’s electronics are housed in a sealed two-piece aluminum case secured by 4 M2 screws. The M12 connector for Ethernet and M8 connector for GPIO provides a robust and sturdy connection resistant to shock and vibration. For even more protection, an optional IP67 lens tube can be attached for dust proof and water resistant operation, eliminating the need for an external case. The camera has a wide operating temperature range from -20°C to 55°C ambient. At only 67 grams and 29 x 29 mm, the Triton is an easy fit for reliable operation in any environment.
General Information
Camera ManufacturerLUCID
Product NameTRI005S-CC
Product FamilyTriton 0.5 MP Model (IMX433)
Product LineTriton
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX433
ShutterGlobal
Sensor Format1/1.7"
Sensor Diagonal9.2mm
Sensor TypeCMOS
Sensor Size---
Resolution (H×V)812 px × 620 px
Resolution0.5 MP
Pixel Size (H×V)9.0 µm × 9.0 µm
Frame rate166.4 FPS (166.4 FPS) @ 0.5 MP
Exposure Time13.7 μs to 10 s (Normal) / 1 μs to 5 μs (Short Mode)
Mono/ColorColor
SpectrumVisible
EMVA 1288
Quantum Efficiency68.62 %
Dark Noise22.2 e¯
Saturation Capacity100845 ke¯
Dynamic Range72.5 dB
Signal-to-Noise Ratio50.04 dB
Camera Data
InterfaceGigE Vision
Image Data Interface1000BASE-T GigE M12 (8 Pin X-Coded), PoE
Pixel Bit Depth
12 bit
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)
Digital Input3
Digital Output3
Power SupplyPoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements2.5 W
Housing
Housing TypeBox
Housing Size29 mm × 29 mm × 45 mm
Weight67 g

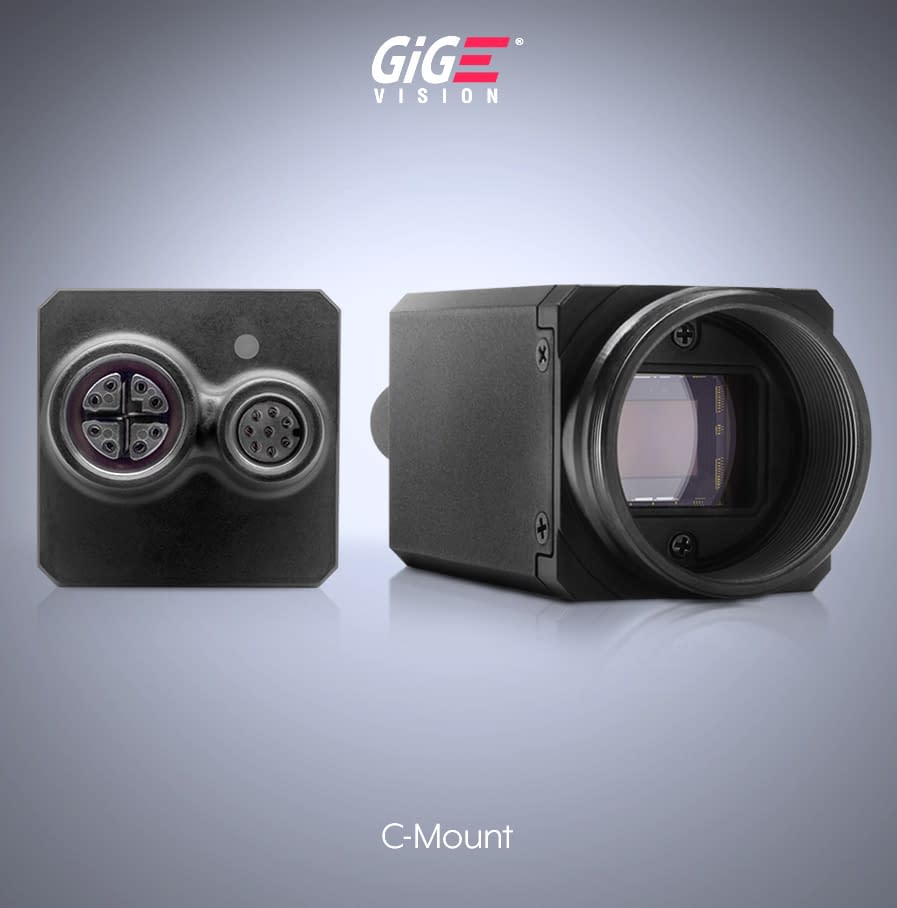

Lens Mount
C-mount
Operating Temperature-20 to 55°C ambient
Conformity
Compliances
CE
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID TRI005S-CC
Others
Technical Drawing
/lucid/assets/triton-05-mp-imx433_outline_1.svg
