TDR054S-CC

LUCID Triton HDR 5.4 MP Model with AltaView Tone Mapping

Sensor Sony IMX490
Mono/Color Color (Altaview)
Resolution 5.4 MP
Size (H×V) 2880 px × 1860 px
Interface GigE Vision
Sensor Format 1/1.55"
Pixel Size 3.0 µm × 3.0 µmBSI Pixel
Frame Rate fps
List Price USD $590

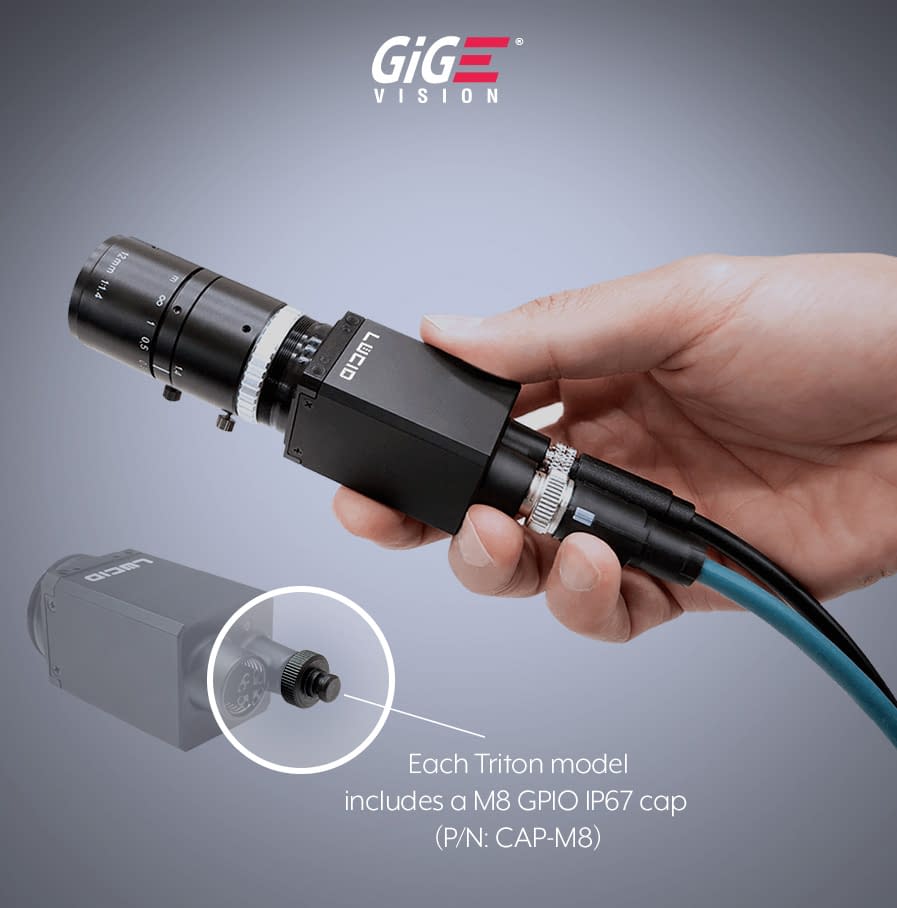

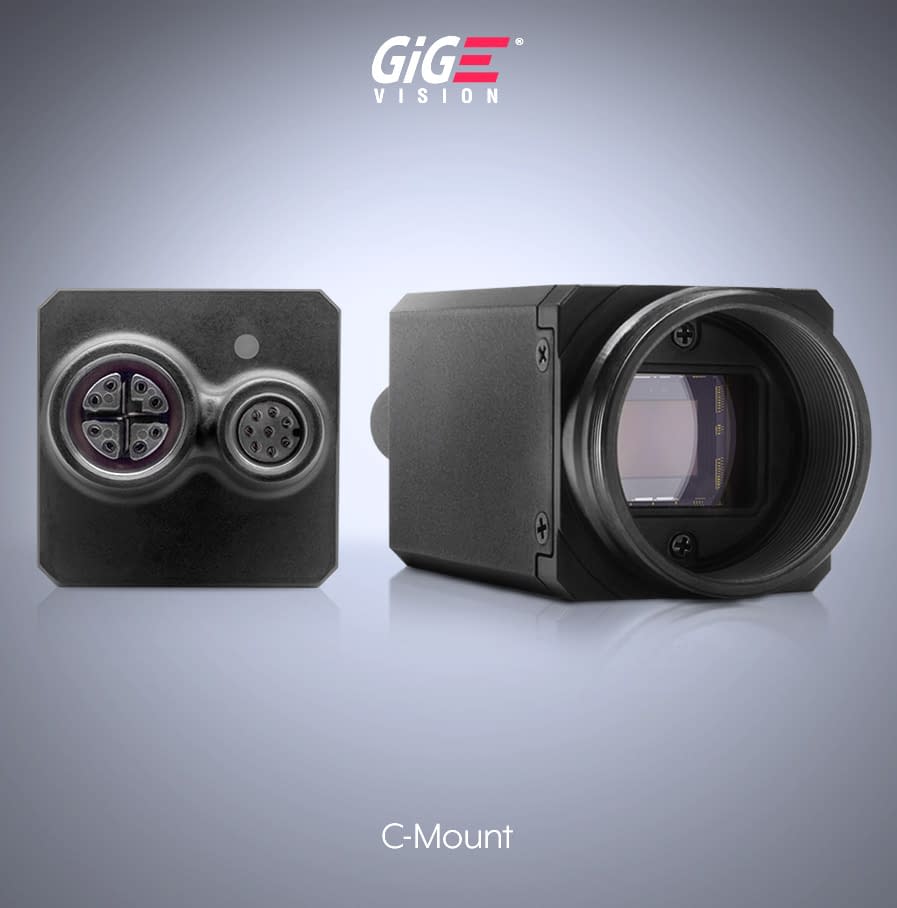

The Triton camera pushes the standard 29 x 29 mm machine vision camera to a new level. The Triton’s electronics are housed in a sealed two-piece aluminum case secured by 4 M2 screws. The M12 connector for Ethernet and M8 connector for GPIO provides a robust and sturdy connection resistant to shock and vibration. For even more protection, an optional IP67 lens tube can be attached for dust proof and water resistant operation, eliminating the need for an external case. The camera has a wide operating temperature range from -20°C to 55°C ambient. At only 67 grams and 29 x 29 mm, the Triton is an easy fit for reliable operation in any environment.
General Information
Camera ManufacturerLUCID
Product NameTDR054S-CC
Product FamilyTriton HDR 5.4 MP Model with AltaView Tone Mapping
Product LineTriton
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX490
ShutterAutomotive Sensor with Rolling Shutter
Sensor Format1/1.55"
Sensor Diagonal10.36mm
Sensor TypeCMOS
Sensor Size---
Resolution (H×V)2880 px × 1860 px
Resolution5.4 MP
Pixel Size (H×V)3.0 µm × 3.0 µmBSI Pixel
Frame rateMax Resolution 2880×1860: 6.9 FPS (7.7 FPS) – (RGB8, 24 bit) 10.4 FPS (11.5 FPS) – (YCbCr422_8, 16 bit) 13.8 FPS (15.4 FPS) – (YCbCr411_8, 12 bit) ROI 1920×1080: 17.0 FPS (18.9 FPS) – (RGB8, 24 bit) 24.7 FPS (24.7 FPS) – (YCbCr411_8, 12 bit) 2×2 Binning 1440×928: 26.4 FPS (29.3 FPS) – (RGB8, 24 bit) 30.1 FPS (30.1 FPS) – (YCbCr411_8, 12 bit)
Exposure Time143 μs to 5 s
Mono/ColorColor (Altaview)
SpectrumVisible
EMVA 1288
Quantum Efficiency70.48 %
Dark Noise0.54 e¯
Saturation Capacity120000 ke¯
Dynamic Range123.6 dB
Signal-to-Noise Ratio50.8 dB
Camera Data
InterfaceGigE Vision
Image Data Interface1000BASE-T GigE M12 (8 Pin X-Coded), PoE
Pixel Bit Depth
N/A
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)
Digital Input3
Digital Output3
Power SupplyPoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements3.2 W

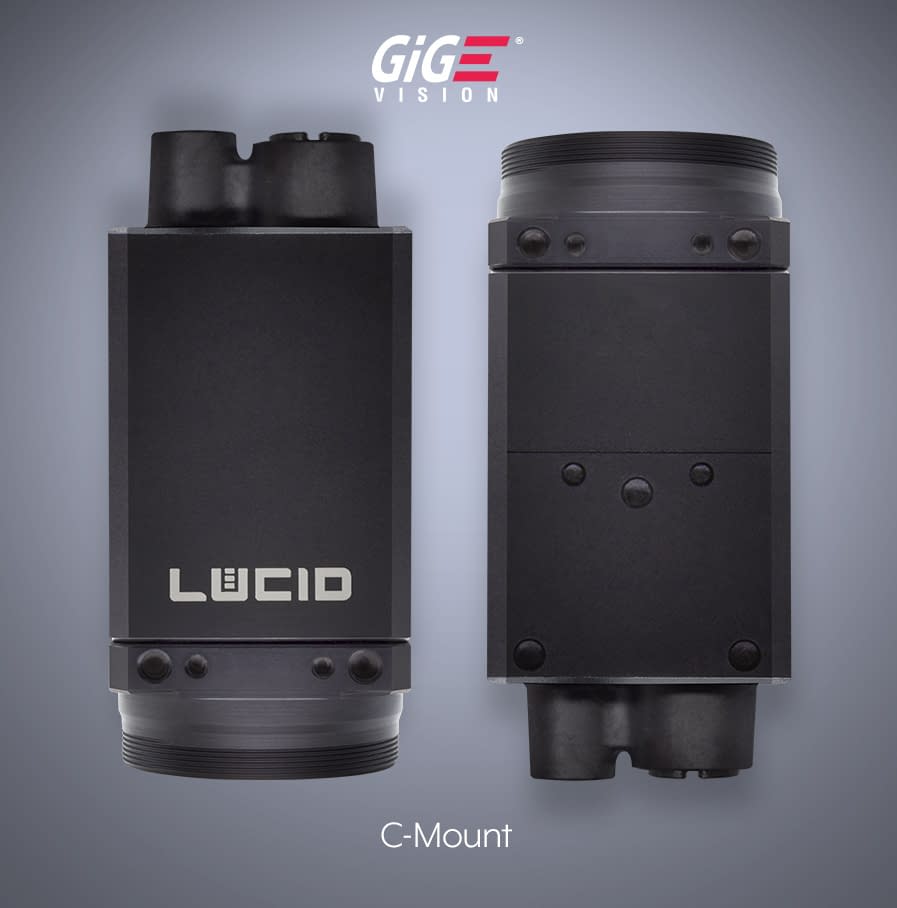

Housing
Housing TypeBox
Housing Size29 mm × 29 mm × 45 mm
Weight67 g

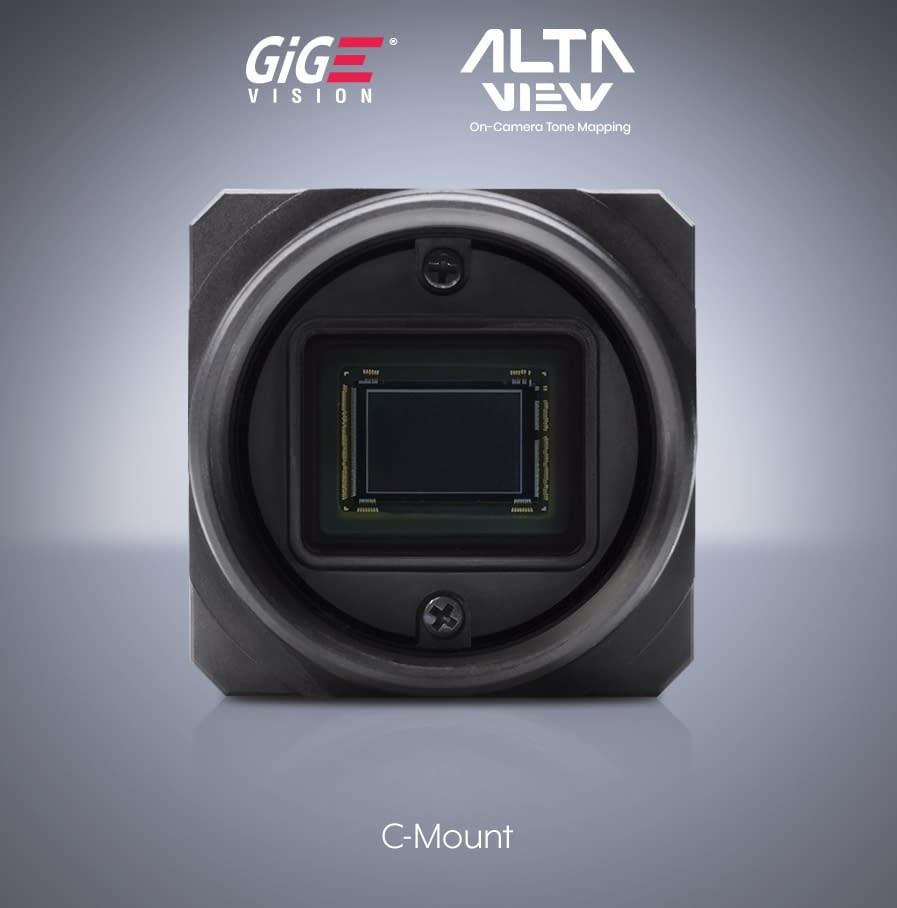

Lens Mount
C-mount
Operating Temperature-20 to 55°C ambient
Conformity
Compliances
CE
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID TDR054S-CC
Others
Technical Drawing
/lucid/assets/triton-5-mp-imx490-altaview_outline_1.svg
