Camera Details

Show technical details of the camera.

PHX120S-CC-FFC

LUCID Phoenix 12.3 MP Model (IMX304)

Sensor	Sony IMX304
Mono/Color	Color
Resolution	12.3 MP
Size (H×V)	4096 px × 3000 px
Interface	GigE Vision
Sensor Format	1.1"
Pixel Size	3.45 µm × 3.45 µm
Frame Rate	10 fps
List Price	USD $1040

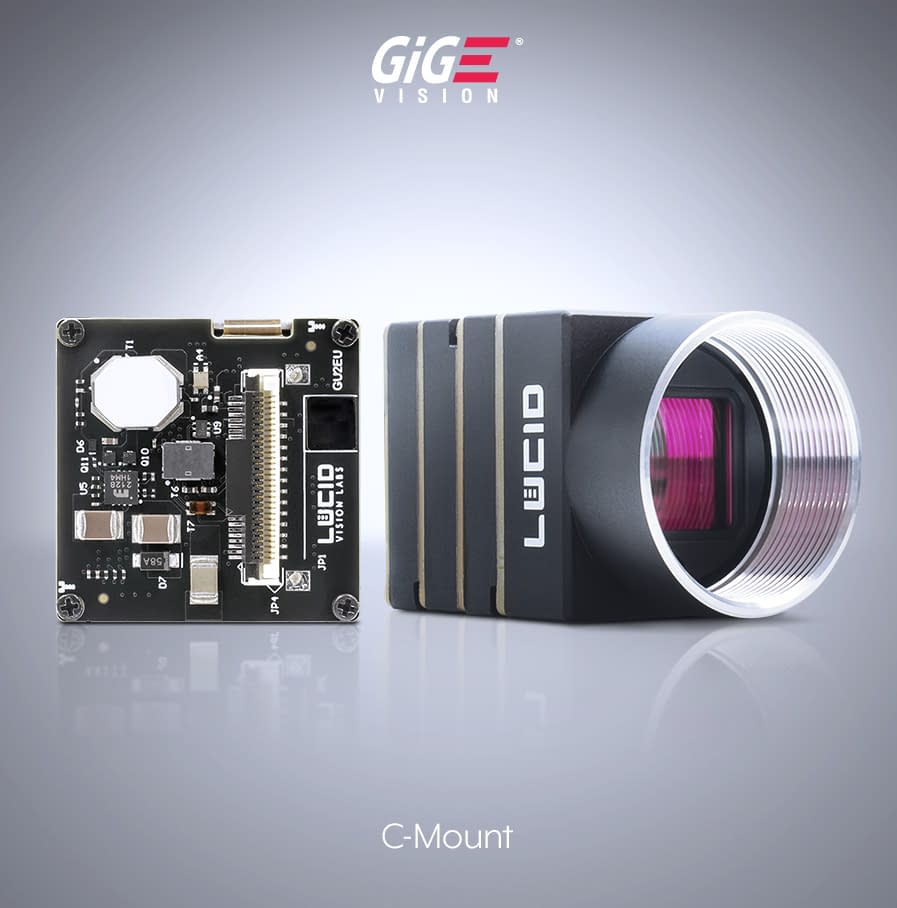

Phoenix is a flexible GigE PoE camera module designed for easy OEM integration. With a wide selection of sensors from 0.4 MP to 20 MP, 6 lens mounts, 3 camera orientations, and 3 interface connector options, the camera can be adapted for various applications.

General Information

Camera Manufacturer	LUCID
Product Name	PHX120S-CC-FFC
Product Family	Phoenix 12.3 MP Model (IMX304)
Product Line	Phoenix
Camera Category	Area Scan

Sensor

Sensor Vendor	Sony
Sensor	IMX304
Shutter	Global
Sensor Format	1.1"
Sensor Diagonal	17.6mm
Sensor Type	CMOS
Sensor Size	---
Resolution (H×V)	4096 px × 3000 px
Resolution	12.3 MP
Pixel Size (H×V)	3.45 µm × 3.45 µm
Frame rate	9.0 FPS (10 FPS) @ 12.3 MP
Exposure Time	30 μs to 10 s
Mono/Color	Color
Spectrum	Visible

EMVA 1288

Quantum Efficiency	63.82 %
Dark Noise	2.2 e¯
Saturation Capacity	10404 ke¯
Dynamic Range	71.3 dB
Signal-to-Noise Ratio	40.17 dB

Camera Data

Interface	GigE Vision
Image Data Interface	1000BASE-T RJ45, PoE; ix Industrial, PoE; FFC, PoE
Pixel Bit Depth	12 bit
Synchronization
Exposure Control	Software trigger hardware trigger PTP (IEEE 1588)
Digital Input	3
Digital Output	3
Power Supply	PoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements	3 W

Housing

Housing Type	Box
Housing Size	28 mm × 28 mm × 28.4 mm
Weight	39 g
Lens Mount	C-mount
Operating Temperature	-10 to 55°C ambient

Conformity

Compliances	CE FCC RoHS REACH WEEE
Warranty	3 year
Standards

More Information

Source Link	LUCID PHX120S-CC-FFC
Others

Technical Drawing

/lucid/assets/phoenix-12-3-mp-imx304_outline_1.svg

/lucid/assets/phoenix-12-3-mp-imx304_outline_2.svg

/lucid/assets/phoenix-12-3-mp-imx304_outline_3.svg
