PHX081S-MC-IX

LUCID Phoenix 8.1 MP Model (IMX566)

Sensor	Sony IMX566
Mono/Color	Mono
Resolution	8.1 MP
Size (H×V)	2840 px × 2840 px
Interface	GigE Vision
Sensor Format	2/3"
Pixel Size	2.74 µm × 2.74 µm
Frame Rate	14.8 fps
List Price	USD $605

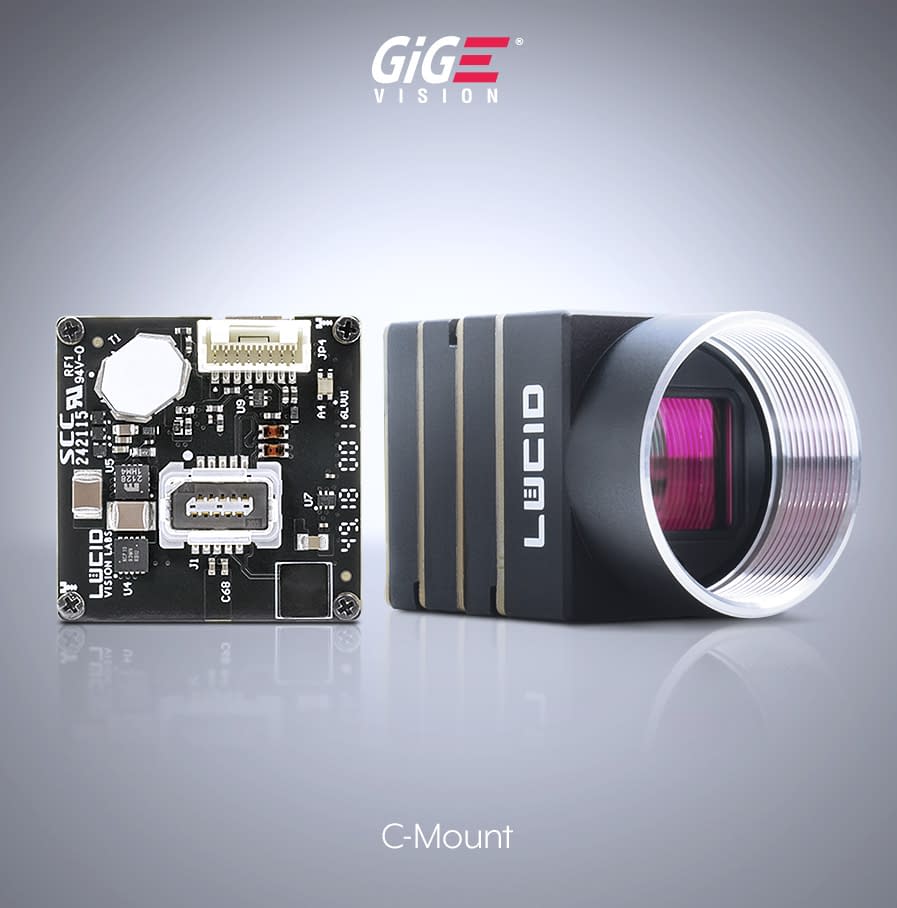

Phoenix is a flexible GigE PoE camera module designed for easy OEM integration. With a wide selection of sensors from 0.4 MP to 20 MP, 6 lens mounts, 3 camera orientations, and 3 interface connector options, the camera can be adapted for various applications.

General Information

Camera Manufacturer	LUCID
Product Name	PHX081S-MC-IX
Product Family	Phoenix 8.1 MP Model (IMX566)
Product Line	Phoenix
Camera Category	Area Scan

Sensor

Sensor Vendor	Sony
Sensor	IMX566
Shutter	Global
Sensor Format	2/3"
Sensor Diagonal	11.1mm
Sensor Type	CMOS
Sensor Size	---
Resolution (H×V)	2840 px × 2840 px
Resolution	8.1 MP
Pixel Size (H×V)	2.74 µm × 2.74 µm
Frame rate	13.8 FPS (14.8 FPS) @ 8.1 MP
Exposure Time	25 μs to 10 s (Normal) 2.296 μs to 2.464 μs (Short Mode)
Mono/Color	Mono
Spectrum	Visible

EMVA 1288

Quantum Efficiency	72.94 %
Dark Noise	2.44 e¯
Saturation Capacity	9606 ke¯
Dynamic Range	70.0 dB
Signal-to-Noise Ratio	39.83 dB

Camera Data

Interface	GigE Vision
Image Data Interface	1000BASE-T RJ45, PoE; ix Industrial, PoE; FFC, PoE
Pixel Bit Depth	12 bit
Synchronization
Exposure Control	Software trigger hardware trigger PTP (IEEE 1588)
Digital Input	3
Digital Output	3
Power Supply	PoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements	3 W

Housing

Housing Type	Box
Housing Size	28 mm × 28 mm × 28.4 mm
Weight	39 g
Lens Mount	C-mount
Operating Temperature	-10 to 55°C ambient

Conformity

Compliances	CE FCC RoHS REACH WEEE
Warranty	3 year
Standards

More Information

Source Link	LUCID PHX081S-MC-IX
Others

Technical Drawing

/lucid/assets/phoenix-8-1-mp-imx566_outline_1.svg

/lucid/assets/phoenix-8-1-mp-imx566_outline_2.svg

/lucid/assets/phoenix-8-1-mp-imx566_outline_3.svg
