Camera Details

Show technical details of the camera.

PDH050S-CC-FFC

LUCID Phoenix 5.0 MP (x2) Dual Extended-Head Model

Sensor	Sony IMX264
Mono/Color	Color
Resolution	5.0 MP
Size (H×V)	2448 px × 2048 px
Interface	GigE Vision
Sensor Format	2/3"
Pixel Size	3.45 µm × 3.45 µm
Frame Rate	fps
List Price	USD $920

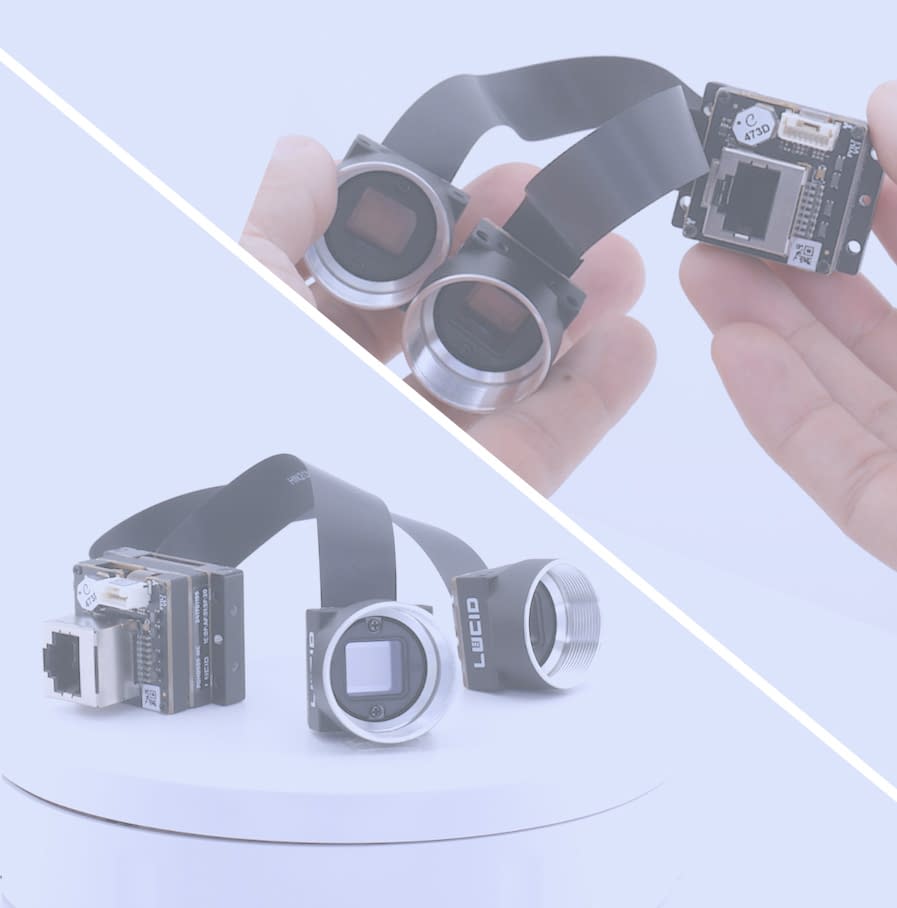

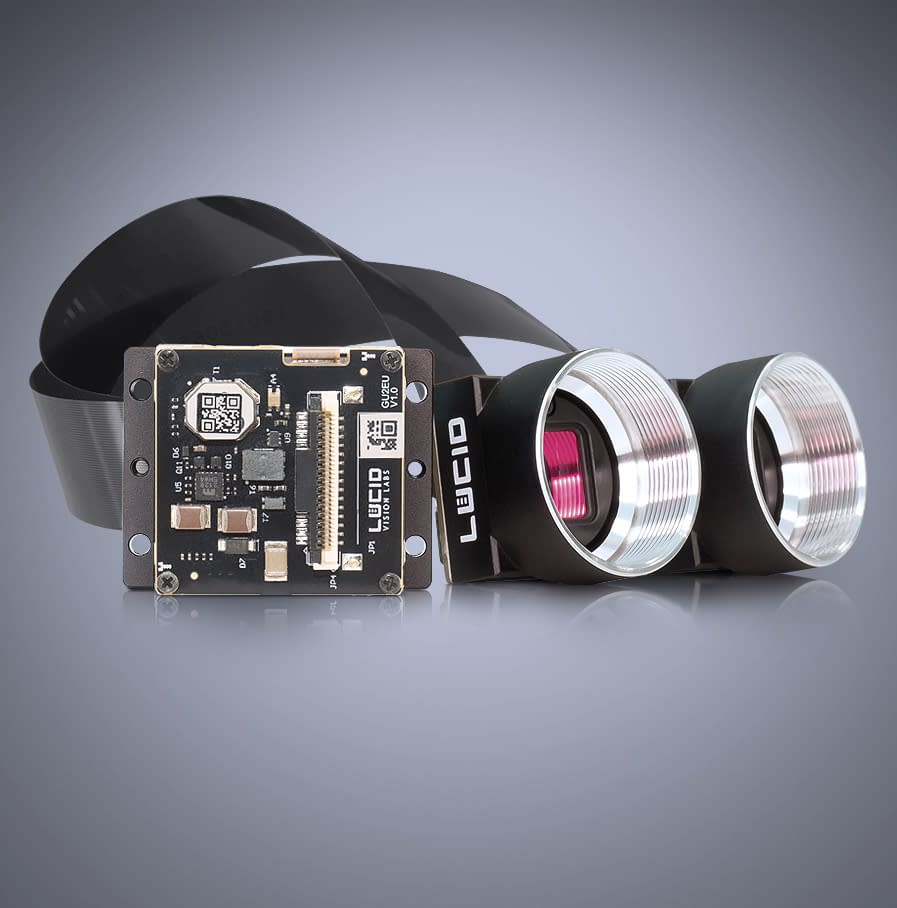

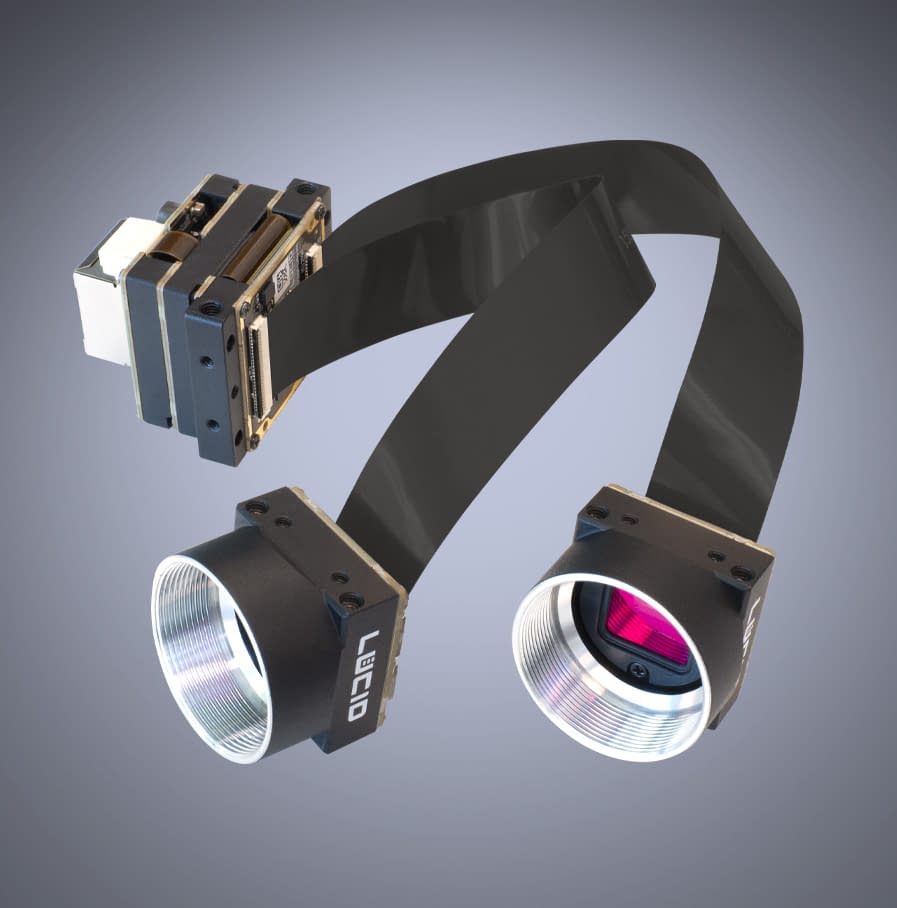

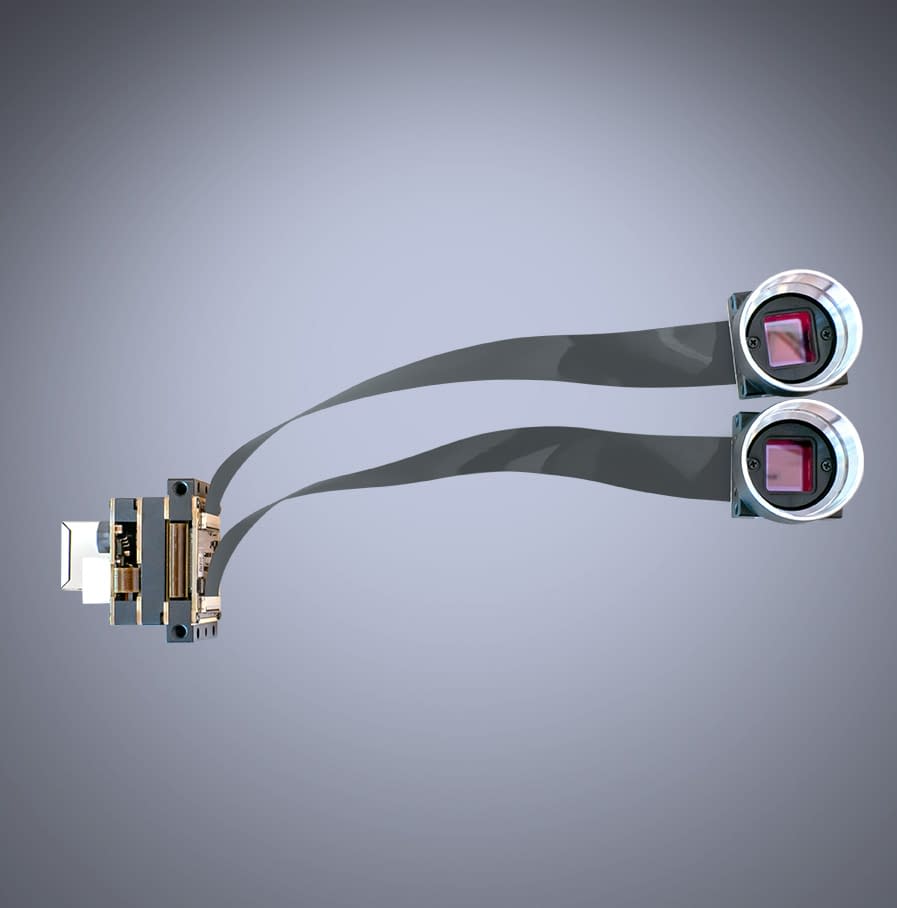

Phoenix is a flexible GigE PoE camera module designed for easy OEM integration. With a wide selection of sensors from 0.4 MP to 20 MP, 6 lens mounts, 3 camera orientations, and 3 interface connector options, the camera can be adapted for various applications.

General Information

Camera Manufacturer	LUCID
Product Name	PDH050S-CC-FFC
Product Family	Phoenix 5.0 MP (x2) Dual Extended-Head Model
Product Line	Phoenix
Camera Category	Area Scan

Sensor

Sensor Vendor	Sony
Sensor	IMX264
Shutter	Global
Sensor Format	2/3"
Sensor Diagonal	11.1mm
Sensor Type	CMOS
Sensor Size	---
Resolution (H×V)	2448 px × 2048 px
Resolution	5.0 MP
Pixel Size (H×V)	3.45 µm × 3.45 µm
Frame rate	11.1 FPS @ 5.0 MP (per sensor) (12.3 FPS @ 5.0 MP (per sensor))
Exposure Time	33.48 μs to 10 s (Normal) 1.048 μs to 14.44 μs (Short Mode)
Mono/Color	Color
Spectrum	Visible

EMVA 1288

Quantum Efficiency	64.6 %
Dark Noise	2.15 e¯
Saturation Capacity	10679 ke¯
Dynamic Range	71.7 dB
Signal-to-Noise Ratio	40.28 dB

Camera Data

Interface	GigE Vision

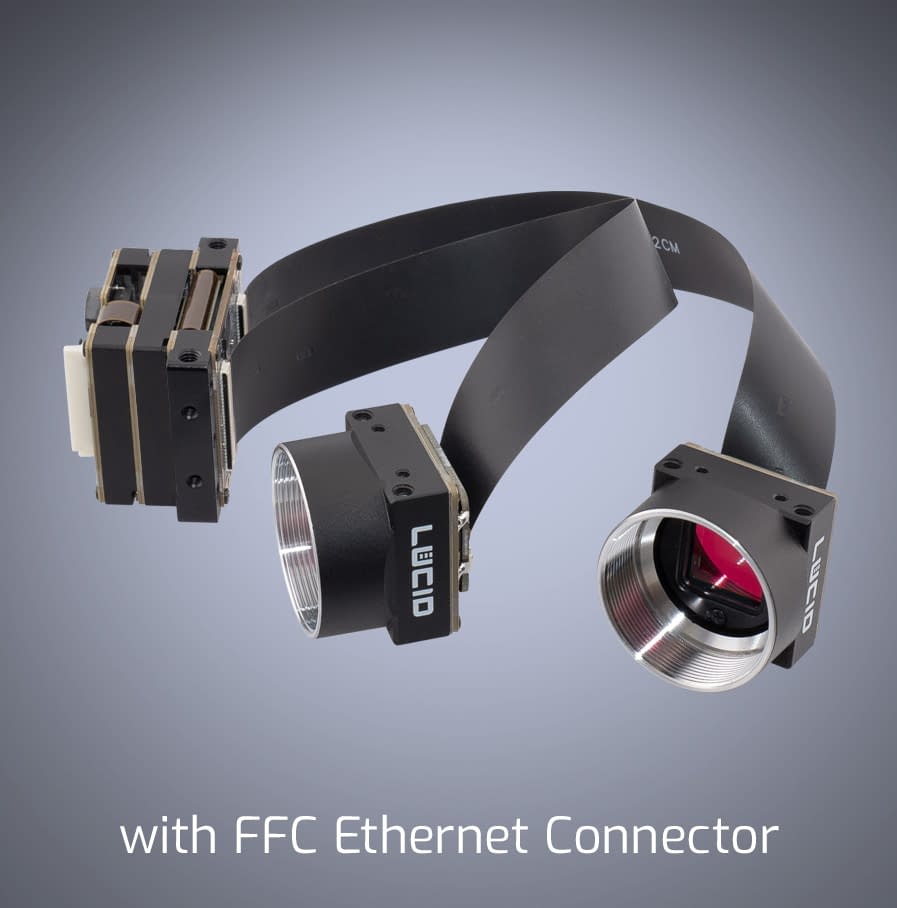

Image Data Interface	1000BASE-T RJ45, PoE; FFC, PoE
Pixel Bit Depth	12 bit
Synchronization
Exposure Control	Software trigger hardware trigger PTP (IEEE 1588)
Digital Input	3
Digital Output	3
Power Supply	PoE (IEEE 802.3af), or 12-24 VDC external
Power Requirements	3.3 W

Housing

Housing Type	Box
Housing Size	28 mm × 36 mm × 32.8* mm
Weight	54 g
Lens Mount	C-mount
Operating Temperature	-10 to 55°C ambient

Conformity

Compliances	CE FCC RoHS REACH WEEE
Warranty	3 year
Standards

More Information

Source Link	LUCID PDH050S-CC-FFC
Others

Technical Drawing

/lucid/assets/phoenix-5mp-dual-head-model-imx264_outline_1.svg
