Camera Details

Show technical details of the camera.

ATX450N-CT2

LUCID Atlas10 45 MP Model (onsemi XGS 45000)

Sensor onsemi XGS
Mono/Color Color
Resolution 44.7 MP
Size (H×V) 8192 px × 5460 px
Interface 10GigE
Sensor Format 2.2"
Pixel Size 3.2 µm × 3.2 µm
Frame Rate 16 fps
List Price USD $6950
Explore our Atlas10 - 10GigE RDMA Cameras. 10 Gigabit Ethernet with Power over Ethernet (PoE) paired with high quality global shutter and rolling shutter CMOS sensors allows the Atlas10 to achieve superior imaging performance with fast frame rates in an compact industrial camera. With the option to reduce the region of interest (ROI), along with binning and decimation options, users can unlock even higher frame rates on the Atlas10. All Atlas10 models support Remote Direct Memory Access (RDMA), when paired with one of LUCID’s RDMA HCA network interface cards, to provide zero-copy data transfer, bypassing the CPU and OS for more efficient and reliable camera streaming.
General Information
Camera ManufacturerLUCID
Product NameATX450N-CT2
Product FamilyAtlas10 45 MP Model (onsemi XGS 45000)
Product LineAtlas10
Camera CategoryArea Scan

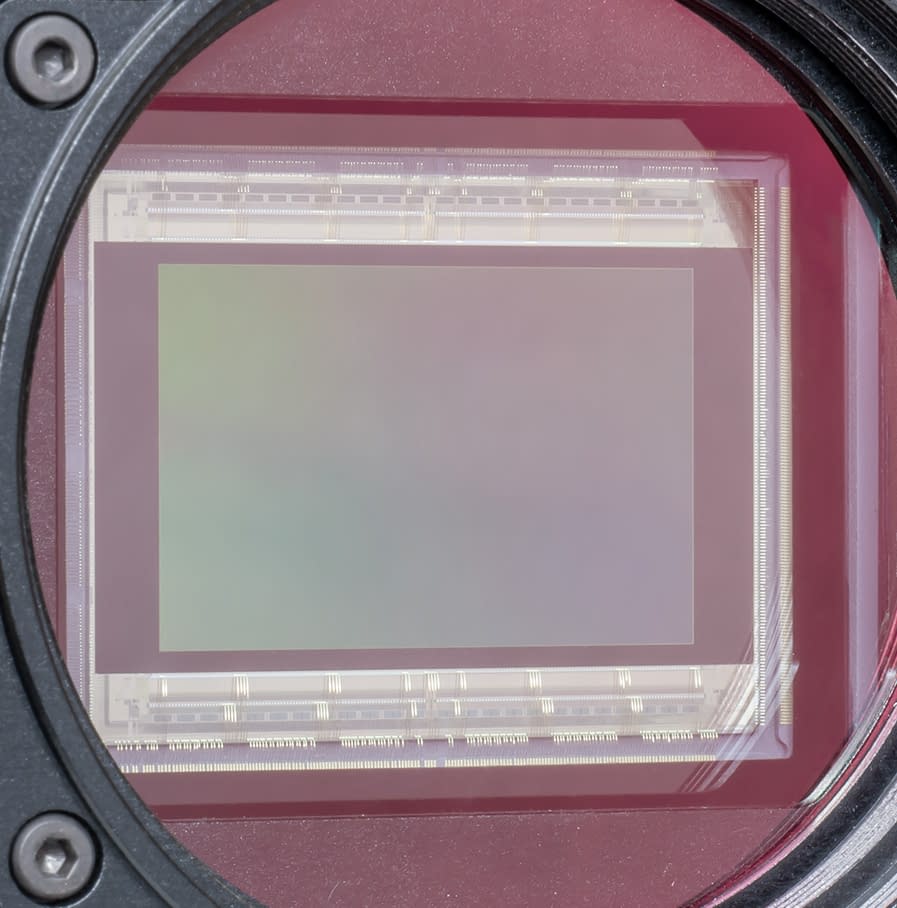

Sensor
Sensor Vendoronsemi
SensorXGS
ShutterGlobal Shutter
Sensor Format2.2"
Sensor Diagonal31.5mm
Sensor TypeCMOS
Sensor Size---
Resolution (H×V)8192 px × 5460 px
Resolution44.7 MP
Pixel Size (H×V)3.2 µm × 3.2 µm
Frame rate16.0 FPS (16.0 FPS) @ 44.7 MP (8 Bit ADC mode) 12.3 FPS (13.8 FPS) @ 44.7 MP (10 Bit ADC mode) 12.3 FPS (13.8 FPS) @ 44.7 MP (12 Bit ADC mode)
Exposure Time73.328 μs to 10 s
Mono/ColorColor
SpectrumVisible
EMVA 1288
Quantum Efficiency56.93 %
Dark Noise4.26 e¯
Saturation Capacity8609 ke¯
Dynamic Range65.0 dB
Signal-to-Noise Ratio39.35 dB
Camera Data
Interface10GigE
Image Data Interface10GBASE-T*, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX; M12, PoE (*10GBASE-T runs in Short Reach Mode, 25m cable length max)
Pixel Bit Depth
12 bit
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)
Digital Input3
Digital Output3
Power SupplyPoE+ (IEEE 802.3at) or 12-24 V through GPIO
Power Requirements11.5 W

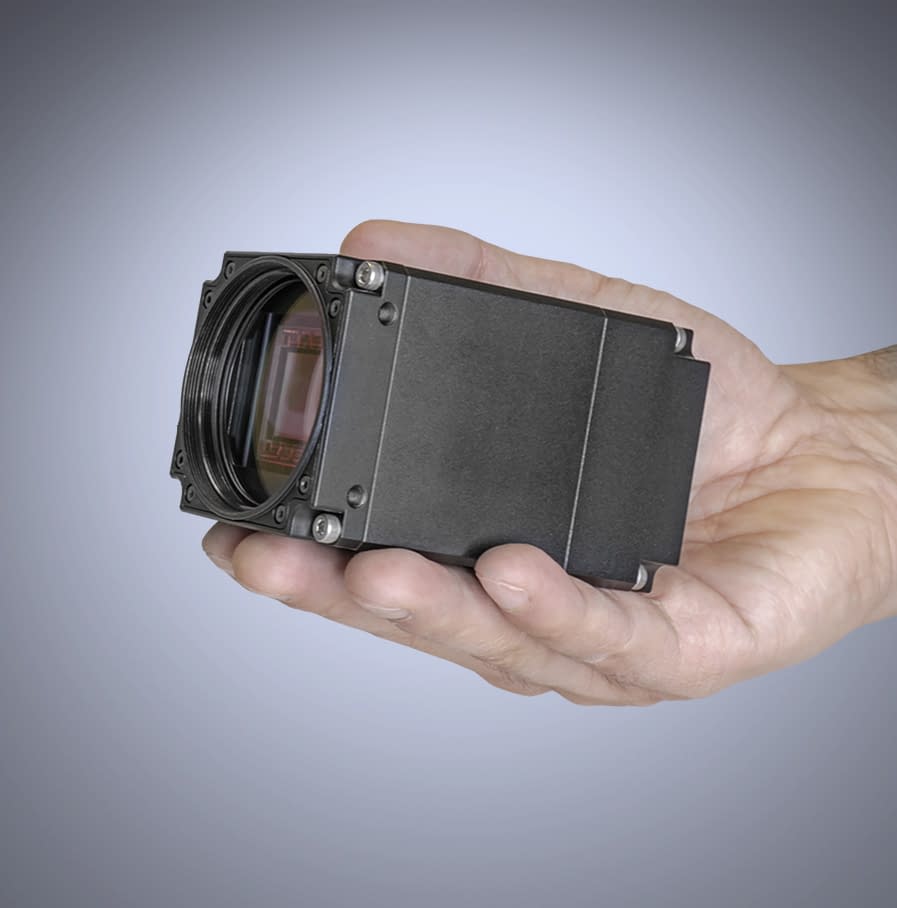

Housing
Housing TypeBox
Housing Size55 mm × 55 mm × 95.5 mm
Weight304 g
Lens Mount

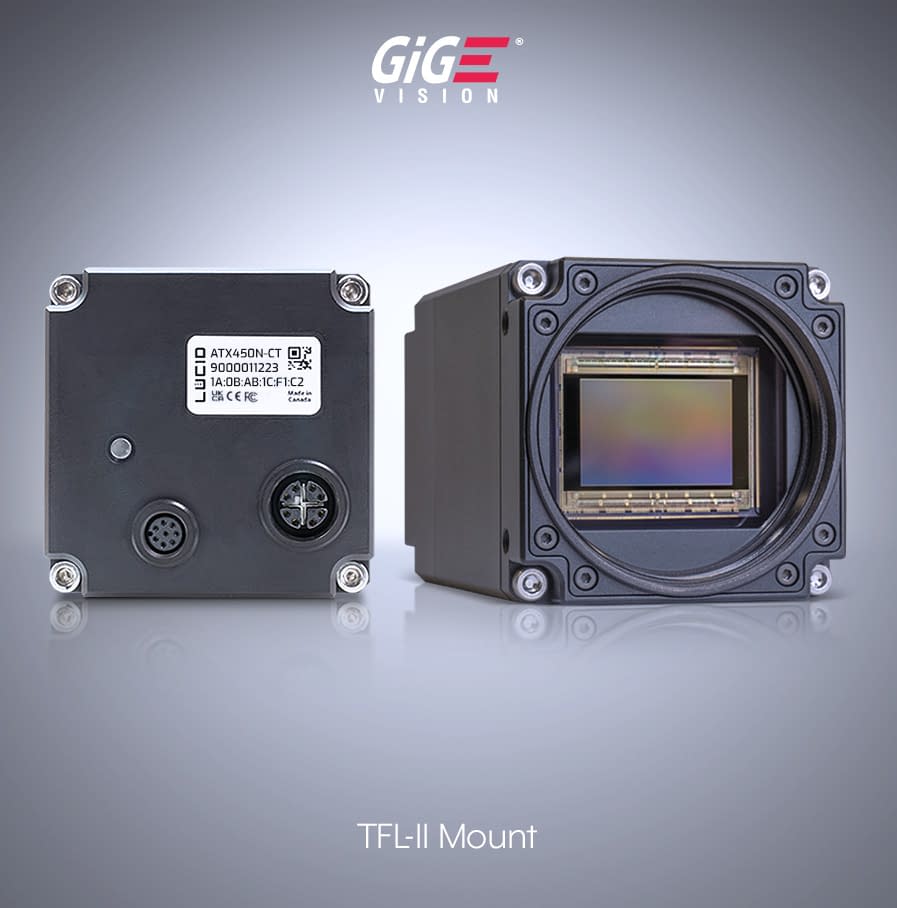

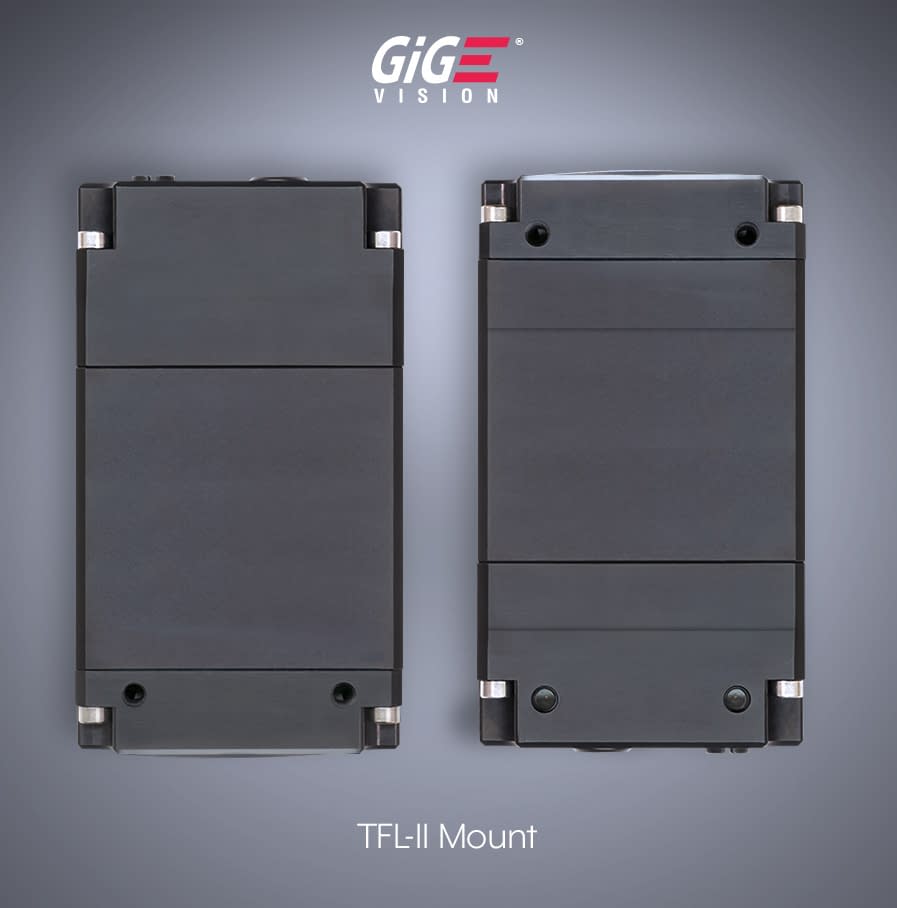

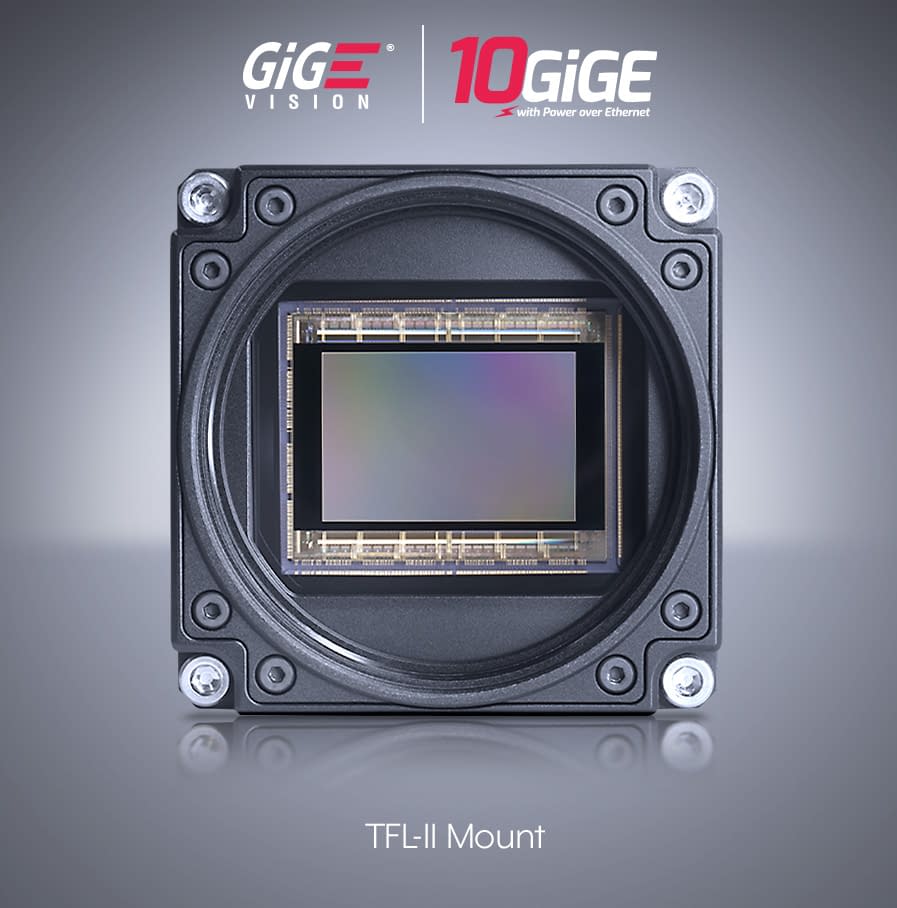

TFL-II mount
Operating Temperature-20 to 50°C ambient
Conformity
Compliances
CE
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID ATX450N-CT2
Others
Technical Drawing
/lucid/assets/atlas10-45-mp-onsemi-xgs45000_outline_1.svg
