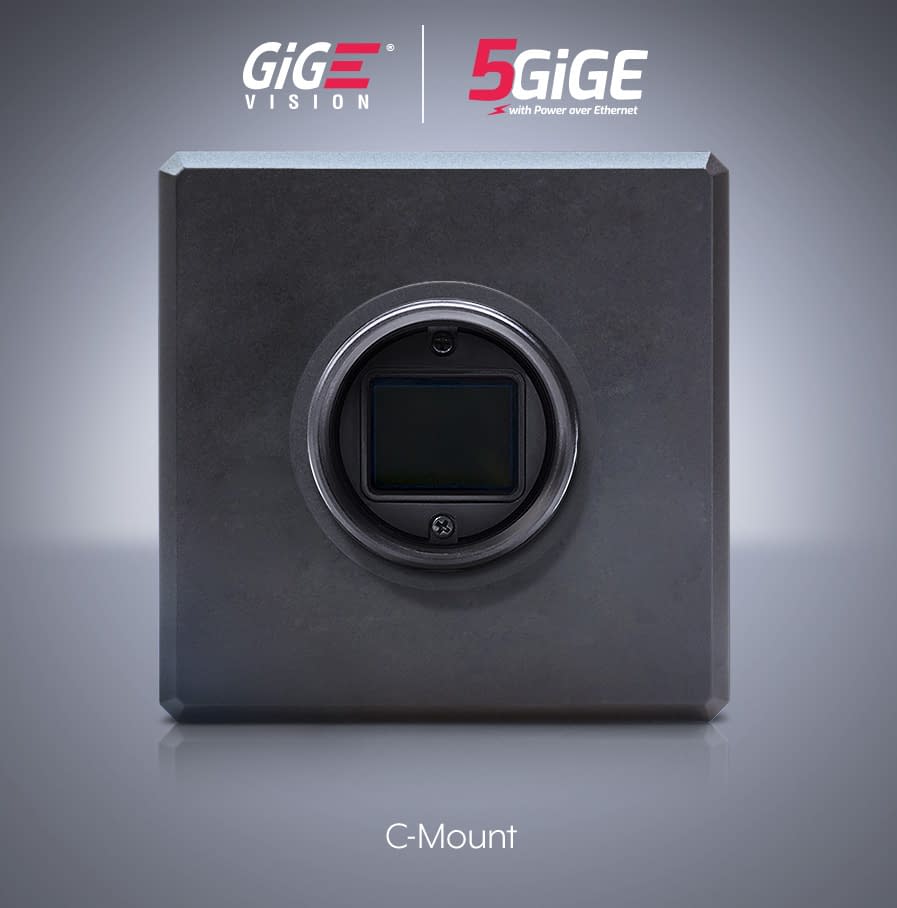

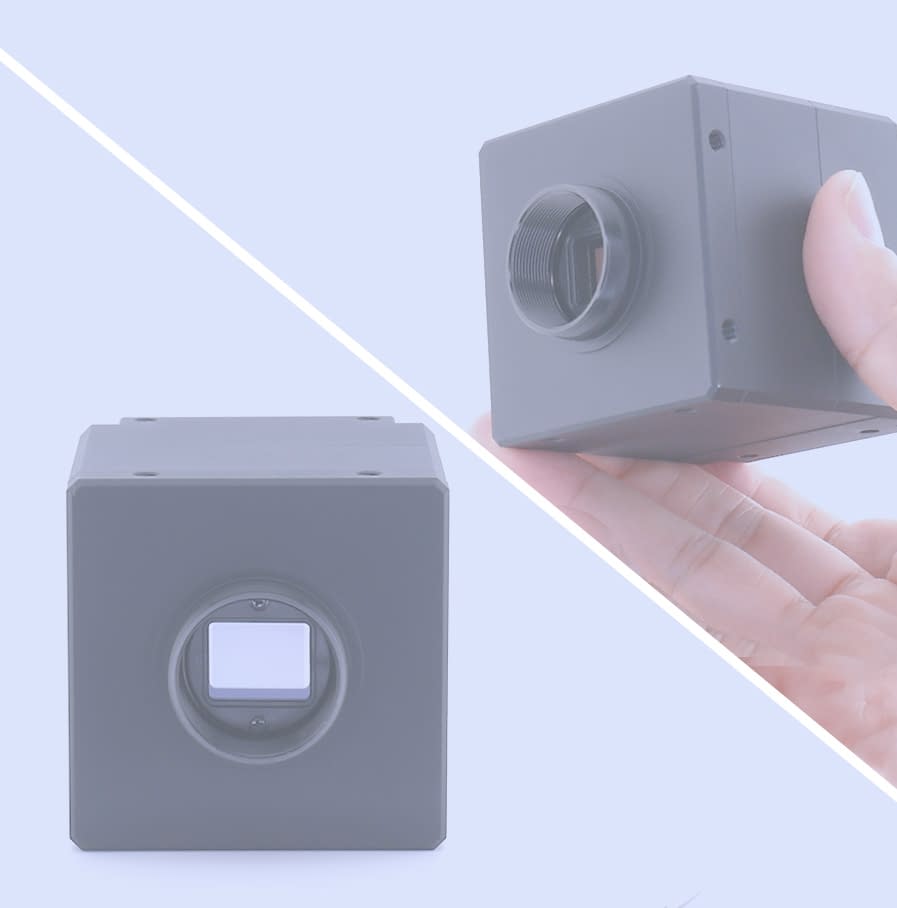

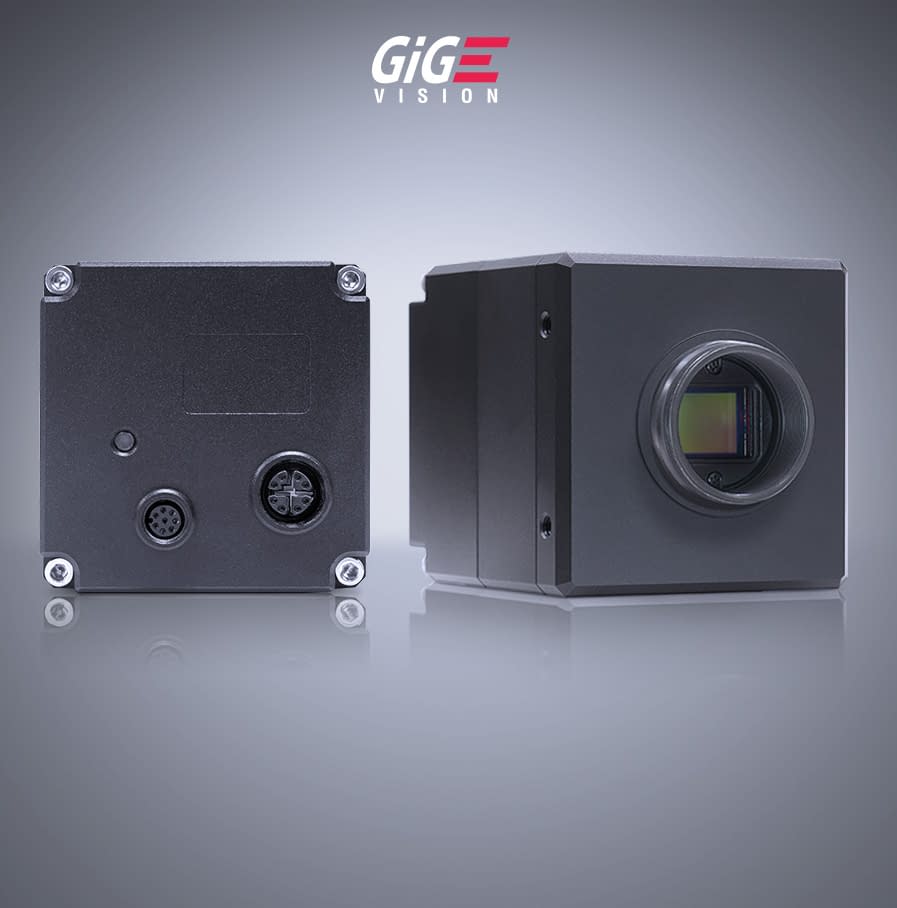

LUCID Atlas IP67 20.4 MP Model (IMX541)
| Sensor | Sony IMX541 |
| Mono/Color | Color |
| Resolution | 20.4 MP |
| Size (H×V) | 4504 px × 4504 px |
| Interface | 5GigE |
| Sensor Format | 1.1" |
| Pixel Size | 2.74 µm × 2.74 µm |
| Frame Rate | 29.8 fps |
| List Price | USD $2400 |
| Camera Manufacturer | LUCID |
| Product Name | ATP204S-CC |
| Product Family | Atlas IP67 20.4 MP Model (IMX541) |
| Product Line | Atlas |
| Camera Category | Area Scan |
| Sensor Vendor | Sony |
| Sensor | IMX541 |
| Shutter | Global |
| Sensor Format | 1.1" |
| Sensor Diagonal | 17.5mm |
| Sensor Type | CMOS |
| Sensor Size | --- |
| Resolution (H×V) | 4504 px × 4504 px |
| Resolution | 20.4 MP |
| Pixel Size (H×V) | 2.74 µm × 2.74 µm |
| Frame rate | 27.4 FPS (29.8 FPS) @ 20.4 MP (8 Bit ADC mode) 27.4 FPS (28.6 FPS) @ 20.4 MP (10 Bit ADC mode) 26.1 FPS (26.1 FPS) @ 20.4 MP (12 Bit ADC mode) |
| Exposure Time | 10.74 μs to 10 s (Normal) / 2.29 μs to 2.46 μs (Short Mode) |
| Mono/Color | Color |
| Spectrum | Visible |
| Quantum Efficiency | 57.79 % |
| Dark Noise | 2.1 e¯ |
| Saturation Capacity | 9501 ke¯ |
| Dynamic Range | 70.8 dB |
| Signal-to-Noise Ratio | 39.8 dB |
| Interface | 5GigE |
| Image Data Interface | 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX; M12, PoE |
| Pixel Bit Depth | 8, 10, 12 bit |
| Synchronization | |
| Exposure Control | Software trigger hardware trigger PTP (IEEE 1588) |
| Digital Input | 3 |
| Digital Output | 3 |
| Power Supply | PoE (IEEE 802.3af), or 12-24 VDC external |
| Power Requirements | 7 W |
| Housing Type | Box |
| Housing Size | 60 mm × 60 mm × 65 mm |
| Weight | 340 g |

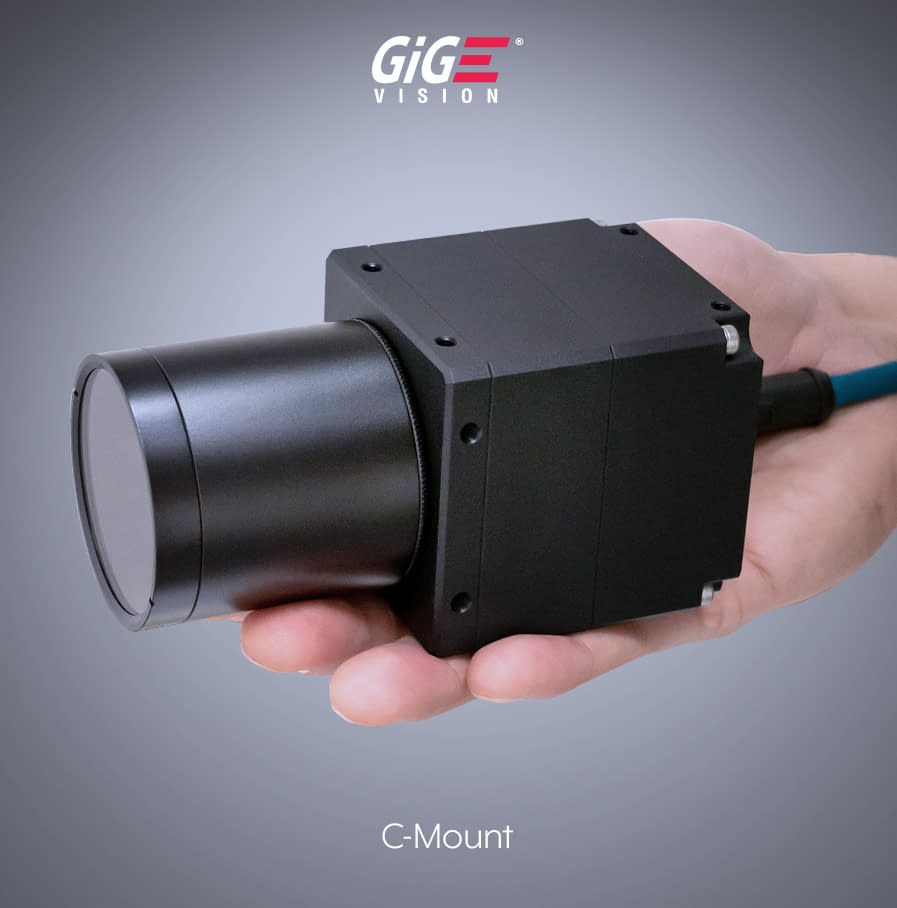

| Lens Mount | C-mount |
| Operating Temperature | -20 to 55°C ambient |
| Compliances | CE FCC RoHS REACH WEEE |
| Warranty | 3 year |
