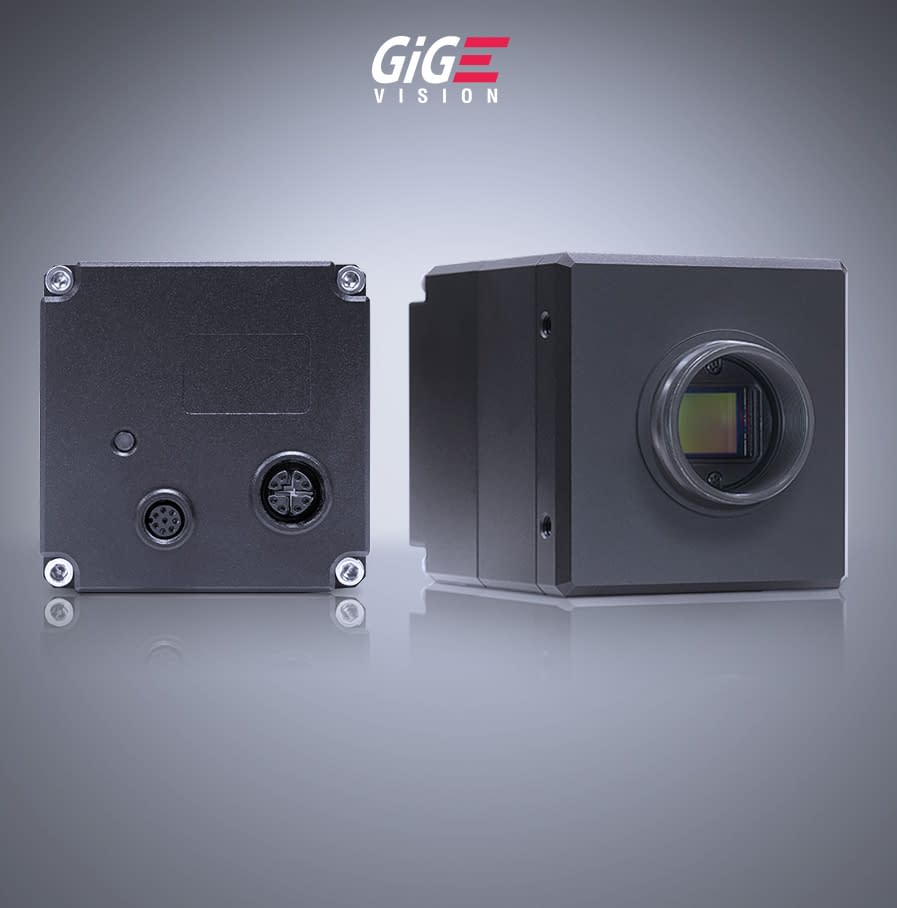

ATP200S-CC
LUCID Atlas IP67 20 MP Model (IMX183)
| Sensor | Sony IMX183 |
| Mono/Color | Color |
| Resolution | 20.0 MP |
| Size (H×V) | 5472 px × 3648 px |
| Interface | 5GigE |
| Sensor Format | 1" |
| Pixel Size | 2.4 µm × 2.4 µm |
| Frame Rate | 12 fps |
| List Price | USD $1150 |
Atlas Series
Camera Details
Show technical details of the camera.
General Information
| Camera Manufacturer | LUCID |
| Product Name | ATP200S-CC |
| Product Family | Atlas IP67 20 MP Model (IMX183) |
| Product Line | Atlas |
| Camera Category | Area Scan |
Sensor
| Sensor Vendor | Sony |
| Sensor | IMX183 |
| Shutter | Rolling with global reset |
| Sensor Format | 1" |
| Sensor Diagonal | 15.86mm |
| Sensor Type | CMOS |
| Sensor Size | --- |
| Resolution (H×V) | 5472 px × 3648 px |
| Resolution | 20.0 MP |
| Pixel Size (H×V) | 2.4 µm × 2.4 µm |
| Frame rate | 17.9 FPS @ 20 MP (12 Bit ADC mode) |
| Exposure Time | 122.18 μs to 2.5 s |
| Mono/Color | Color |
| Spectrum | Visible |
EMVA 1288
| Quantum Efficiency | 73.46 % |
| Dark Noise | 3 e¯ |
| Saturation Capacity | 14506 ke¯ |
| Dynamic Range | 71.9 dB |
| Signal-to-Noise Ratio | 41.6 dB |
Camera Data
| Interface | 5GigE |
| Image Data Interface | 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX; M12, PoE |
| Pixel Bit Depth | 12 bit |
| Synchronization | |
| Exposure Control | Software trigger hardware trigger PTP (IEEE 1588) |
| Digital Input | 3 |
| Digital Output | 3 |
| Power Supply | PoE (IEEE 802.3af), or 12-24 VDC external |
| Power Requirements | 7 W |
Housing
| Housing Type | Box |
| Housing Size | 60 mm × 60 mm × 65 mm |
| Weight | 340 g |

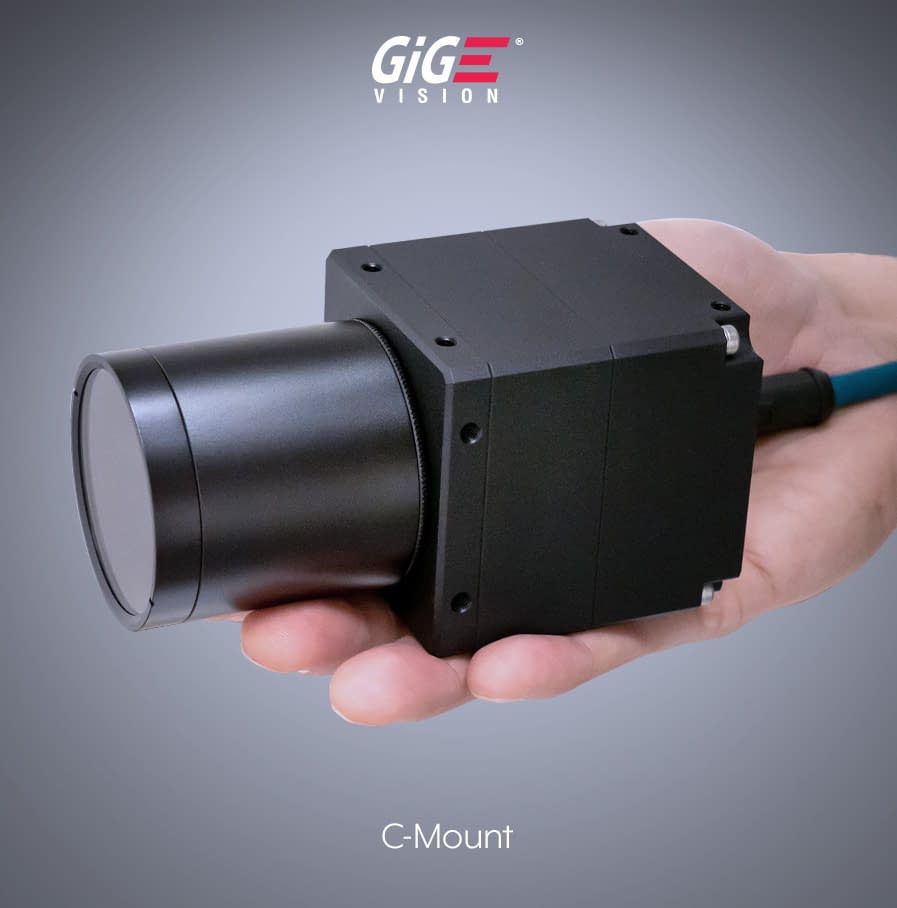

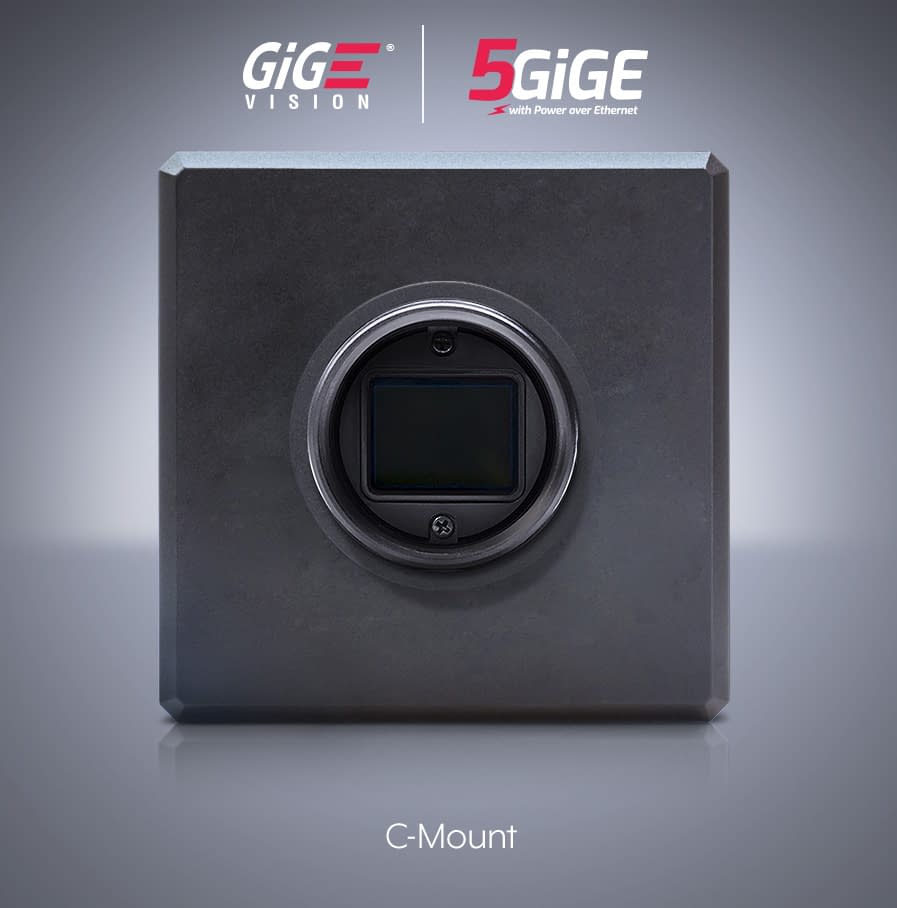

| Lens Mount | C-mount |
| Operating Temperature | -20 to 55°C ambient |
Conformity
| Compliances | CE FCC RoHS REACH WEEE |
| Warranty | 3 year |
| Standards |
More Information
| Source Link | LUCID ATP200S-CC |
| Others |
Technical Drawing
