ATP120S-CC
LUCID Atlas IP67 12.3 MP Model (IMX253)
| Sensor | Sony IMX253 |
| Mono/Color | Color |
| Resolution | 12.3 MP |
| Size (H×V) | 4096 px × 3000 px |
| Interface | 5GigE |
| Sensor Format | 1.1" |
| Pixel Size | 3.45 µm × 3.45 µm |
| Frame Rate | 8 fps |
| List Price | USD $2890 |
Atlas Series
Camera Details
Show technical details of the camera.
General Information
| Camera Manufacturer | LUCID |
| Product Name | ATP120S-CC |
| Product Family | Atlas IP67 12.3 MP Model (IMX253) |
| Product Line | Atlas |
| Camera Category | Area Scan |
Sensor
| Sensor Vendor | Sony |
| Sensor | IMX253 |
| Shutter | Global |
| Sensor Format | 1.1" |
| Sensor Diagonal | 17.6mm |
| Sensor Type | CMOS |
| Sensor Size | --- |
| Resolution (H×V) | 4096 px × 3000 px |
| Resolution | 12.3 MP |
| Pixel Size (H×V) | 3.45 µm × 3.45 µm |
| Frame rate | 42.5 FPS @ 12.3 MP (8 Bit ADC mode) 34.5 FPS @ 12.3 MP (10 Bit ADC mode) 29.1 FPS @ 12.3 MP (12 Bit ADC mode) |
| Exposure Time | 25.4 μs to 10 s (Normal) / 1 μs to 16 μs (Short Mode) |
| Mono/Color | Color |
| Spectrum | Visible |
EMVA 1288
| Quantum Efficiency | 63.27 % |
| Dark Noise | 2.18 e¯ |
| Saturation Capacity | 10223 ke¯ |
| Dynamic Range | 71.2 dB |
| Signal-to-Noise Ratio | 40.1 dB |
Camera Data
| Interface | 5GigE |
| Image Data Interface | 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX; M12, PoE |
| Pixel Bit Depth | 8, 10, 12 bit |
| Synchronization | |
| Exposure Control | Software trigger hardware trigger PTP (IEEE 1588) |
| Digital Input | 3 |
| Digital Output | 3 |
| Power Supply | PoE (IEEE 802.3af), or 12-24 VDC external |
| Power Requirements | 7 W |
Housing
| Housing Type | Box |
| Housing Size | 60 mm × 60 mm × 65 mm |
| Weight | 340 g |

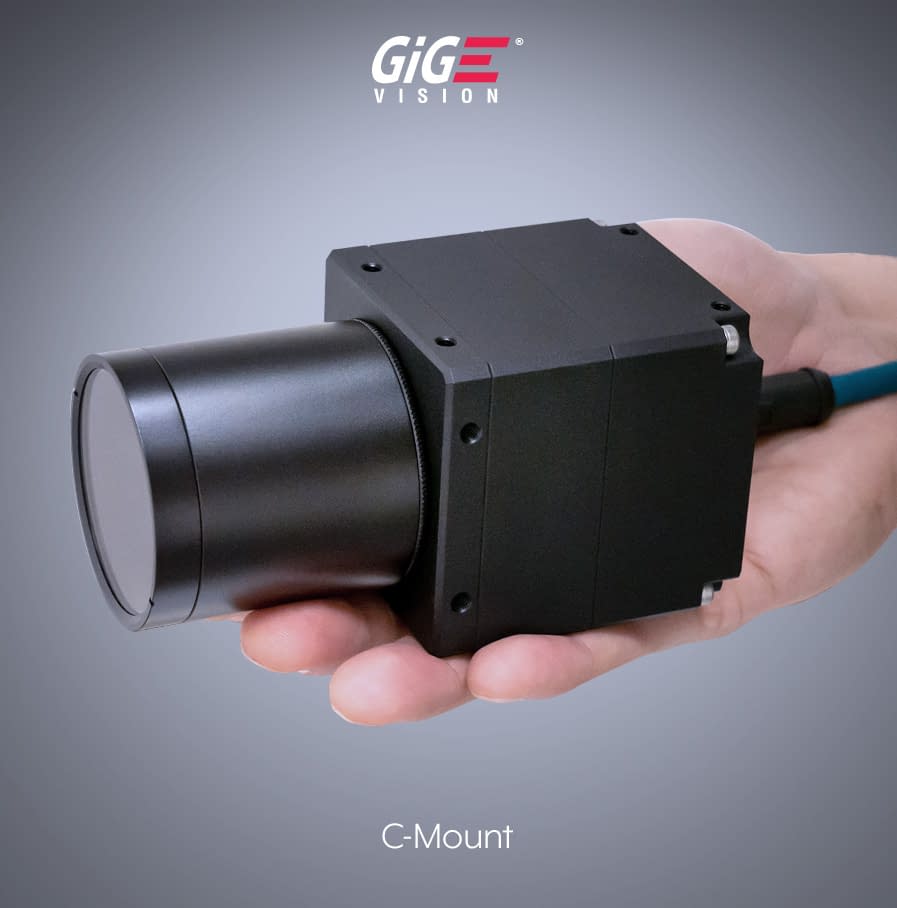

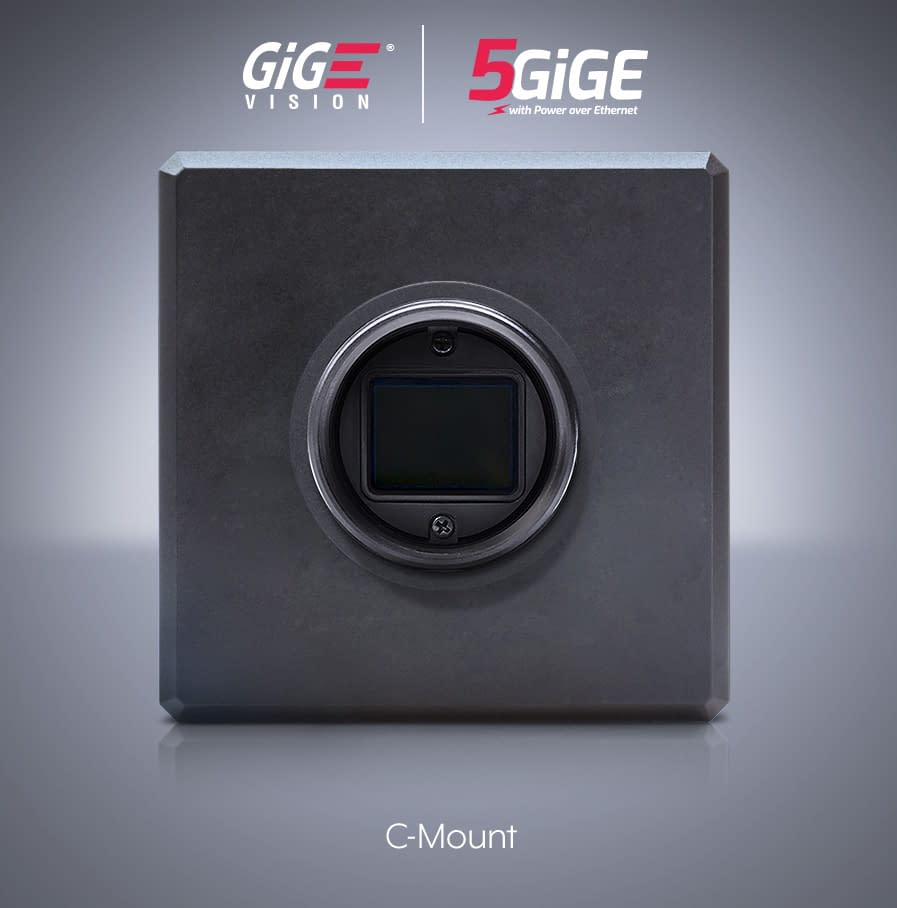

| Lens Mount | C-mount |
| Operating Temperature | -20 to 55°C ambient |
Conformity
| Compliances | CE FCC RoHS REACH WEEE |
| Warranty | 3 year |
| Standards |
More Information
| Source Link | LUCID ATP120S-CC |
| Others |
Technical Drawing
