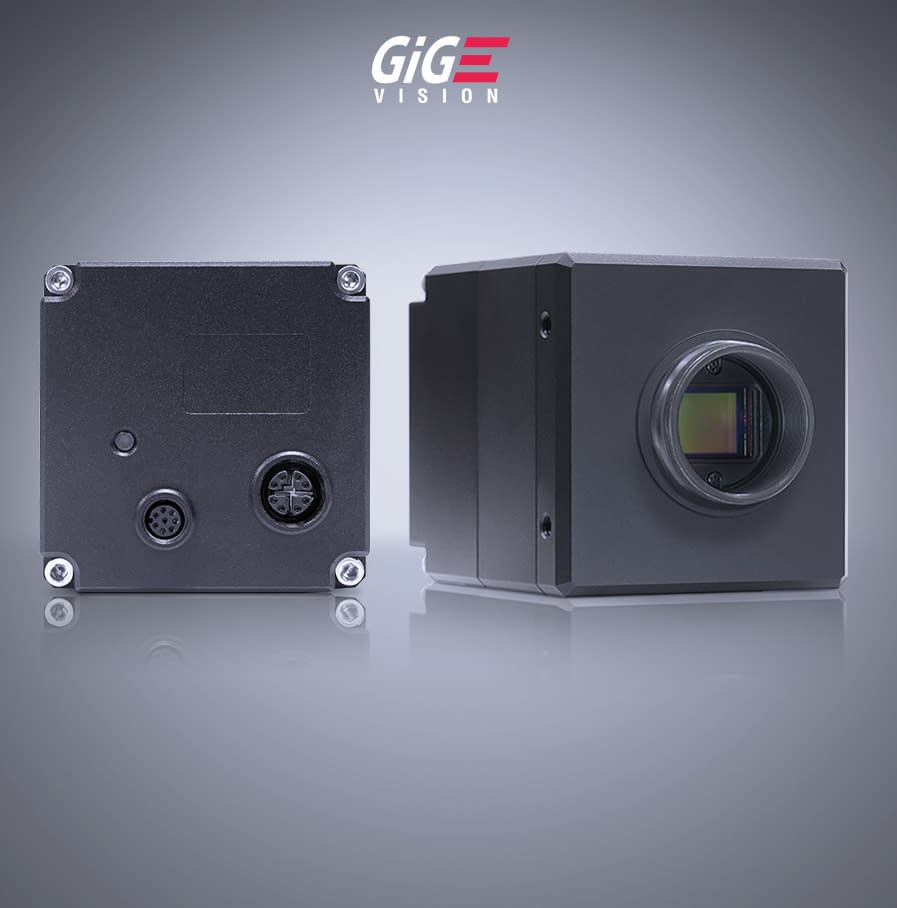

ATP028S-CC
LUCID Atlas IP67 2.8 MP Model (IMX421)
| Sensor | Sony IMX421 |
| Mono/Color | Color |
| Resolution | 2.8 MP |
| Size (H×V) | 1936 px × 1464 px |
| Interface | 5GigE |
| Sensor Format | 2/3" |
| Pixel Size | 4.5 µm × 4.5 µm |
| Frame Rate | 173 fps |
| List Price | USD $1280 |
Atlas Series
Camera Details
Show technical details of the camera.
General Information
| Camera Manufacturer | LUCID |
| Product Name | ATP028S-CC |
| Product Family | Atlas IP67 2.8 MP Model (IMX421) |
| Product Line | Atlas |
| Camera Category | Area Scan |
Sensor
| Sensor Vendor | Sony |
| Sensor | IMX421 |
| Shutter | Global |
| Sensor Format | 2/3" |
| Sensor Diagonal | 11mm |
| Sensor Type | CMOS |
| Sensor Size | --- |
| Resolution (H×V) | 1936 px × 1464 px |
| Resolution | 2.8 MP |
| Pixel Size (H×V) | 4.5 µm × 4.5 µm |
| Frame rate | 173 FPS (173 FPS) @ 2.8 MP (8 Bit ADC mode) 143 FPS (143 FPS) @ 2.8 (10 Bit ADC mode) 121 FPS (121 FPS) @ 2.8 (12 Bit ADC mode) |
| Exposure Time | 10.3 μs to 10 s (Normal) / 1 μs to 5 μs (Short Mode) |
| Mono/Color | Color |
| Spectrum | Visible |
EMVA 1288
| Quantum Efficiency | 68.37 % |
| Dark Noise | 5.73 e¯ |
| Saturation Capacity | 25601 ke¯ |
| Dynamic Range | 71.9 dB |
| Signal-to-Noise Ratio | 44.08 dB |
Camera Data
| Interface | 5GigE |
| Image Data Interface | 5GBASE-T (5GigE), 2.5GBASE-T, 1000BASE-T, 100BASE-TX; M12, PoE |
| Pixel Bit Depth | 8, 10, 12 bit |
| Synchronization | |
| Exposure Control | Software trigger hardware trigger PTP (IEEE 1588) |
| Digital Input | 3 |
| Digital Output | 3 |
| Power Supply | PoE (IEEE 802.3af), or 12-24 VDC external |
| Power Requirements | 7 W |
Housing
| Housing Type | Box |
| Housing Size | 60 mm × 60 mm × 65 mm |
| Weight | 340 g |

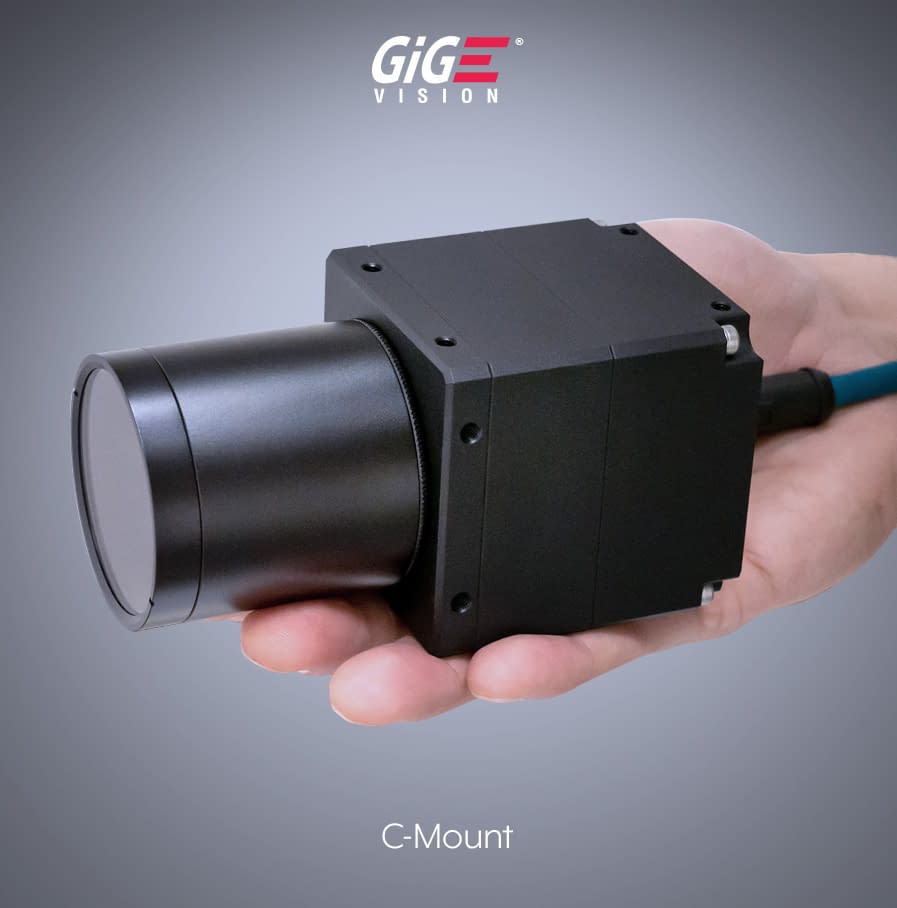

| Lens Mount | C-mount |
| Operating Temperature | -20 to 55°C ambient |
Conformity
| Compliances | CE FCC RoHS REACH WEEE |
| Warranty | 3 year |
| Standards |
More Information
| Source Link | LUCID ATP028S-CC |
| Others |
Technical Drawing
