Camera Details

Show technical details of the camera.

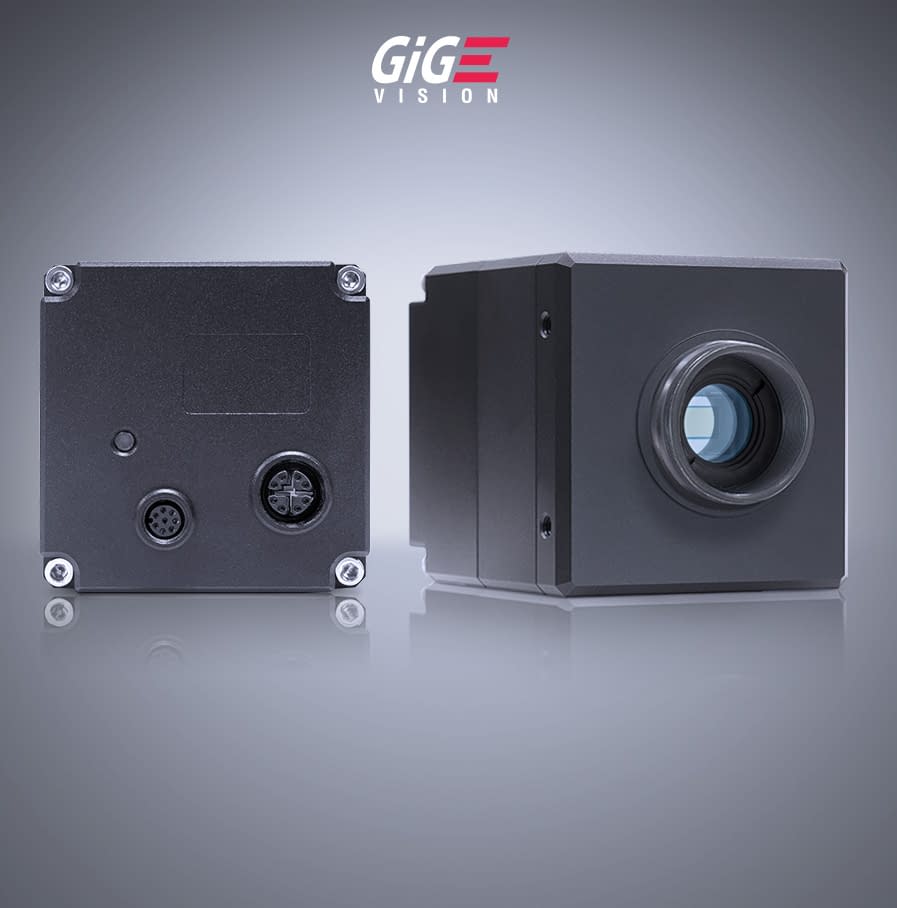

ATP013S-WC

LUCID Atlas SWIR 1.3MP IP67 Model

Sensor Sony IMX990
Mono/Color Mono
Resolution 1.3 MP
Size (H×V) 1280 px × 1024 px
Interface GigE Vision
Sensor Format 1/2"
Pixel Size 5.0 µm × 5.0 µm
Frame Rate 94.4 fps
List Price USD $14500
LUCID’s Atlas, Triton and Triton2 SWIR cameras are IP67, GigE Vision PoE cameras featuring wide-band and high-sensitivity Sony SenSWIR 5.2 MP IMX992, 3.2 MP IMX993, 1.3 MP IMX990, and 0.3 MP IMX991 InGaAs sensors, capable of capturing images across both visible and invisible light spectrums, and boasting miniaturized pixel sizes of 3.45µm (IMX992, IMX993) and 5µm (IMX990, IMX991). The camera’s capability of capturing on the short-wavelength infrared light spectrum opens up a world of industrial applications with greater precision in fruit inspection and sorting, packaging, IR microscopy, semiconductor inspection, material sorting and more.
General Information
Camera ManufacturerLUCID
Product NameATP013S-WC
Product FamilyAtlas SWIR 1.3MP IP67 Model
Product LineAtlas SWIR
Camera CategoryArea Scan
Sensor
Sensor VendorSony
SensorIMX990
ShutterGlobal
Sensor Format1/2"
Sensor Diagonal8.2mm
Sensor TypeSWIR
Sensor Size---
Resolution (H×V)1280 px × 1024 px
Resolution1.3 MP
Pixel Size (H×V)5.0 µm × 5.0 µm
Frame rate84.9 FPS (94.4 FPS) @ 1.3 MP (8 Bit ADC mode) 84.9 FPS (94.4 FPS) @ 1.3 MP (10 Bit ADC mode) 71 FPS (71 FPS) @ 1.3 MP (12 Bit ADC mode)
Exposure Time20.5 μs to 10 s (Normal) / 2.88 μs to 7.42 μs (Short Mode)
Mono/ColorMono
SpectrumSWIR
EMVA 1288
Quantum Efficiency77 %
Dark Noise196 e¯
Saturation Capacity143000 ke¯
Dynamic Range57.2 dB
Signal-to-Noise Ratio51.5 dB
Camera Data
InterfaceGigE Vision
Image Data Interface1000BASE-T, 100BASE-TX; M12, PoE+
Pixel Bit Depth
8, 10, 12 bit
Synchronization
Exposure Control
Software trigger
hardware trigger
PTP (IEEE 1588)
Digital Input3
Digital Output3
Power SupplyPoE+ (IEEE 802.3at) or 12-24 V through GPIO
Power Requirements11.5 W
Housing
Housing TypeBox
Housing Size60 mm × 60 mm × 65 mm
Weight435 g

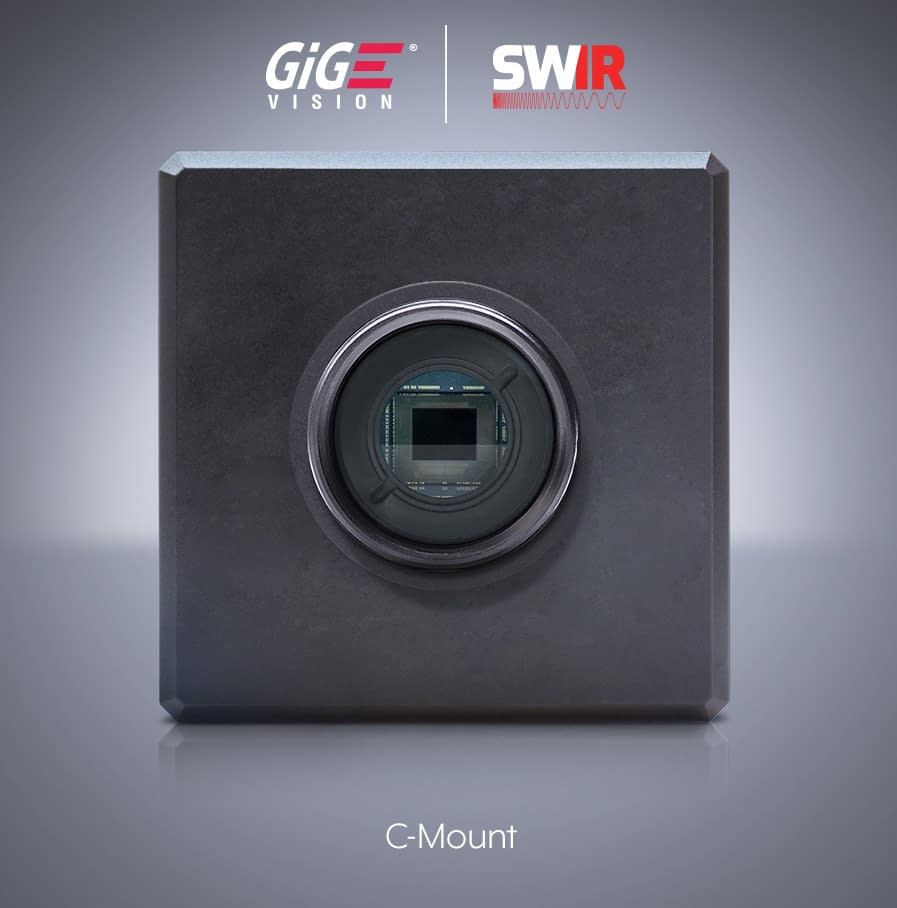

Lens Mount
C-mount
Operating Temperature-20 to 50°C Case Temperature
Conformity
Compliances
CE
FCC
RoHS
REACH
WEEE
Warranty3 year
Standards
More Information
Source LinkLUCID ATP013S-WC
Others
Technical Drawing
/lucid/assets/atlas-swir-1-3mp-model-imx990_outline_1.svg
