SW-4000T-MCL
JAI Sweep+ Series
| Sensor | Custom |
| Mono/Color | Color |
| Resolution | 4 K |
| Size (H×V) | 4096 px x 1 |
| Interface | Mini Camera Link |
| Sensor Format | 30.72 mm |
| Pixel Size | 7.5 µm x 7.5 µm or 7.5 x 10.5 µm |
| Frame Rate | 66 fps |
| List Price |

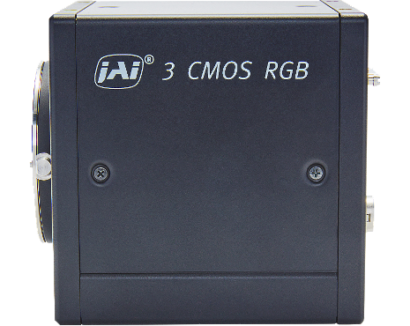

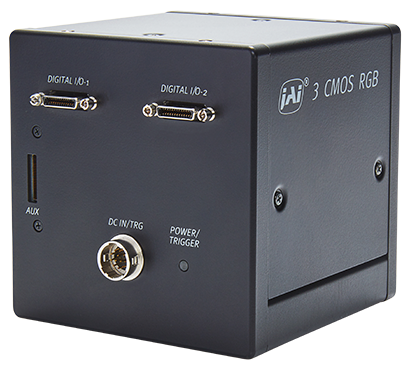

The SW-4000T-MCL is a 4K prism-based industrial RGB color line scan camera with 4,096 pixels per line and a fast, 67.7 kHz line rate. Its 3-CMOS prism design features three separate imagers that simultaneously capture red, green, and blue spectral wavebands. Included is an advanced set of features providing the best possible performance and precision for web-based or continuous color imaging applications.
