Show technical details of the camera.
ImagingSource 33U Series
| Sensor | Sony IMX545 |
| Mono/Color | Mono |
| Resolution | 12.3 MP |
| Size (H×V) | 4096 px × 3000 px |
| Interface | USB 3.0 |
| Sensor Format | 1/1.1" |
| Pixel Size | 2.74 µmx 2.74 µm |
| Frame Rate | 30 fps |
| List Price |
| Camera Manufacturer | ImagingSource |
| Product Name | DMK 33UX545 |
| Product Family | 33U Series |
| Product Line | 33U |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX545 |
| Shutter | Global |
| Sensor Format | 1/1.1" |
| Sensor Diagonal | 14.5 mm |
| Sensor Type | CMOS Pregius S |
| Sensor Size | |
| Resolution (H×V) | 4096 px × 3000 px |
| Resolution | 12.3 MP |
| Pixel Size (H×V) | 2.74 µmx 2.74 µm |
| Frame rate | 30 fps |
| Exposure Time | |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | % |
| Dark Noise | e¯ |
| Saturation Capacity | ke¯ |
| Dynamic Range | 72.2 dB |
| Signal-to-Noise Ratio | dB |
| Interface | USB 3.0 |
| Image Data Interface | |
| Pixel Bit Depth | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| Synchronization | |
| Exposure Control | |
| Digital Input | |
| Digital Output | |
| Power Supply | 4.75 VDC to 5.25 VDC |
| Power Requirements | 3.25 W |
| Housing Type | Box |
| Housing Size | 29 mm x 29 mm x 43 mm |
| Weight | 65 g |
| Lens Mount | C/CS |
| Operating Temperature | -5 °C to 50 °C |
| Compliances | |
| Warranty | |
| Standards |
| Source Link | ImagingSource DMK 33UX545 |
| Others |

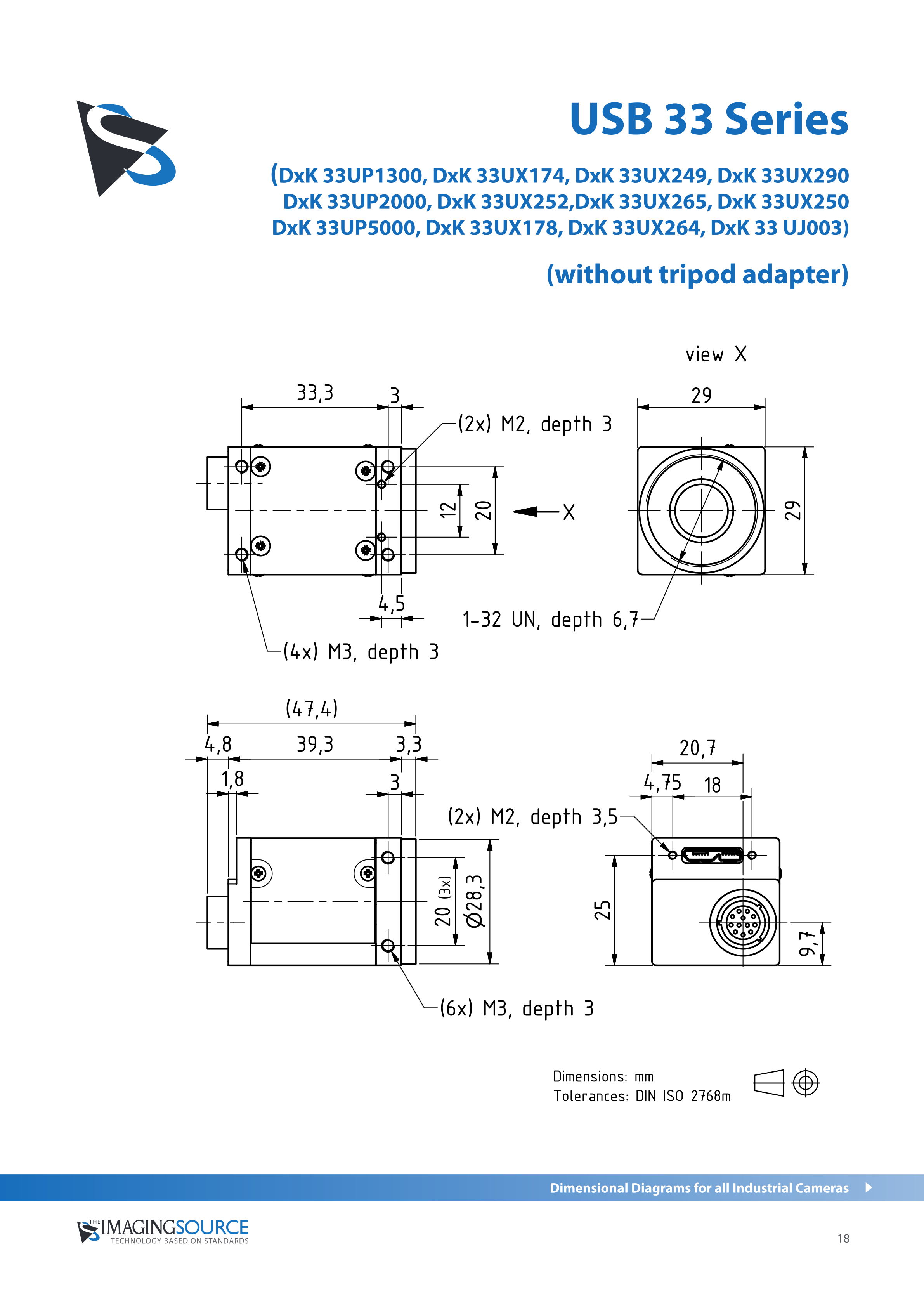

,(without tripod adapter).png)

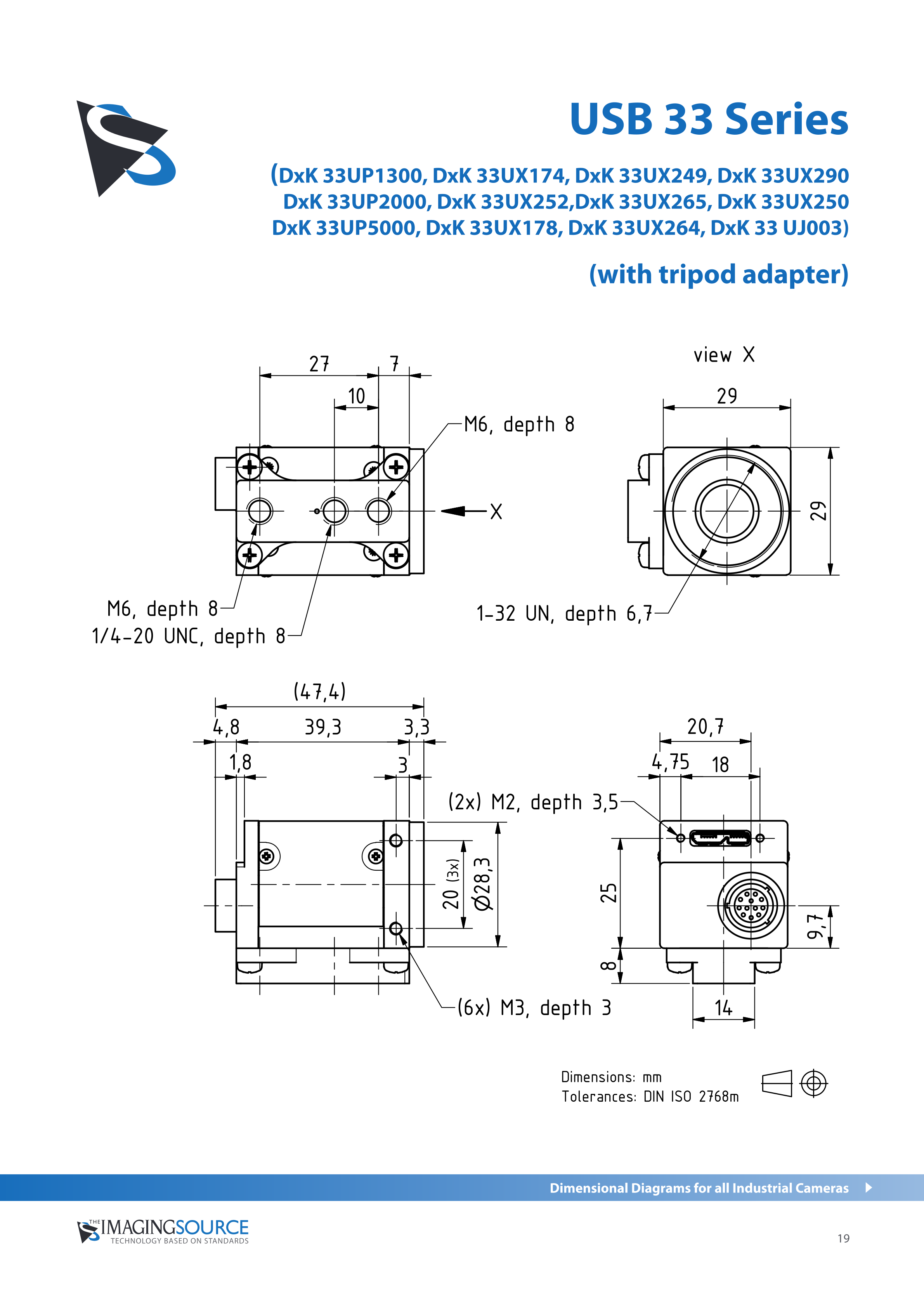

,(with tripod adapter).png)
