Show technical details of the camera.

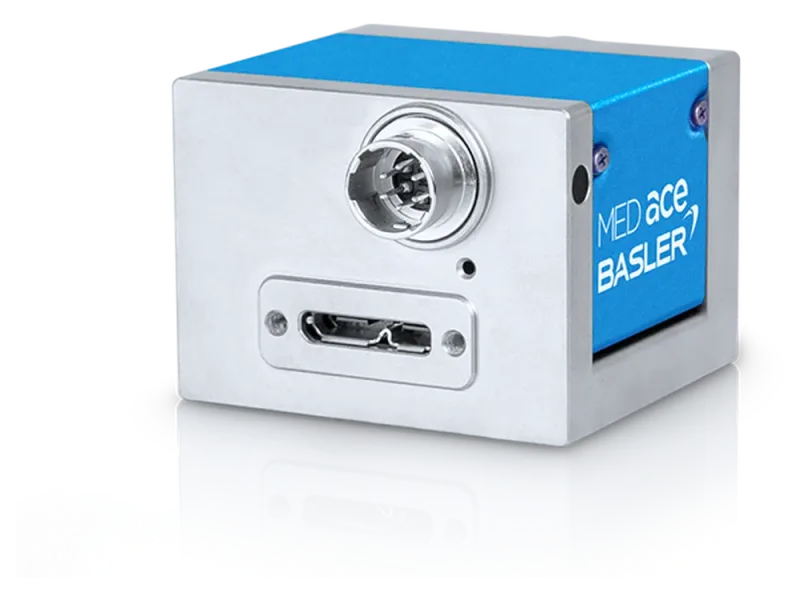

Basler MED ace
| Sensor | Sony IMX267 |
| Mono/Color | Color |
| Resolution | 9.0 MP |
| Size (H×V) | 4096 px × 2160 px |
| Interface | USB 3.0 |
| Sensor Format | 1" |
| Pixel Size | 3.45 μm × 3.45 μm |
| Frame Rate | 32 fps |
| List Price | On request |
| Camera Manufacturer | Basler |
| Product Name | MED ace 8.9 MP 32 color |
| Product Family | MED ace |
| Product Line | MED ace |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX267 |
| Shutter | Global Shutter |
| Sensor Format | 1" |
| Sensor Diagonal | 15.97 mm |
| Sensor Type | CMOS |
| Sensor Size | 14.13 mm × 7.45 mm |
| Resolution (H×V) | 4096 px × 2160 px |
| Resolution | 9.0 MP |
| Pixel Size (H×V) | 3.45 μm × 3.45 μm |
| Frame rate | 32 fps |
| Exposure Time | |
| Mono/Color | Color |
| Spectrum | Visible |
| Quantum Efficiency | 54.5 % |
| Dark Noise | 2.1 e¯ |
| Saturation Capacity | 10.3 ke¯ |
| Dynamic Range | 71.6 dB |
| Signal-to-Noise Ratio | 40.1 dB |
| Interface | USB 3.0 |
| Image Data Interface | USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) |
| Pixel Bit Depth | 10 bits 12 bits |
| Synchronization | |
| Exposure Control | hardware trigger programmable via the camera API |
| Digital Input | 1 |
| Digital Output | |
| Power Supply | Via USB 3.0 interface |
| Power Requirements | 3.2 W |
| Housing Type | Box |
| Housing Size | 35.8 mm x 40 mm x 30 mm |
| Weight | 80 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Compliances | CE (incl. RoHS) EAC FCC Class B GenICam IP30 KC RoHS UL (in preparation) USB3 Vision |
| Warranty | 3 years |
| Standards |
| Source Link | Basler MED ace 8.9 MP 32 color |
| Others |
