Show technical details of the camera.

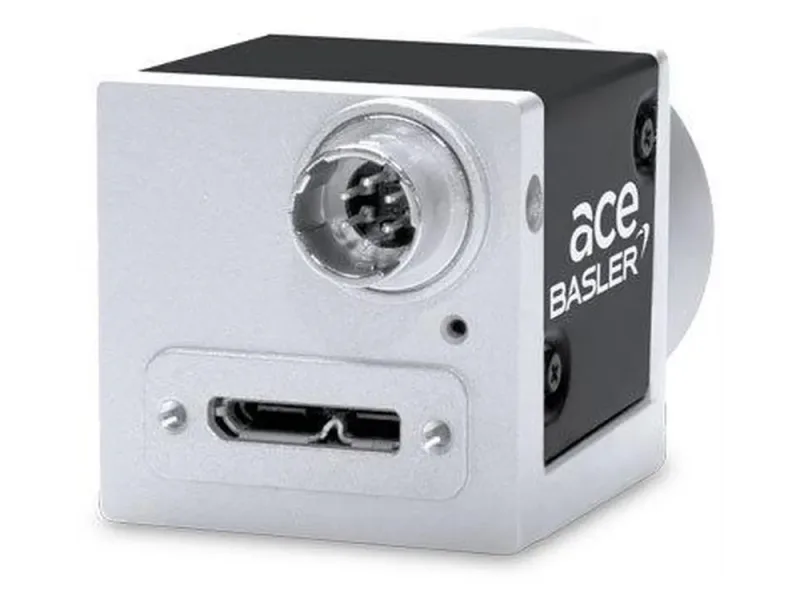

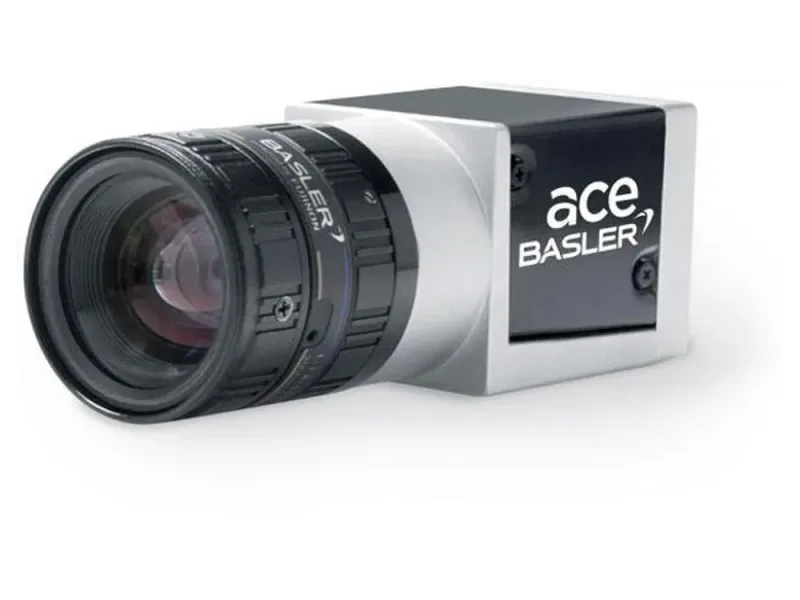

Basler ace U
| Sensor | onsemi PYTHON 500 |
| Mono/Color | Mono |
| Resolution | 0.5 MP |
| Size (H×V) | 800 px × 600 px |
| Interface | USB 3.0 |
| Sensor Format | 1/3.6" |
| Pixel Size | 4.8 μm × 4.8 μm |
| Frame Rate | 511 fps |
| List Price | €409.00 |
| Camera Manufacturer | Basler |
| Product Name | acA800-510um |
| Product Family | ace U |
| Product Line | ace U |
| Camera Category | Area Scan Camera |
| Sensor Vendor | onsemi |
| Sensor | PYTHON 500 |
| Shutter | Global Shutter |
| Sensor Format | 1/3.6" |
| Sensor Diagonal | 4.8 mm |
| Sensor Type | CMOS |
| Sensor Size | 3.84 mm × 2.88 mm |
| Resolution (H×V) | 800 px × 600 px |
| Resolution | 0.5 MP |
| Pixel Size (H×V) | 4.8 μm × 4.8 μm |
| Frame rate | 511 fps |
| Exposure Time | |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 52 % |
| Dark Noise | 10.7 e¯ |
| Saturation Capacity | 7 ke¯ |
| Dynamic Range | 56.3 dB |
| Signal-to-Noise Ratio | 38.5 dB |
| Interface | USB 3.0 |
| Image Data Interface | USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) |
| Pixel Bit Depth | 10 bits |
| Synchronization | |
| Exposure Control | hardware trigger programmable via the camera API |
| Digital Input | 1 |
| Digital Output | |
| Power Supply | Via USB 3.0 interface |
| Power Requirements | 3 W |
| Housing Type | Box |
| Housing Size | 29.3 mm x 29 mm x 29 mm |
| Weight | 80 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Compliances | CE (incl. RoHS) EAC FCC GenICam IP30 KC RoHS UL USB3 Vision |
| Warranty | 3 years |
| Standards |
| Source Link | Basler acA800-510um |
| Others |
