Show technical details of the camera.

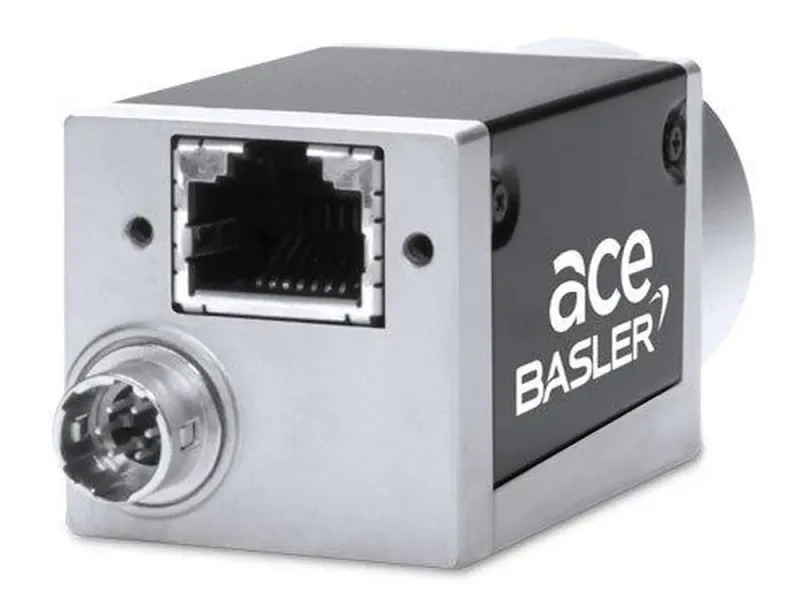

Basler ace U
| Sensor | Sony IMX265 |
| Mono/Color | Mono |
| Resolution | 3.0 MP |
| Size (H×V) | 2048 px × 1536 px |
| Interface | GigE |
| Sensor Format | 1/1.8" |
| Pixel Size | 3.45 μm × 3.45 μm |
| Frame Rate | 36 fps |
| List Price | €499.00 |
| Camera Manufacturer | Basler |
| Product Name | acA2040-35gm |
| Product Family | ace U |
| Product Line | ace U |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX265 |
| Shutter | Global Shutter |
| Sensor Format | 1/1.8" |
| Sensor Diagonal | 8.84 mm |
| Sensor Type | CMOS |
| Sensor Size | 7.07 mm × 5.3 mm |
| Resolution (H×V) | 2048 px × 1536 px |
| Resolution | 3.0 MP |
| Pixel Size (H×V) | 3.45 μm × 3.45 μm |
| Frame rate | 36 fps |
| Exposure Time | |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 68 % |
| Dark Noise | 2.3 e¯ |
| Saturation Capacity | 10.5 ke¯ |
| Dynamic Range | 73.4 dB |
| Signal-to-Noise Ratio | 40.2 dB |
| Interface | GigE |
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth | 10 bits 12 bits |
| Synchronization | |
| Exposure Control | hardware trigger programmable via the camera API |
| Digital Input | 1 |
| Digital Output | |
| Power Supply | PoE or 12-24 VDC |
| Power Requirements | 2.7 W |
| Housing Type | Box |
| Housing Size | 42 mm x 29 mm x 29 mm |
| Weight | 90 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Compliances | CE (incl. RoHS) EAC FCC GenICam GigE Vision IP30 KC RoHS UL |
| Warranty | 3 years |
| Standards |
| Source Link | Basler acA2040-35gm |
| Others |
