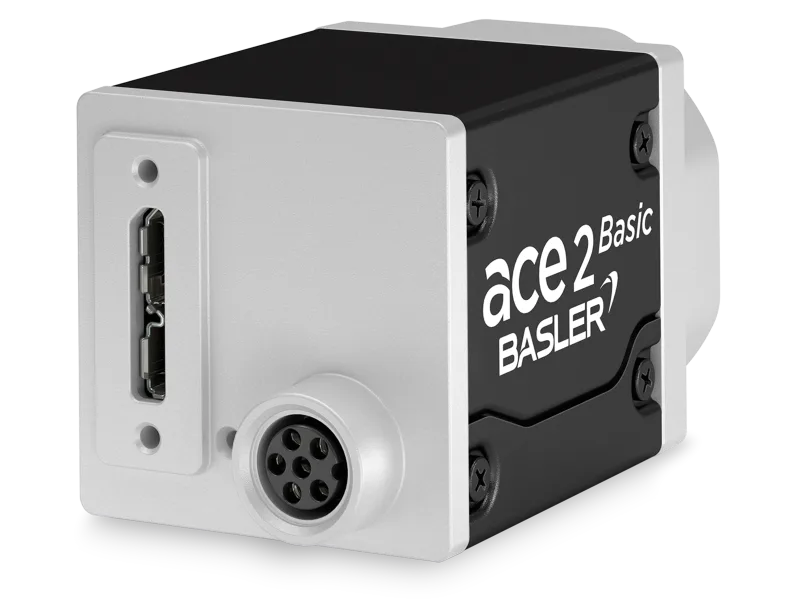

Basler ace 2 R
| Sensor | Sony IMX542 |
| Mono/Color | Color |
| Resolution | 16.1 MP |
| Size (H×V) | 5320 px × 3032 px |
| Interface | USB 3.0 |
| Sensor Format | 1.1" |
| Pixel Size | 2.74 μm × 2.74 μm |
| Frame Rate | 23 fps |
| List Price | €1,439.00 |
| Camera Manufacturer | Basler |
| Product Name | a2A5320-23ucBAS |
| Product Family | ace 2 R |
| Product Line | ace 2 R Basic |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX542 |
| Shutter | Global Shutter |
| Sensor Format | 1.1" |
| Sensor Diagonal | 16.78 mm |
| Sensor Type | CMOS |
| Sensor Size | 14.58 mm × 8.31 mm |
| Resolution (H×V) | 5320 px × 3032 px |
| Resolution | 16.1 MP |
| Pixel Size (H×V) | 2.74 μm × 2.74 μm |
| Frame rate | 23 fps |
| Exposure Time | |
| Mono/Color | Color |
| Spectrum | Visible |
| Quantum Efficiency | % |
| Dark Noise | e¯ |
| Saturation Capacity | ke¯ |
| Dynamic Range | dB |
| Signal-to-Noise Ratio | dB |
| Interface | USB 3.0 |
| Image Data Interface | USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) |
| Pixel Bit Depth | 8 bits 10 bits 12 bits |
| Synchronization | |
| Exposure Control | hardware trigger programmable via the camera API |
| Digital Input | 1 |
| Digital Output | |
| Power Supply | Via USB 3.0 interface |
| Power Requirements | 3.7 W |
| Housing Type | Box |
| Housing Size | 42.8 mm x 29 mm x 29 mm |
| Weight | 85 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C - 60 °C |
| Compliances | CE (incl. RoHS) EAC FCC GenICam IP30 KC RoHS UL USB3 Vision |
| Warranty | 3 years |
| Standards |
| Source Link | Basler a2A5320-23ucBAS |
| Others |
