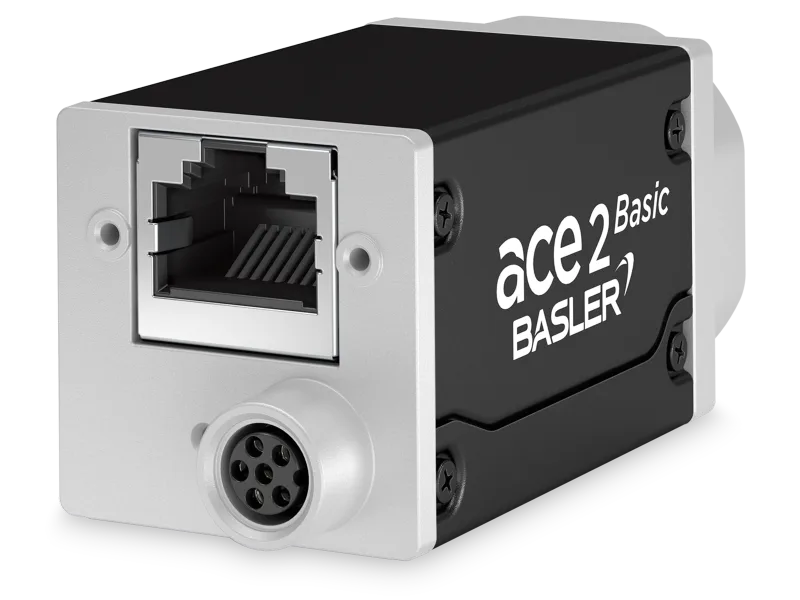

Basler ace 2 R
| Sensor | Sony IMX541 |
| Mono/Color | Mono |
| Resolution | 20.2 MP |
| Size (H×V) | 4504 px × 4504 px |
| Interface | GigE |
| Sensor Format | 1.1" |
| Pixel Size | 2.74 μm × 2.74 μm |
| Frame Rate | 5 fps |
| List Price | €1,799.00 |
| Camera Manufacturer | Basler |
| Product Name | a2A4504-5gmBAS |
| Product Family | ace 2 R |
| Product Line | ace 2 R Basic |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX541 |
| Shutter | Global Shutter |
| Sensor Format | 1.1" |
| Sensor Diagonal | 17.45 mm |
| Sensor Type | CMOS |
| Sensor Size | 12.34 mm × 12.34 mm |
| Resolution (H×V) | 4504 px × 4504 px |
| Resolution | 20.2 MP |
| Pixel Size (H×V) | 2.74 μm × 2.74 μm |
| Frame rate | 5 fps |
| Exposure Time | |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency | 66.2 % |
| Dark Noise | 2.2 e¯ |
| Saturation Capacity | 9.7 ke¯ |
| Dynamic Range | 70.9 dB |
| Signal-to-Noise Ratio | 39.9 dB |
| Interface | GigE |
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth | 8 bits 10 bits 12 bits |
| Synchronization | |
| Exposure Control | hardware trigger programmable via the camera API |
| Digital Input | 1 |
| Digital Output | |
| Power Supply | PoE or 12-24 VDC |
| Power Requirements | 3.1 W |
| Housing Type | Box |
| Housing Size | 55.5 mm x 29 mm x 29 mm |
| Weight | 100 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C - 60 °C |
| Compliances | CE (incl. RoHS) EAC FCC GenICam GigE Vision 2.0 IP30 KC RoHS UL |
| Warranty | 3 years |
| Standards |
| Source Link | Basler a2A4504-5gmBAS |
